PT-11800

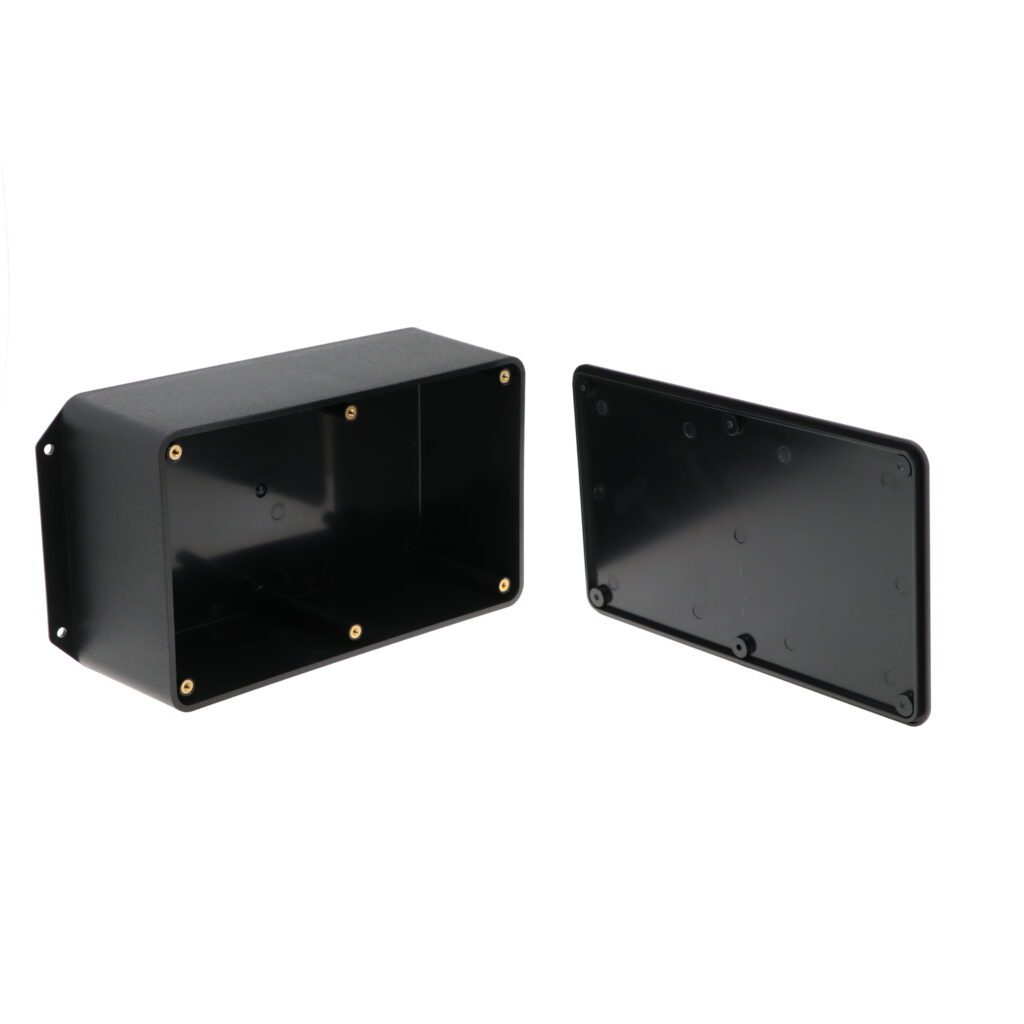

Plastibox Style J Plastic Electronic Enclosure PT-11800

Product Details

Model # PT-11800 Plastibox Style J Series Plastic Electronic Enclosure
  • Robust plastic electronic enclosure designed to meet NEMA 4X and IP65 specifications
  • Made from flame retardant black ABS plastic
  • UL94-5VA flammability rating
  • Easily removable cover screws into threaded brass inserts in base
  • (8) PCB mounting bosses in base
  • Molded in flanges allow easy wall or panel mounting without having to open enclosure
  • Finish: Textured matte black
 Check Stock / Pricing Estimate Modifications Compare Sizes and ModelsSee Accessories
External Size H x W x D: 3.15" x 5.00" x 8.25"
Internal Size H x W x D: 2.89" x 4.70" x 7.96"
Weight: 1.2 lbs
Color: Black
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-5VA
Bosses: Yes

Drawing

PT-11800 Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PT-11800 3.15" x 5.00" x 8.25" 3.155.008.25 2.89" x 4.70" x 7.96"
PT-11801 4.32" x 5.15" x 8.40" 4.325.158.40 4.06" x 4.58" x 7.83"
