ATEX Series Explosion Proof Enclosure

The ATX Series of ATEX-certified explosion-proof enclosures is a high-quality solution for environments that require ATEX certification.

These die-cast aluminum explosion-proof boxes are designed for intermittent Explosive atmospheres (excludes mining) such as Gas (Category: II, Zone: 1&2) Grain Dust and conductive dust (Category: III, Zones 21&22). The enclosures provide Equipment protection with increased safety (e) and dust protection (tb).

ATX Series is UL listed (Type 6P) and rated at IP66 per the IEC 60529 Standard.

Detailed specs

Conduit install instructions

Filter Models

Explosion Proof Aluminum Enclosure ATX-10501

ATEX Series Explosion Proof Enclosure
Model # ATX-10501
External Size L x W x D: 3.15" x 2.95" x 2.24"
Internal Size L x W x D: 2.77" x 1.85" x 1.87"

Explosion Proof Aluminum Enclosure ATX-10503

ATEX Series Explosion Proof Enclosure
Model # ATX-10503
External Size L x W x D: 3.94" x 3.94" x 3.19"
Internal Size L x W x D: 2.71" x 3.39" x 2.62"

Explosion Proof Aluminum Enclosure ATX-10505

ATEX Series Explosion Proof Enclosure
Model # ATX-10505
External Size L x W x D: 4.80" x 4.72" x 3.58"
Internal Size L x W x D: 3.31" x 4.09" x 3.21"

Explosion Proof Aluminum Enclosure ATX-10506

ATEX Series Explosion Proof Enclosure
Model # ATX-10506
External Size L x W x D: 4.92" x 3.15" x 2.24"
Internal Size L x W x D: 2.68" x 3.78" x 1.75"

Explosion Proof Aluminum Enclosure ATX-10507

ATEX Series Explosion Proof Enclosure
Model # ATX-10507
External Size L x W x D: 5.91" x 2.52" x 1.34"
Internal Size L x W x D: 2.80" x 4.17" x 1.09"

Explosion Proof Aluminum Enclosure ATX-10509

ATEX Series Explosion Proof Enclosure
Model # ATX-10509
External Size L x W x D: 6.30" x 6.30" x 3.58"
Internal Size L x W x D: 4.65" x 6.14" x 2.86"

Explosion Proof Aluminum Enclosure ATX-10510

ATEX Series Explosion Proof Enclosure
Model # ATX-10510
External Size L x W x D: 6.89" x 3.15" x 2.24"
Internal Size L x W x D: 2.68" x 6.02" x 1.75"

Explosion Proof Aluminum Enclosure ATX-10512

ATEX Series Explosion Proof Enclosure
Model # ATX-10512
External Size L x W x D: 8.66" x 4.72" x 3.58"
Internal Size L x W x D: 2.51" x 7.60" x 2.30"

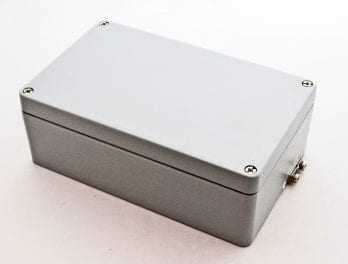

Explosion Proof Aluminum Enclosure ATX-10515

ATEX Series Explosion Proof Enclosure
Model # ATX-10515
External Size L x W x D: 10.24" x 6.30" x 3.54"
Internal Size L x W x D: 3.54" x 8.38" x 3.30"

Explosion Proof Aluminum Enclosure ATX-10519

ATEX Series Explosion Proof Enclosure
Model # ATX-10519
External Size L x W x D: 14.17" x 6.30" x 3.54"
Internal Size L x W x D: 3.47" x 12.30" x 2.87"
