Product Details

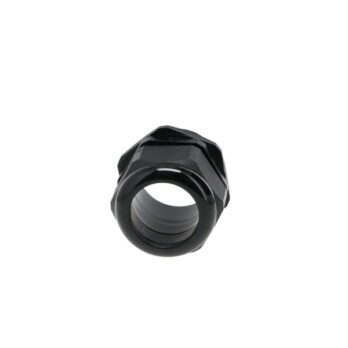

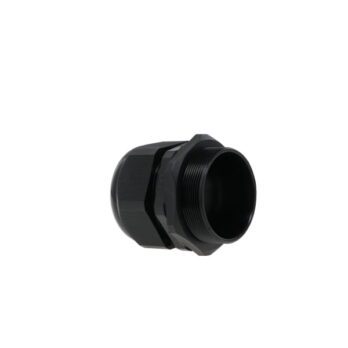

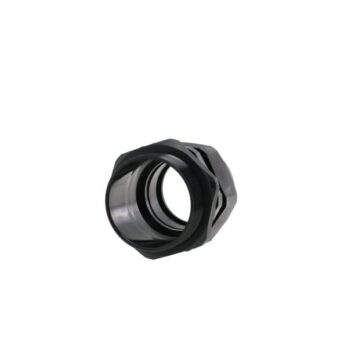

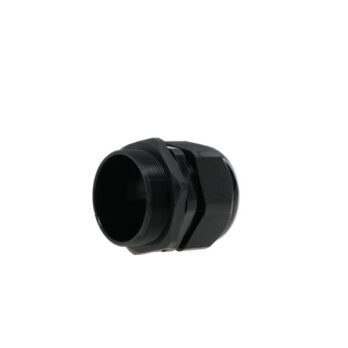

IP66 Nylon Cable Gland Thin Wall, Black PG-63, for 1.65-1.97 Inch Cables, Black IPG-22263 Model # IPG-22263

• Bud’s IP66 Nylon Cable Glands combine tested quality and great price for all NEMA applications.  See all cable glands.
• Well suited for plastic enclosures
• Standard thread length
• Impact-resistant nylon plastic with Nitrile rubber gasket, RoHs compliant
• Temperature range: Constant -20 C to 65 C, short exposure -40 C to 120 C
• Color: Black
• Wire Diameter: 1.65 to 1.97 inch
• Thread Length: 1.06 inches
• Thread Diameter: 2.76 inches
• Length: 3.37 inches
• Width: 3.52 inches
• Weight: 0.39 lb
• PG standard 63
• This model has standard thread length for thin-wall enclosures
• See versions for thick-wall enclosures
• See bend-proof versions for use with bend sensitive cables
• Drawing PDF   DXF
• See all cable glands
