IA-6161

Electronic Instrument Case IA-6161
  • Electronic Instrument Case

Product Details

Model # IA-6161 Electronic Instrument Case Series
  • Strong and stylish extruded aluminum body  with plastic front and rear bezels
  • Removable front and rear panels with protective film allow for easy scratch free machining

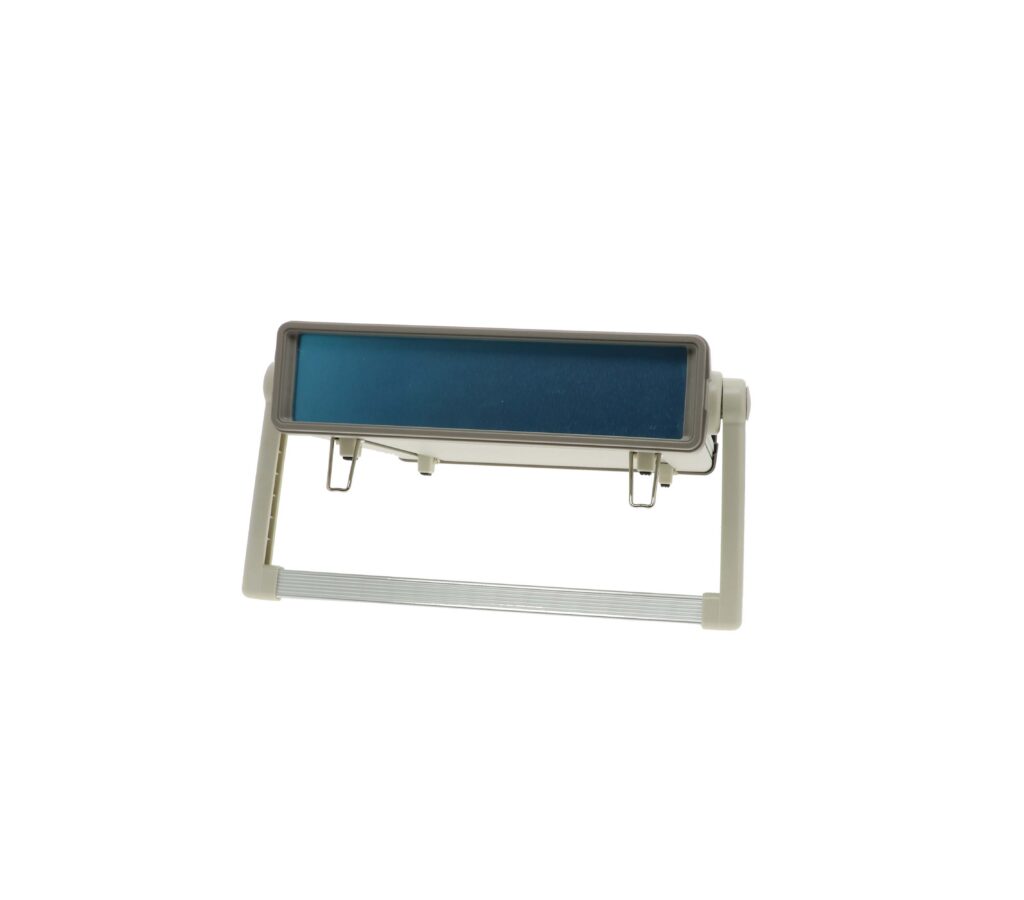

  • Adjustable locking aluminum and plastic handle allows for multi-positional carrying and bench top use
  • Extruded internal grooves for horizontal mounting of circuit board, chassis, or panel
  • Four scuff resistant antiskid feet; front feet feature foldable bails
Compare Sizes and Models Check Stock / Pricing
External Size L x W x D: 10.16" x 2.72" x 12.93"
Internal Size L x W x D: 8.89" x 2.03" x 12.00"
Weight: 4.7 lbs
Color: Earthtone Powder Coated/Light Brown Bezels
hb6161.pdf hb6161.dxf

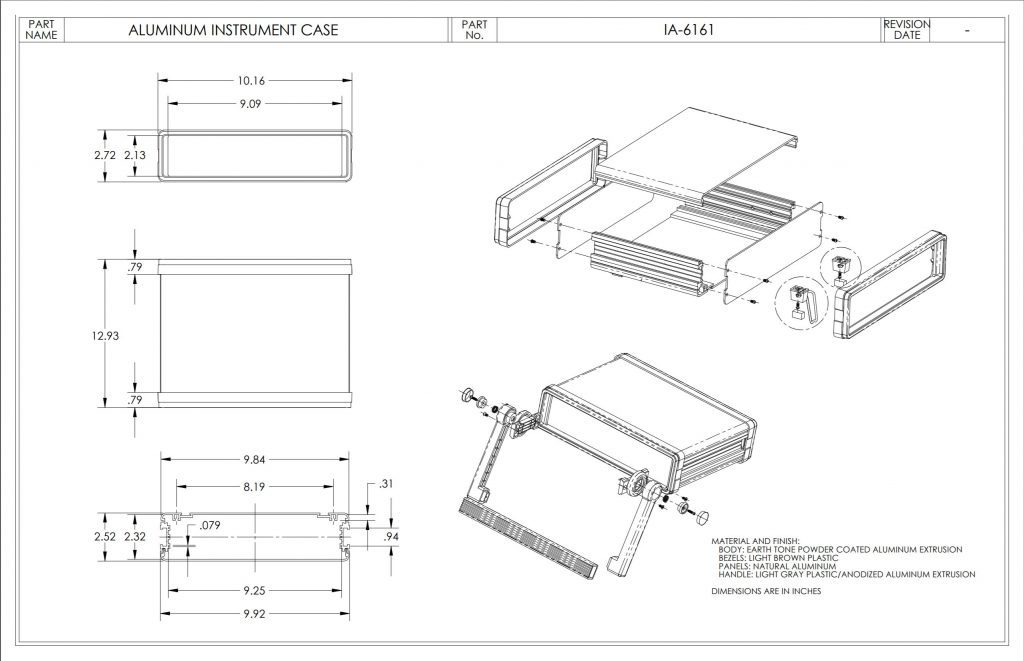

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
IA-6161 10.16" x 2.72" x 12.93" 10.162.7212.93 8.89" x 2.03" x 12.00"
IA-6163 10.16" x 4.02" x 12.93" 10.164.0212.93 8.89" x 3.37" x 12.00"
IA-6160 8.27" x 2.72" x 12.93" 8.272.7212.93 7.00" x 2.03" x 12.00"
IA-6162 8.27" x 4.92" x 12.93" 8.274.9212.93 7.00" x 4.24" x 12.00"
