HH-3420

Grabber Style B Plastic Box HH-3420

Product Details

Model # HH-3420 Grabber Style B Series Plastic Box

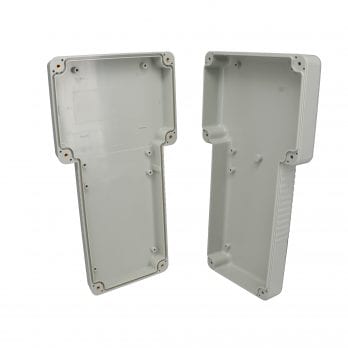

Style B is a T-shaped enclosure. The hand-held plastic box is made out of ABS plastic in a light gray finish, with UL94-HB flammability rating. It is available with optional gasket, tilt stand, and belt clip.

Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 9.33" x 5.16" x 1.71"
Internal Size L x W x D: 8.99" x 4.82" x 1.46"
Weight: 0.58 lbs
Color: Light Gray
Type of Plastic: ABS
Flammability Rating: UL94-HB
Recessed Top: With Recessed Top
Battery Compartment: Without Battery Compartment
Bosses: Yes
LCD Cutout: No
Options: Belt Clip, Tilt Stand, Gasket

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Battery Compartment LCD Cutout
HH-3420 9.33" x 5.16" x 1.71" 9.335.161.71 8.99" x 4.82" x 1.46" Without Battery Compartment No
HH-3420-BC 9.33" x 5.16" x 1.71" 9.335.161.71 8.99" x 4.82" x 1.46" With Battery Compartment No
HH-3421 9.33" x 5.16" x 1.71" 9.335.161.71 8.99" x 4.82" x 1.46" Without Battery Compartment Yes
HH-3421-BC 9.33" x 5.16" x 1.71" 9.335.161.71 8.99" x 4.82" x 1.46" With Battery Compartment Yes
