HH-3421-BC

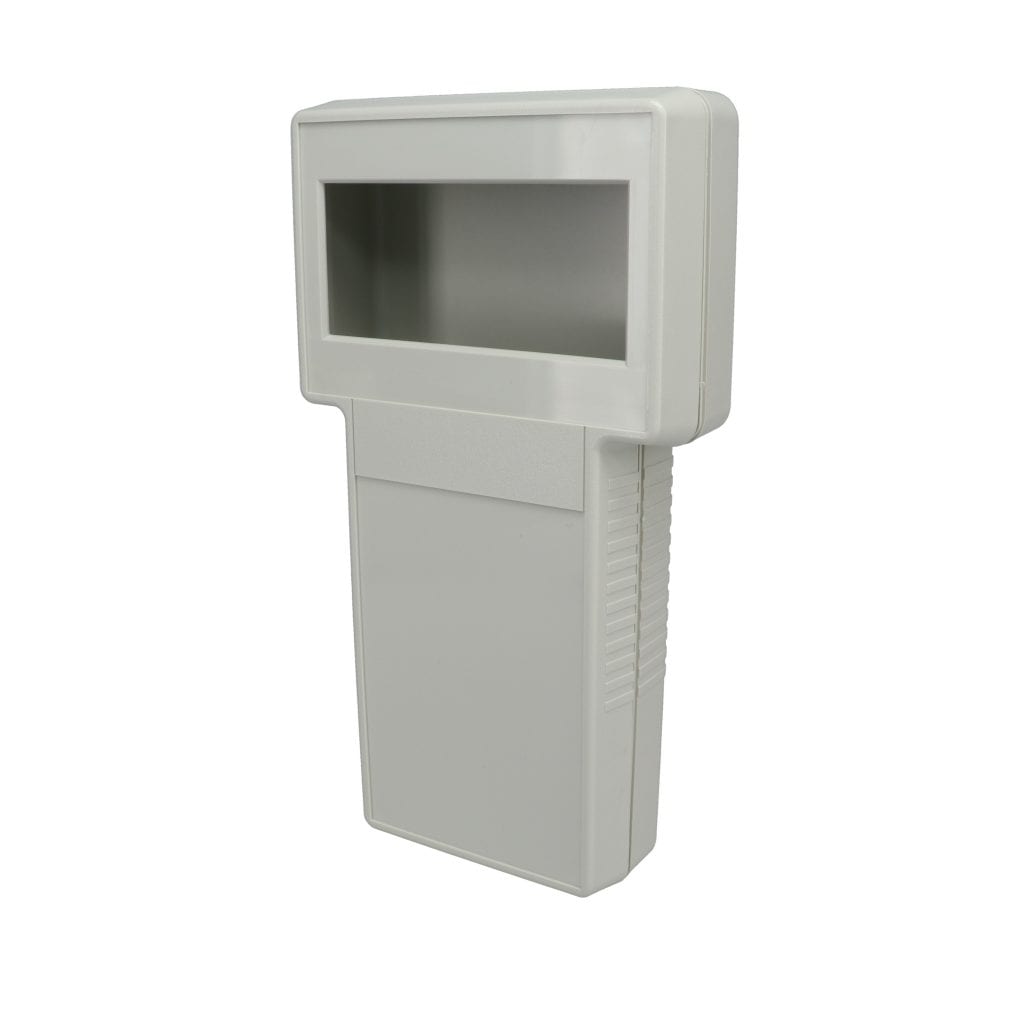

Grabber Style B Plastic Box with LCD Cutout and Battery Compartment HH-3421-BC

Product Details

Model # HH-3421-BC Grabber Style B Series Plastic Box

Style B is a T-shaped enclosure that is available with 4.00″ x 1.75″ LCD cutout in the display area, and with a 9-volt/AA battery compartment. The hand-held plastic box is made out of ABS plastic in a light gray finish, with UL94-HB flammability rating. It is available with optional sealing gasket, tilt stand, AA battery contact kit, and belt clip.

Check Stock / Pricing Estimate Modifications Compare Sizes and ModelsSee Accessories
External Size L x W x D: 9.33" x 5.16" x 1.71"
Internal Size L x W x D: 8.99" x 4.82" x 1.46"
Weight: 0.58 lbs
Color: Light Gray
Type of Plastic: ABS
Flammability Rating: UL94-HB
Recessed Top: With Recessed Top
Battery Compartment: With Battery Compartment
Bosses: Yes
LCD Cutout: Yes
Options: Belt Clip, Tilt Stand, Gasket, Battery Kit

Drawing

Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Battery Compartment LCD Cutout
HH-3420 9.33" x 5.16" x 1.71" 9.335.161.71 8.99" x 4.82" x 1.46" Without Battery Compartment No
HH-3420-BC 9.33" x 5.16" x 1.71" 9.335.161.71 8.99" x 4.82" x 1.46" With Battery Compartment No
HH-3421 9.33" x 5.16" x 1.71" 9.335.161.71 8.99" x 4.82" x 1.46" Without Battery Compartment Yes
HH-3421-BC 9.33" x 5.16" x 1.71" 9.335.161.71 8.99" x 4.82" x 1.46" With Battery Compartment Yes
