Name: Grabber Style F Plastic Box Two Buttons HH-3492
Brand: Bud Industries
Availability: InStock

Grabber Style F Plastic Box Two Buttons HH-3492

Model # HH-3492 Grabber Style F Series Plastic Box

Style F is a pocket-sized enclosure with a molded-in ring suitable for key ring applications, and integrated electrically conductive push buttons. Enclosure body is ABS plastic in a black finish with UL 94-HB flammability rating. Buttons are gray silicon rubber. Other button configurations available upon request. Buttons can be configured vertically or horizontally at assembly. The hand-held plastic box is available with optional tilt stand, AA battery contact kit, and belt clip.

Check Stock / Pricing Estimate Modifications Compare Sizes and Models

External Size L x W x D: 2.24" x 1.37" x 0.40"

Internal Size L x W x D: 1.69" x 1.06" x 0.23"

Weight: 0.02 lbs

Color: Black

Type of Plastic: ABS

Flammability Rating: UL94-HB

Bosses: Yes

Number of Pushbuttons: 2

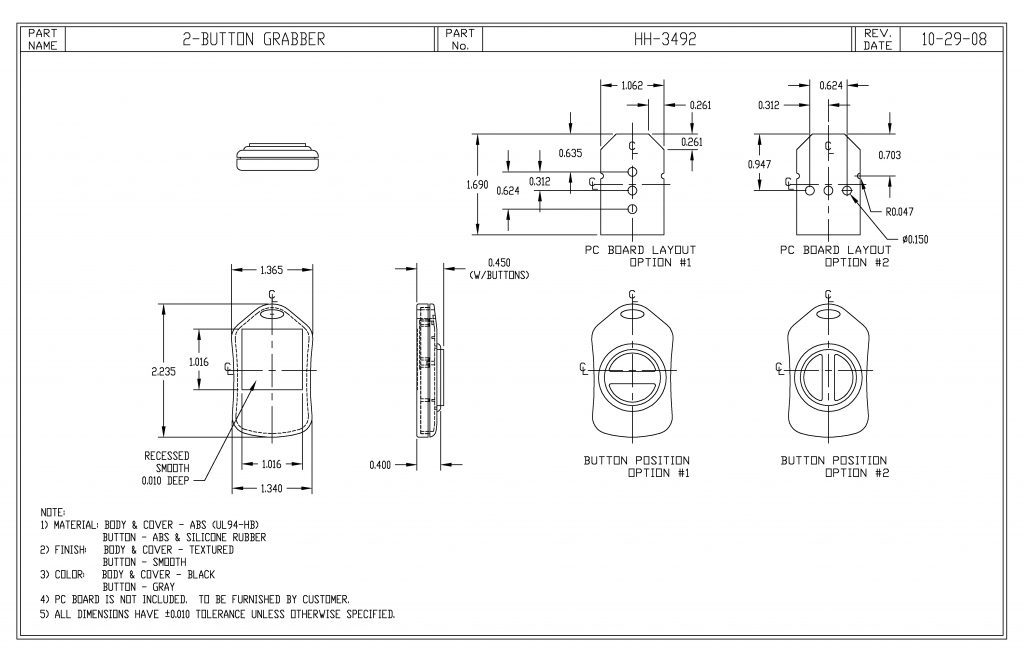

Drawing

Email me the STEP file

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions	Number of Pushbuttons
HH-3492	2.24" x 1.37" x 0.40" 2.241.370.40	1.69" x 1.06" x 0.23"	2
HH-3494	2.24" x 1.37" x 0.40" 2.241.370.40	1.69" x 1.06" x 0.23"	4
