HH-3497-BCB

Grabber Style G Plastic Box with Battery Compartment Black HH-3497-BCB
  • Grabber Style G Series Plastic Box

Product Details

Model # HH-3497-BCB Grabber Style G Series Plastic Box

Style G is a T-shaped enclosure that is more aesthetically pleasing and ergonomically designed than many other T-shaped enclosures. Available with a 9-volt/AA battery compartment. It is made out of ABS plastic in a black (-B) finish, with a UL94-HB flammability rating. Comes complete with wall mounting plate/tilt stand. The hand-held plastic box is available with optional AA battery contact kit, and belt clip.

Compare Sizes and Models See Accessories Check Stock / Pricing
External Size L x W x D: 8.27" x 4.33" x 1.57"
Internal Size L x W x D: 7.59" x 2.59" x 1.31"
Weight: 0.49 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-HB
Recessed Top: With Recessed Top
Battery Compartment: With Battery Compartment
Bosses: Yes
LCD Cutout: No
Options: Belt Clip
hb3497bc.pdf hb3497bc.dxf

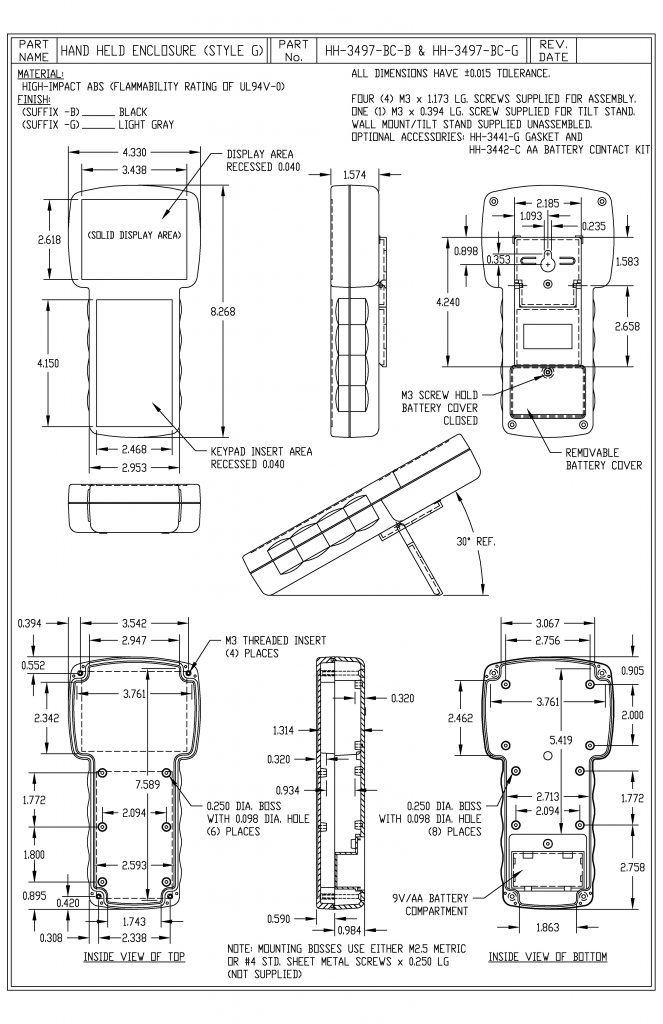

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Battery Compartment LCD Cutout
HH-3496-B 8.27" x 4.33" x 1.57" 8.274.331.57 7.59" x 2.59" x 1.31" Without Battery Compartment No
HH-3496-G 8.27" x 4.33" x 1.57" 8.274.331.57 7.59" x 2.59" x 1.31" Without Battery Compartment No
HH-3497-BCB 8.27" x 4.33" x 1.57" 8.274.331.57 7.59" x 2.59" x 1.31" With Battery Compartment No
HH-3497-BCG 8.27" x 4.33" x 1.57" 8.274.331.57 7.59" x 2.59" x 1.31" With Battery Compartment No
HH-3498-B 8.27" x 4.33" x 1.57" 8.274.331.57 7.59" x 2.59" x 1.31" Without Battery Compartment Yes
HH-3498-G 8.27" x 4.33" x 1.57" 8.274.331.57 7.59" x 2.59" x 1.31" Without Battery Compartment Yes
HH-3499-BCB 8.27" x 4.33" x 1.57" 8.274.331.57 7.59" x 2.59" x 1.31" With Battery Compartment Yes
HH-3499-BCG 8.27" x 4.33" x 1.57" 8.274.331.57 7.59" x 2.59" x 1.31" With Battery Compartment Yes
