HP-3649-B

Hand-Held Plastic Box Style 1 HP-3649-B
  • Hand-Held Plastic Box Style 1

Product Details

Model # HP-3649-B Hand-Held Plastic Box Style 1
  • Compact, ergonomic design.
  • Made from durable ABS plastic with UL94-HB flammability rating in black color.
  • Internal PCB mounting bosses.
  • Complete with top cover, bottom cover, and assembly hardware.
  • Recessed top suitable for label or keypad.
  • Molded-in holes for HH-3595-BCB belt clip.
  • The hand-held plastic box is available with optional tilt stand, AA battery contact kit, battery holder, and belt clip.
 Check Stock / Pricing Estimate Modifications Compare Sizes and ModelsSee Accessories
External Size L x W x D: 2.56" x 2.56" x 1.06"
Internal Size L x W x D: 2.36" x 2.36" x 0.87"
Weight: 0.09 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-HB
Recessed Top: With Recessed Top
Bosses: Yes
Options: Belt Clip, Tilt Stand, Battery Holder, Battery Kit

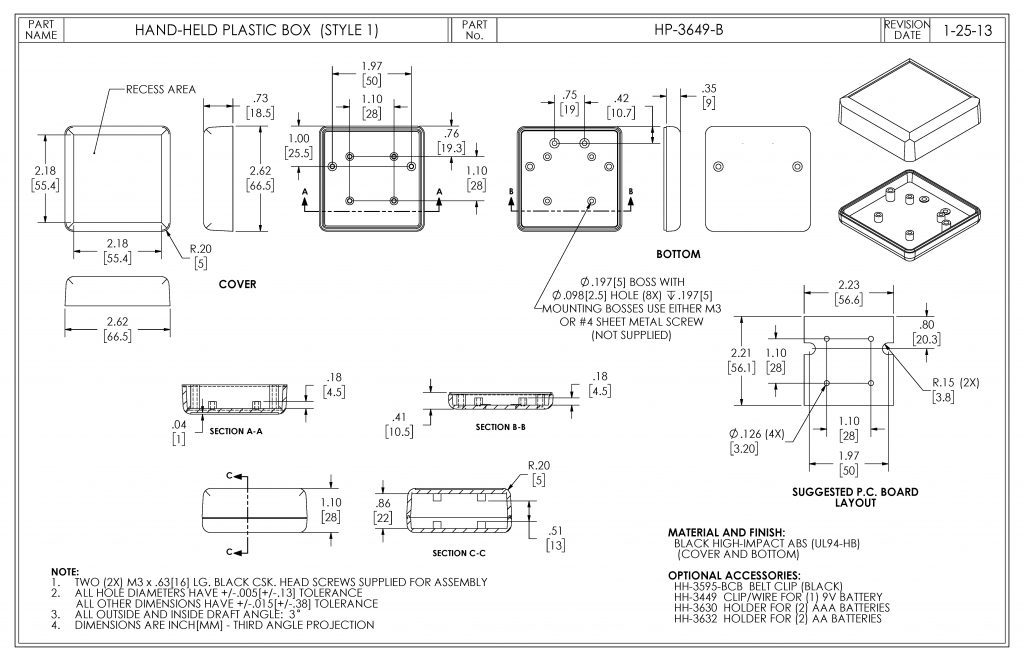

Drawing

HP-3649-B Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
HP-3649-B 2.56" x 2.56" x 1.06" 2.562.561.06 2.36" x 2.36" x 0.87"
