Plastibox Style A Gray PT-11388-G

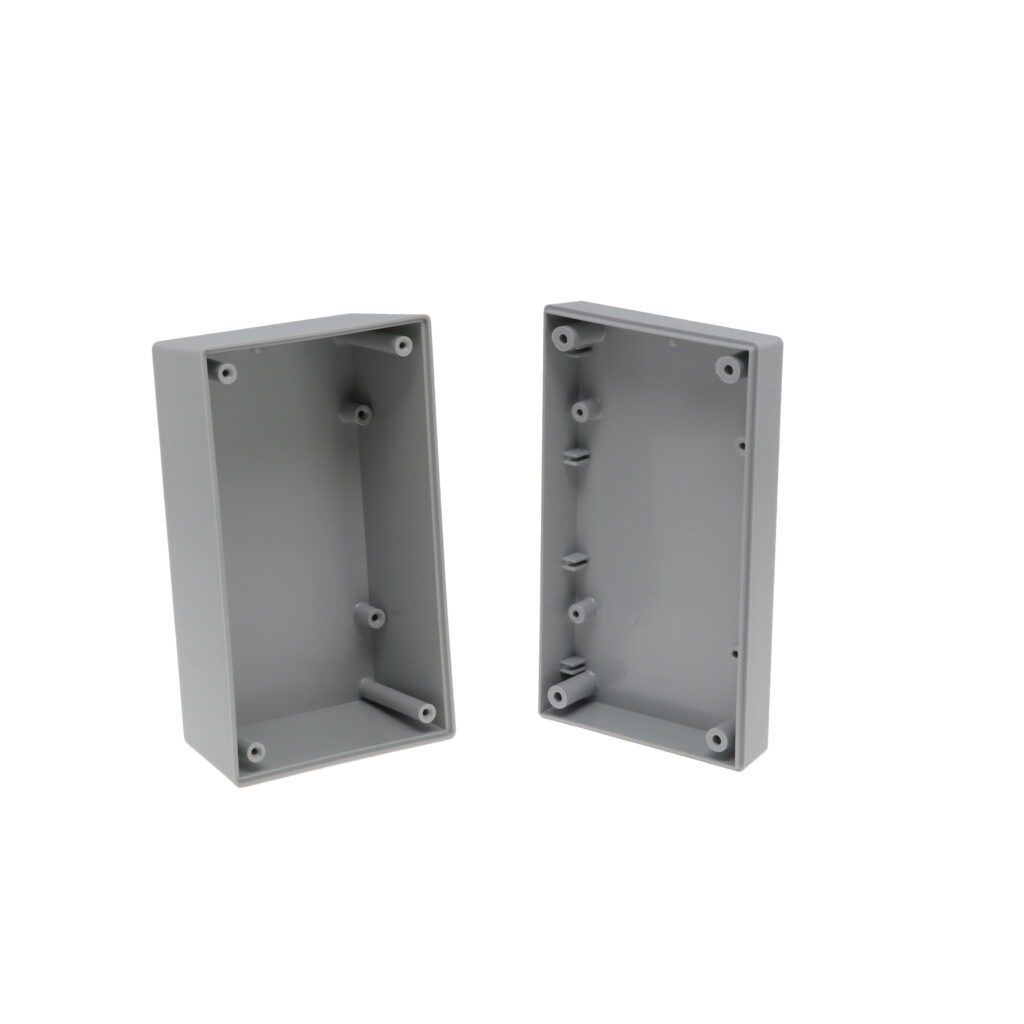

Model # PT-11388-G Plastibox Style A Series Plastic Electronic Enclosure

Style A has squared corners
Provisions for mounting horizontal and vertical PCBs
Four non-skid feet
ABS plastic
UL94-HB flammability rating
Suggested service temperature -40 C to + 60 C
Textured body with textured top

Check Stock / Pricing Estimate Modifications Compare Sizes and Models

External Size H x W x D: 2.48" x 3.25" x 5.63"

Internal Size H x W x D: 2.28" x 2.94" x 5.32"

Weight: -2.6875 lbs

Color: Light Gray

RoHS Certified: Always Compliant

Type of Plastic: ABS

Flammability Rating: UL94-HB

Service Temperature Low: -40

Service Temperature High: 60

Bosses: Yes

Drawing

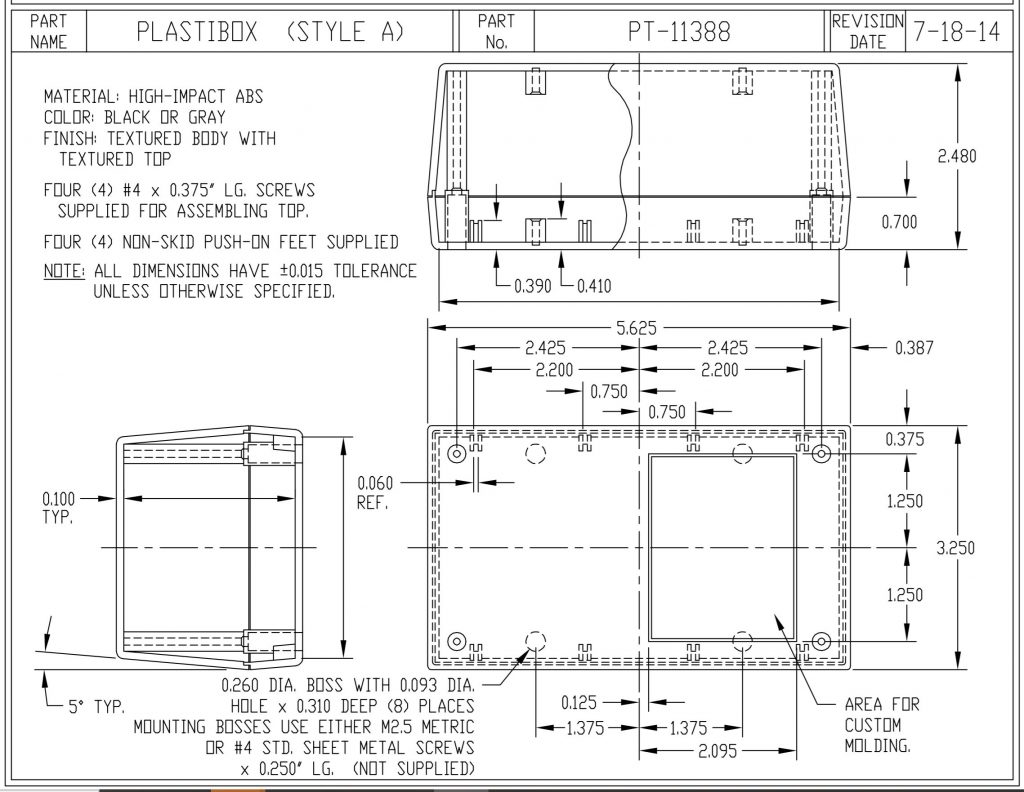

PT-11388-G Dimensions

Email me the STEP file

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
PT-11308-B	1.50" x 2.25" x 3.63" 1.502.253.63	1.30" x 1.94" x 3.32"
PT-11308-G	1.50" x 2.25" x 3.63" 1.502.253.63	1.30" x 1.94" x 3.32"
PS-11339-B	1.50" x 6.34" x 9.50" 1.506.349.50	1.30" x 6.03" x 9.14"
PS-11339-G	1.50" x 6.34" x 9.50" 1.506.349.50	1.30" x 6.03" x 9.14"
PT-11388-B	2.48" x 3.25" x 5.63" 2.483.255.63	2.28" x 2.94" x 5.32"
PT-11388-G	2.48" x 3.25" x 5.63" 2.483.255.63	2.28" x 2.94" x 5.32"
PT-11372-B	2.50" x 2.25" x 3.60" 2.502.253.60	2.30" x 1.94" x 3.29"
PT-11372-G	2.50" x 2.25" x 3.60" 2.502.253.60	2.30" x 1.94" x 3.29"
PBS-11327-B	5.63" x 3.25" x 1.50" 5.633.251.50	5.32" x 2.94" x 1.30"
PBS-11327-G	5.63" x 3.25" x 1.50" 5.633.251.50	5.32" x 2.94" x 1.30"
