PT-11308-B

Plastibox Style A Black PT-11308-B

Product Details

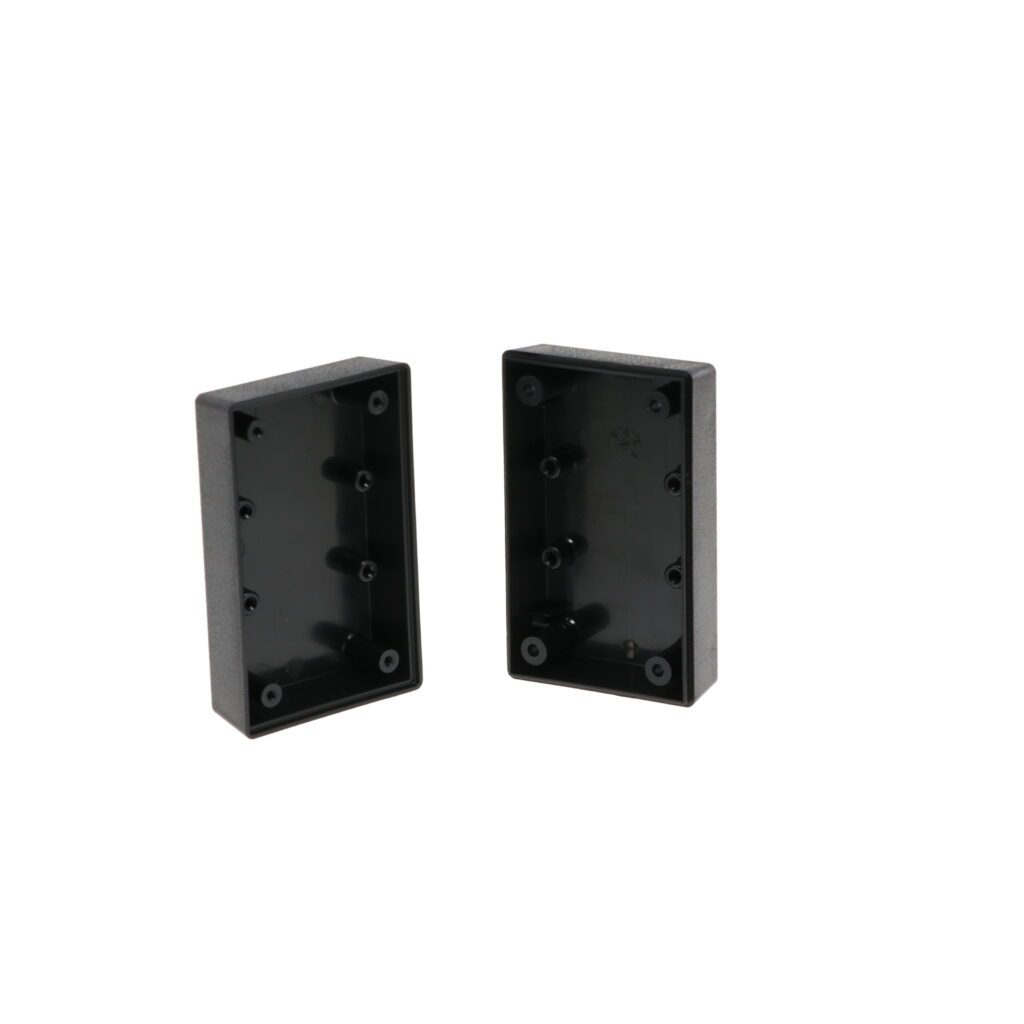

Model # PT-11308-B Plastibox Style A Series Plastic Electronic Enclosure
  • Style A has squared corners
  • Provisions for mounting horizontal and vertical PCBs
  • Four non-skid feet
  • ABS plastic
  • Black textured body and top
  • UL94-HB flammability rating
  • Suggested service temperature -40 C to + 60 C
Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size H x W x D: 1.50" x 2.25" x 3.63"
Internal Size H x W x D: 1.30" x 1.94" x 3.32"
Weight: 0.16 lbs
Color: Black Textured Powder Coated
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-HB
Service Temperature Low: -40
Service Temperature High: 60
Bosses: Yes

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PT-11308-B 1.50" x 2.25" x 3.63" 1.502.253.63 1.30" x 1.94" x 3.32"
PT-11308-G 1.50" x 2.25" x 3.63" 1.502.253.63 1.30" x 1.94" x 3.32"
PS-11339-B 1.50" x 6.34" x 9.50" 1.506.349.50 1.30" x 6.03" x 9.14"
PS-11339-G 1.50" x 6.34" x 9.50" 1.506.349.50 1.30" x 6.03" x 9.14"
PT-11388-B 2.48" x 3.25" x 5.63" 2.483.255.63 2.28" x 2.94" x 5.32"
PT-11388-G 2.48" x 3.25" x 5.63" 2.483.255.63 2.28" x 2.94" x 5.32"
PT-11372-B 2.50" x 2.25" x 3.60" 2.502.253.60 2.30" x 1.94" x 3.29"
PT-11372-G 2.50" x 2.25" x 3.60" 2.502.253.60 2.30" x 1.94" x 3.29"
PBS-11327-B 5.63" x 3.25" x 1.50" 5.633.251.50 5.32" x 2.94" x 1.30"
PBS-11327-G 5.63" x 3.25" x 1.50" 5.633.251.50 5.32" x 2.94" x 1.30"
