PBS-11275

Plastibox Style D Series Plastic Electronic Enclosure with Battery Compartment PBS-11275

Product Details

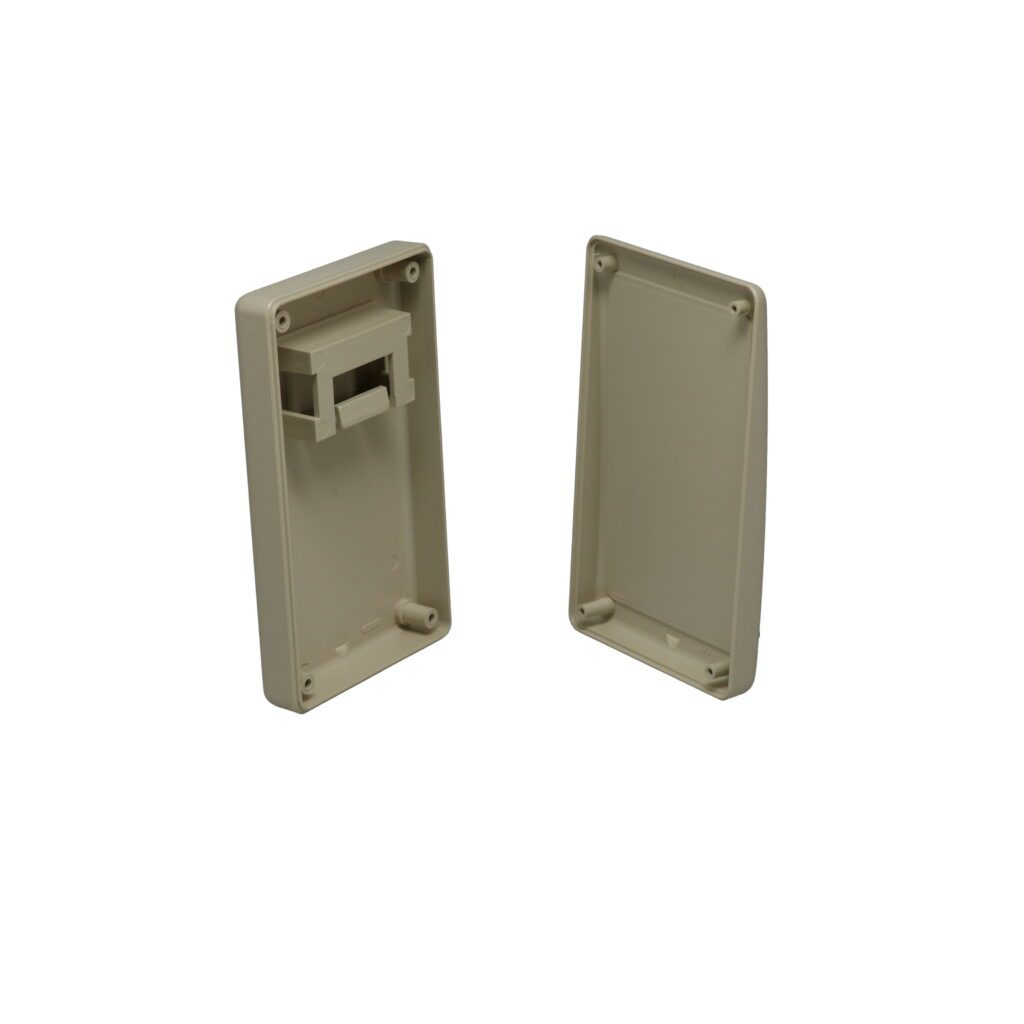

Model # PBS-11275 Plastibox Style D Series Plastic Electronic Enclosure
  • Rounded corners and edges
  • Four non-skid feet
  • Interior is plain with no molded-in PCB mounting allowing for more usable space
  • Optional universal mounting boss kit available
  • Polystyrene plastic
  • UL94-HB flammability rating
  • Textured body with smooth top insert and 9-volt battery compartment
Compare Sizes and Models See Accessories Check Stock / Pricing
External Size H x W x D: 6.30" x 3.75" x 1.41"
Internal Size H x W x D: 6.08" x 3.53" x 1.14"
Weight: 0.31 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Type of Plastic: Polystyrene
Flammability Rating: UL94-HB
Battery Compartment: With Battery Compartment
hb11274.pdf hb11274.dxf

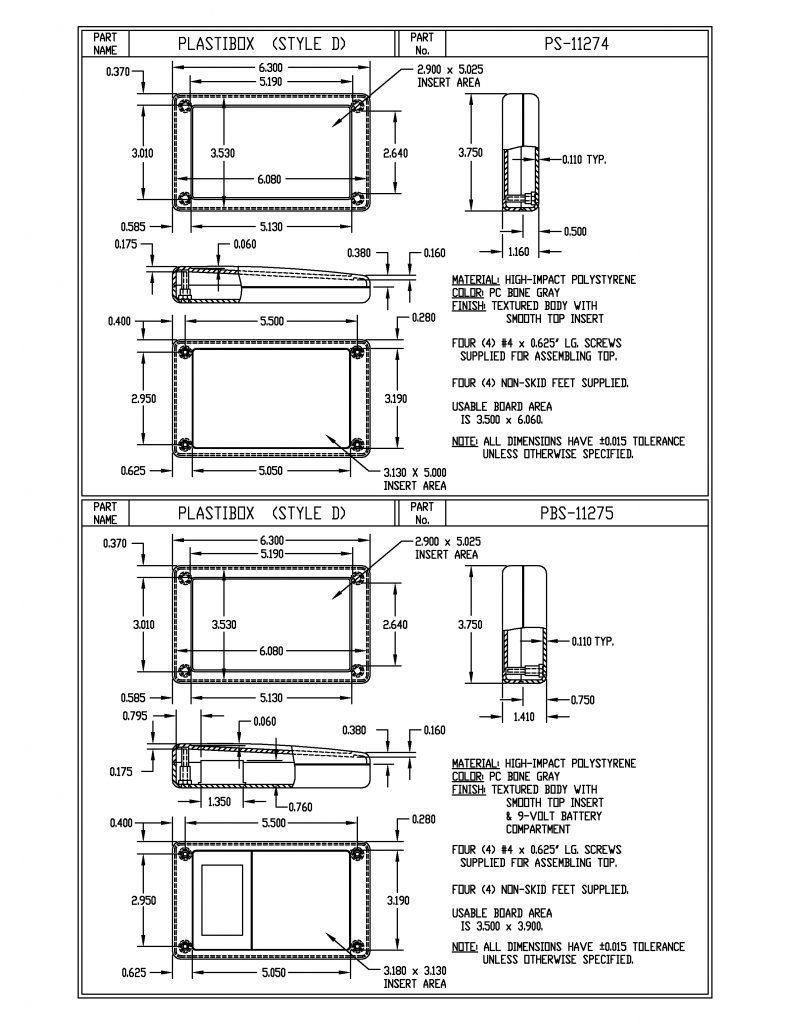

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PS-11279 1.41" x 3.75" x 6.30" 1.413.756.30 1.14" x 3.53" x 6.08"
PBS-11275 6.30" x 3.75" x 1.41" 6.303.751.41 6.08" x 3.53" x 1.14"
