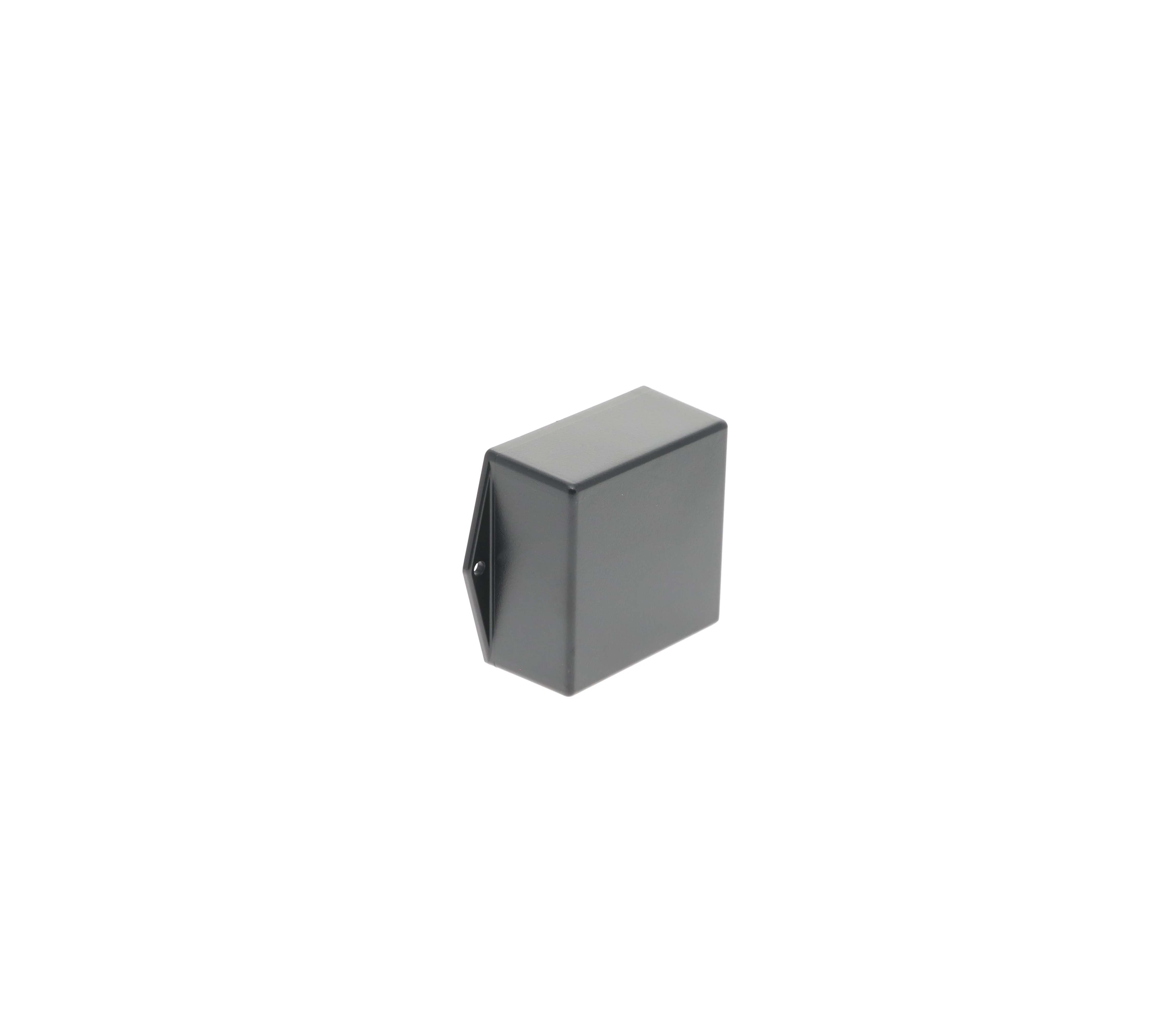

Potting Box Style B Plastic Box with Mounting Flanges PB-1576-TF

Model # PB-1576-TF Potting Box Style B Series

These low cost enclosures are made of tough, lightweight ABS thermoplastic.
Flammability rating: UL94V-0 at .07 inches
Suggested service temperature -20C to +70

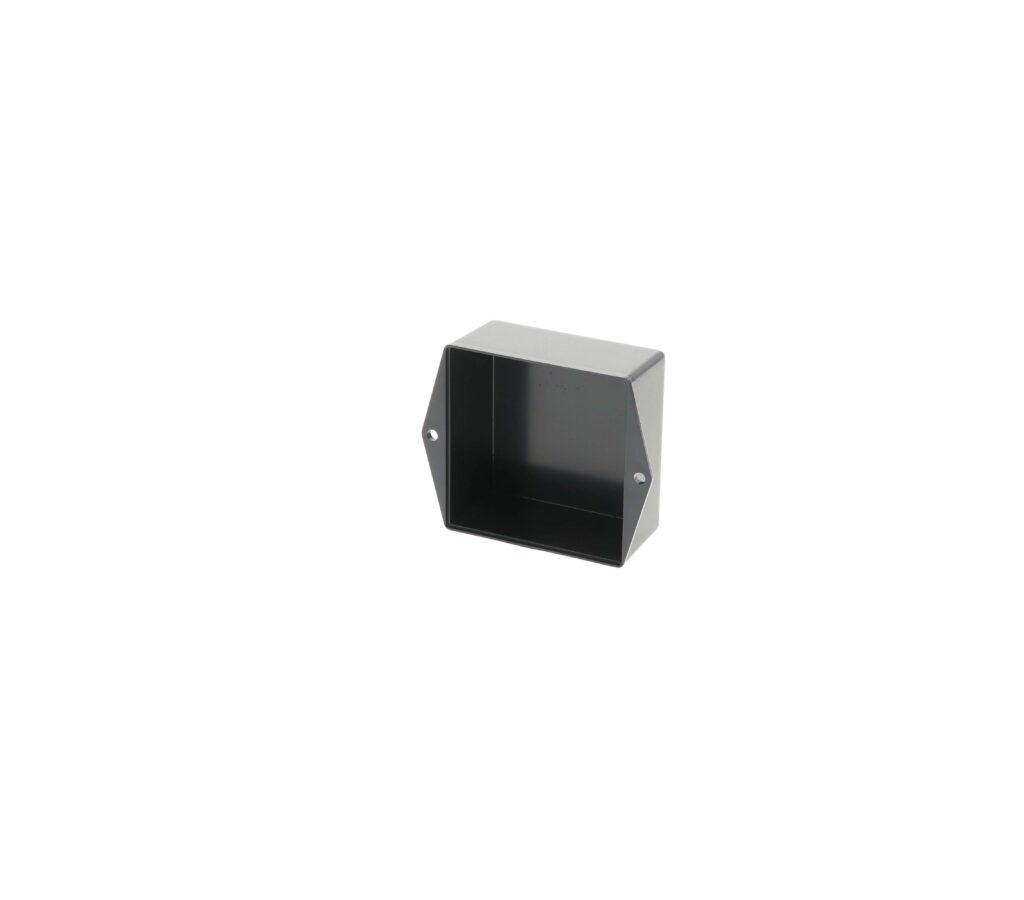

Mounting flanges are at the opening
Optional close-fitting covers are available in all sizes
Finish: Black
Textured finish body

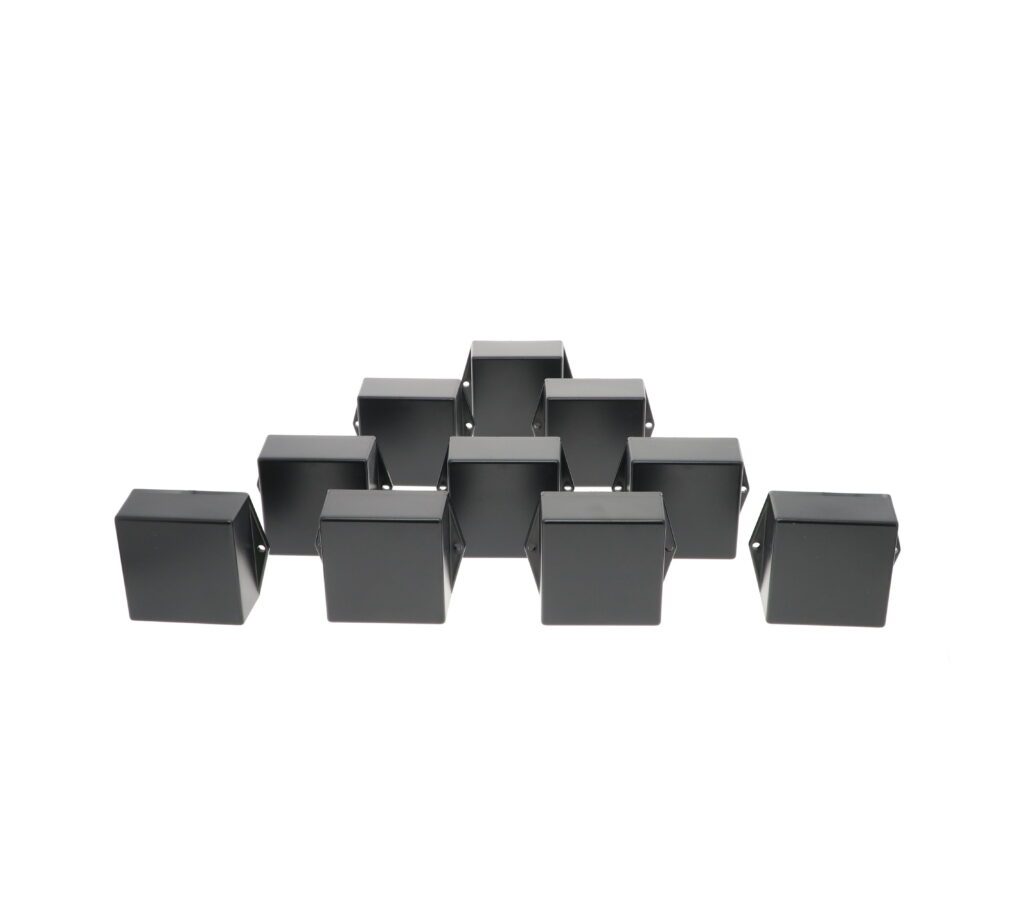

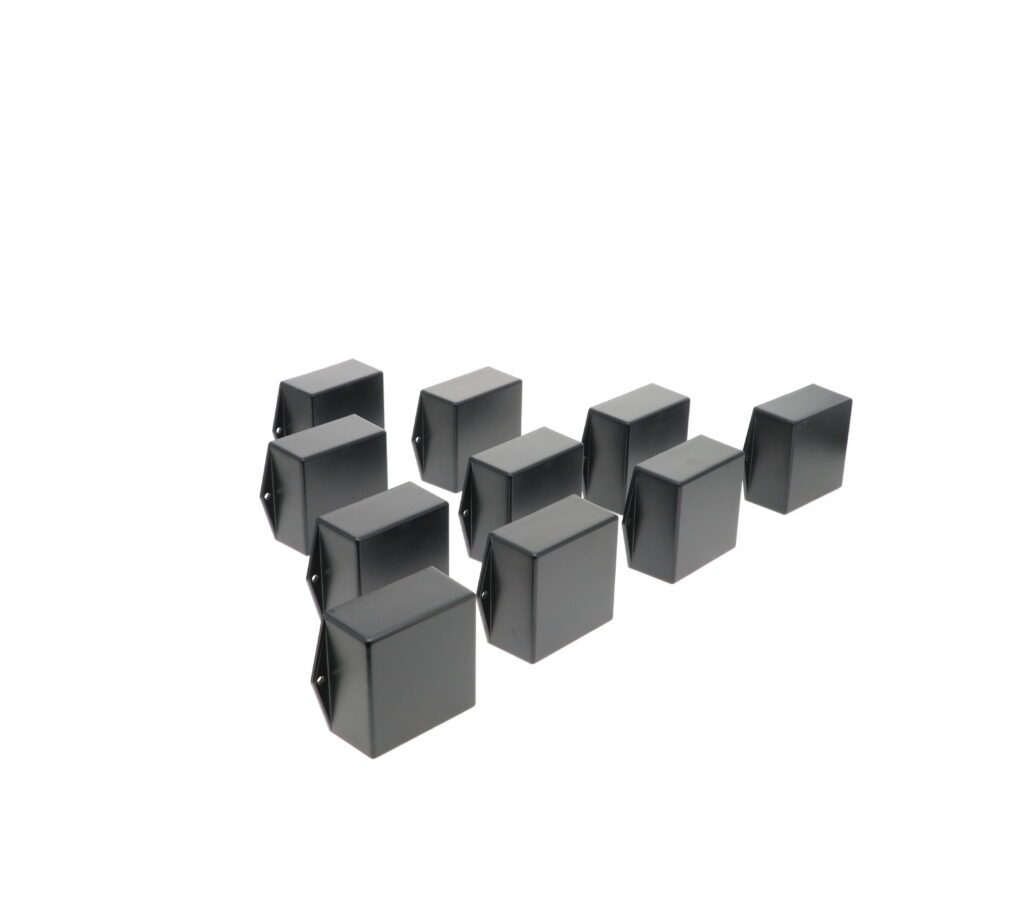

Shipped in packages of 10 pieces per catalog number

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 3.00" x 3.00" x 1.50"

Internal Size L x W x D: 2.86" x 2.86" x 1.36"

Weight: 0.94 lbs

Color: Black

RoHS Certified: Always Compliant

Type of Plastic: ABS

Flammability Rating: UL94-V0

Service Temperature Low: -20

Service Temperature High: 70

Bosses: Yes

Mounting Style: Mounting Flanges

Drawing

PB-1576-TF Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
PB-1577-TF	1.00" x 1.00" x 0.75" 1.001.000.75	0.90" x 0.90" x 0.65"
PB-1579-TF	1.50" x 1.25" x 0.80" 1.501.250.80	1.36" x 1.11" x 0.66"
PB-1558-TF	2.00" x 1.50" x 1.00" 2.001.501.00	1.86" x 1.36" x 0.93"
PB-1574-TF	2.00" x 2.00" x 1.50" 2.002.001.50	1.86" x 1.86" x 1.36"
PB-1581-TF	2.09" x 1.25" x 0.44" 2.091.250.44	1.94" x 1.14" x 0.31"
PB-1575-TF	3.00" x 2.00" x 0.90" 3.002.000.90	2.89" x 1.89" x 0.76"
PB-1559-TF	3.00" x 2.00" x 1.50" 3.002.001.50	2.86" x 1.86" x 1.43"
PB-1576-TF	3.00" x 3.00" x 1.50" 3.003.001.50	2.86" x 2.86" x 1.36"
PB-1580-TF	4.00" x 1.75" x 1.00" 4.001.751.00	3.86" x 1.61" x 0.86"
PB-1582-TF	4.00" x 2.12" x 0.90" 4.002.120.90	3.92" x 2.05" x 0.76"
PB-1578-TF	4.00" x 2.12" x 2.00" 4.002.122.00	3.86" x 1.99" x 1.86"
PB-1583-TF	4.37" x 3.12" x 2.00" 4.373.122.00	3.97" x 2.99" x 1.86"
