CU-1937-MB

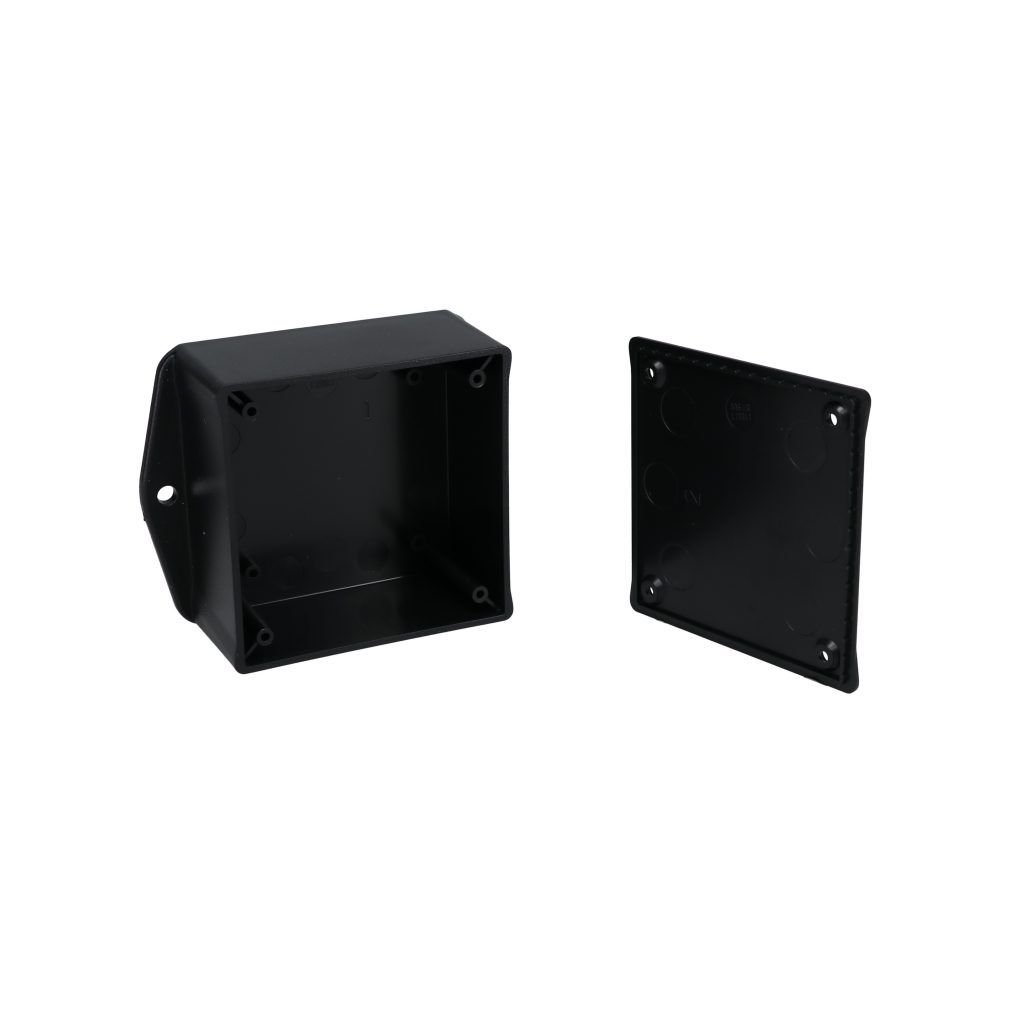

Utilibox Style L Plastic Utility Box CU-1937-MB

Product Details

Model # CU-1937-MB Utilibox Style L Series Utility Boxes
  • Flame retardant ABS plastic with UL 94V-O flammability rating
  • Suggested service temperature -20 degrees C to +70 degrees C
  • Comes with close fitting interlocking screw-on and assembly hardware
  • Horizontal PCB mounting bosses
  • Textured finish
  • Molded-in mounting flange
  • Finish: Fine Textured Black — well suited for silk-screening or pad printing
  • Special colors available on request
Compare Sizes and Models Check Stock / Pricing
External Size L x W x D: 3.11" x 3.13" x 1.56"
Internal Size L x W x D: 2.90" x 2.90" x 1.40"
Weight: 0.13 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-V0
Service Temperature Low: -20
Service Temperature High: 70
Bosses: Yes
Mounting Style: Mounting Flanges
hb1937.pdf hb1937.dxf

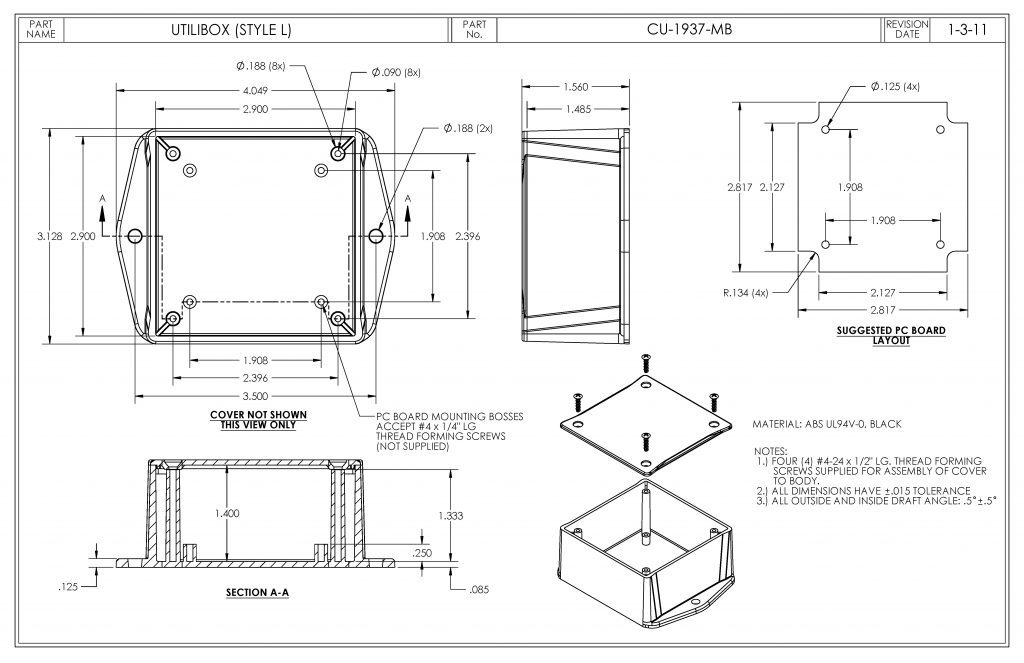

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CU-1935-MB 3.11" x 3.10" x 0.95" 3.113.100.95 2.90" x 2.90" x 0.79"
CU-1937-MB 3.11" x 3.13" x 1.56" 3.113.131.56 2.90" x 2.90" x 1.40"
CU-1931-MB 3.12" x 2.10" x 1.07" 3.122.101.07 2.90" x 1.90" x 0.93"
CU-1933-MB 3.12" x 2.13" x 1.58" 3.122.131.58 2.90" x 1.90" x 1.43"
