BT-2723

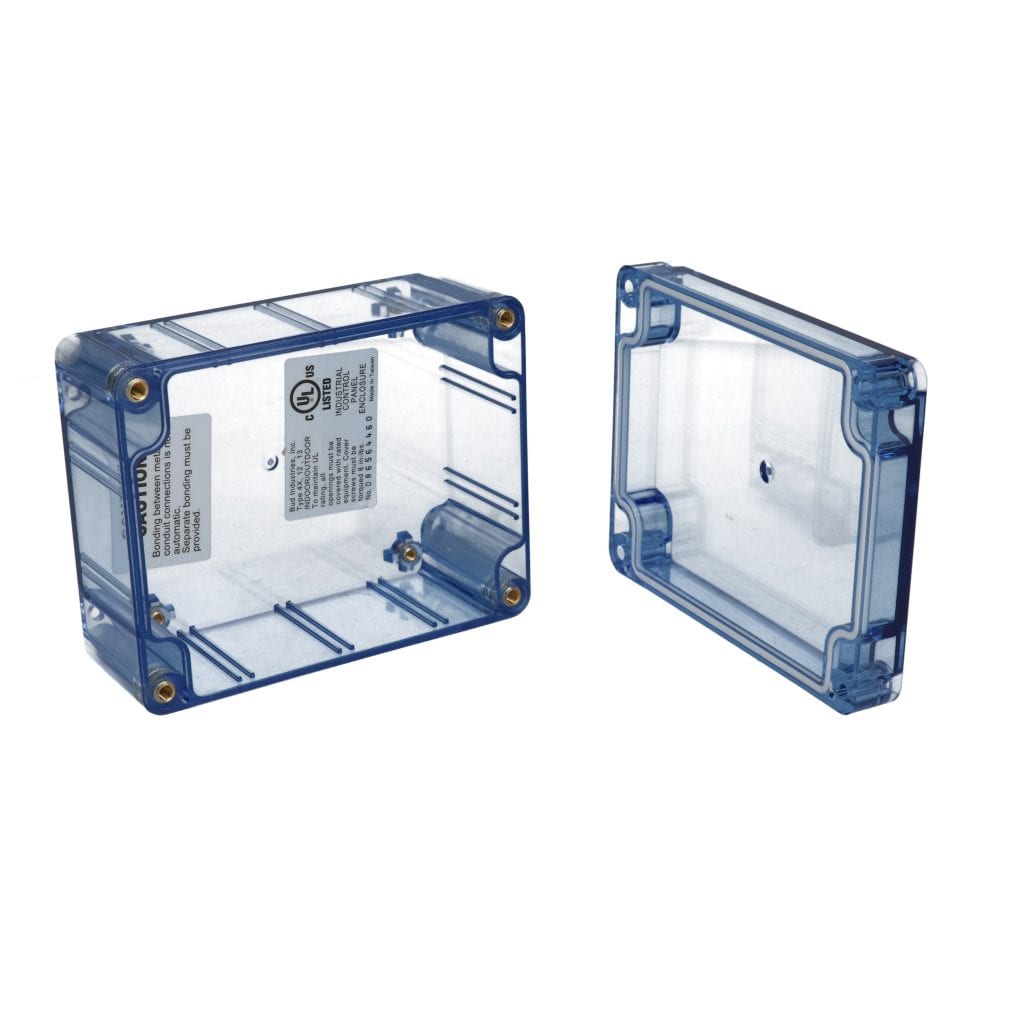

Clear Plastic Enclosure BT-2723
5 Day Modifications
2 Videos

Product Details

Model # BT-2723 BT Series Clear Plastic Enclosure
  • Transparent blue polycarbonate design reduces the need to remove cover to verify NEMA protection.
  • Near complete transparency to blue, white, and near white displays.
  • Plastic enclosure designed to IEC52/IP65 and NEMA 1, 2, 4, 4x, 12, and 13 specifications.
  • UL Listed to UL508-4x specifications (file# E194432).
  • Lap joint design combined with silicon gasket ensures protection against ingress of dust and splashing water.
  • Internal guide slots for mounting PCB assemblies vertically on some models.
  • Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc., into threaded brass inserts.
  • Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
  • UV stabilized polycarbonate with UL94-V2 flammability rating.
 Check Stock / Pricing Estimate Modifications Compare Sizes and ModelsSee Accessories
External Size L x W x D: 4.53" x 3.54" x 2.17"
Internal Size L x W x D: 4.16" x 3.18" x 1.93"
Weight: 0.34 lbs
Color: Transparent Blue
RoHS Certified: 11/10/2018
Cover Style: Clear, Screw Down Cover
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-V2
Type of Plastic: Transparent Blue Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 120°C
Door Flammability Rating: UL94-V2
Door Type of Plastic: Transparent Blue Polycarbonate
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: IP65, IP66

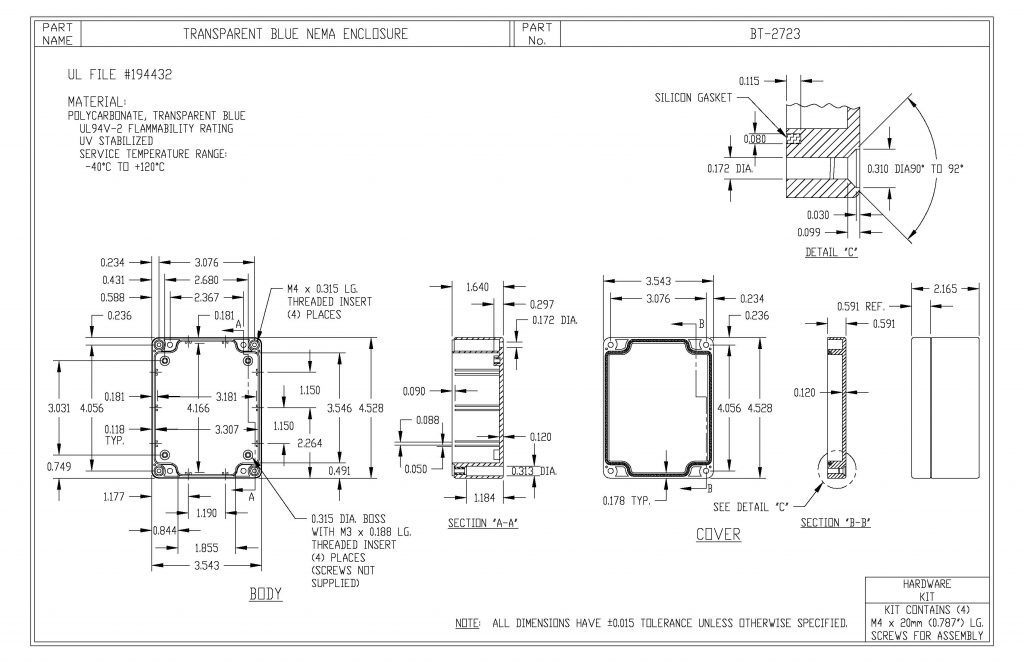

Drawing

BT-2723 Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # Internal Dimensions External Dimensions Cover Style Flammability Rating
BT-2742 11.81" x 9.06" x 3.39" 11.819.063.39 11.57" x 8.82" x 3.11" Clear, Screw Down Cover UL94-V2
BT-2723 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.18" x 1.93" Clear, Screw Down Cover UL94-V2
BT-2724 6.73" x 4.76" x 2.17" 6.734.762.17 6.37" x 4.40" x 1.93" Clear, Screw Down Cover UL94-V2
BT-2727 6.73" x 4.76" x 3.16" 6.734.763.16 6.37" x 4.40" x 2.92" Clear, Screw Down Cover UL94-V2
BT-2734 7.87" x 4.72" x 2.96" 7.874.722.96 7.61" x 4.46" x 2.64" Clear, Screw Down Cover UL94-V2
BT-2725 8.74" x 5.74" x 2.17" 8.745.742.17 8.37" x 5.39" x 1.93" Clear, Screw Down Cover UL94-V2
BT-2740 9.45" x 6.30" x 3.54" 9.456.303.54 9.00" x 5.85" x 3.26" Clear, Screw Down Cover UL94-V2
