JBH-4958-KO

Hinged Junction Box with Knockouts JBH-4958-KO
  • JBH Series Hinged Junction Box with Knockouts
  • Hinged Junction Box With Knockouts

Product Details

Model # JBH-4958-KO NEMA 1 Hinged Junction Box
  • Heavy duty 16-gauge welded steel construction
  • Hinged cover with slotted-head quarter-turn cam lock
  • Four easily removable concentric knockouts on all four sides for industry standard conduit sizes
  • Four wall mounting holes in back
  • Embossed grounding hole in bottom allows easy access and flush wall mounting
  • Durable ANSI 65 Gray Powder coating
  • Complies with NEMA and UL Type 1 rating
  • UL listed file E194432
Compare Sizes and Models Check Stock / Pricing
External Size L x W x D: 10.00" x 8.00" x 4.00"
Internal Size L x W x D: 9.88" x 7.88" x 3.88"
Weight: 6 lbs
Color: Gray Powder Coat
RoHS Certified: Always Compliant
Latch Style: Slotted-Head Quarter-Turn Cam Lock
Knockouts: Knockouts
NEMA Rating: NEMA 1
Mounting Style: Mounting Holes
Cover Style: Opaque, Hinged Cover
hb4958ko.pdf hb4958ko.dxf

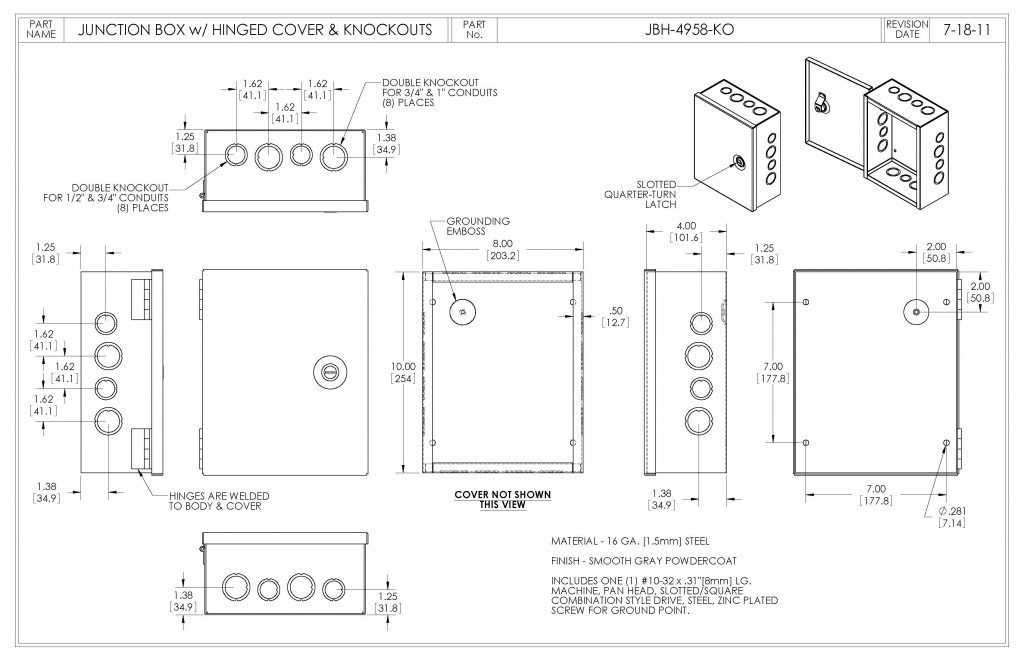

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
JBH-4960-KO 10.00" x 10.00" x 4.00" 10.0010.004.00 9.88" x 9.88" x 3.88"
JBH-4961-KO 10.00" x 10.00" x 6.00" 10.0010.006.00 9.88" x 9.88" x 5.88"
JBH-4958-KO 10.00" x 8.00" x 4.00" 10.008.004.00 9.88" x 7.88" x 3.88"
JBH-4959-KO 10.00" x 8.00" x 6.00" 10.008.006.00 9.88" x 7.88" x 5.88"
JBH-4944-KO 6.00" x 4.00" x 3.50" 6.004.003.50 5.88" x 3.88" x 3.38"
JBH-4953-KO 6.00" x 4.00" x 4.00" 6.004.004.00 5.88" x 3.88" x 3.88"
JBH-4954-KO 6.00" x 6.00" x 3.00" 6.006.003.00 5.88" x 5.88" x 2.88"
JBH-4945-KO 6.00" x 6.00" x 3.50" 6.006.003.50 5.88" x 5.88" x 3.38"
JBH-4955-KO 6.00" x 6.00" x 4.00" 6.006.004.00 5.88" x 5.88" x 3.88"
JBH-4956-KO 8.00" x 6.00" x 4.00" 8.006.004.00 7.88" x 5.88" x 3.88"
JBH-4957-KO 8.00" x 8.00" x 4.00" 8.008.004.00 7.88" x 7.88" x 3.88"
