RR-1368-BT

19 Inch Open Rack with 8 Inch Deep Posts Black RR-1368-BT
  • RR 1367 Series 19 inch Open Rack

Product Details

Model # RR-1368-BT RR 1367 Series Open 19 Inch Rack
  • Extra-sturdy racks made of 14 & 12 gauge steel.
  • Eight-inch deep welded “U” member and triangular bracket hold uprights to base (12 ga). Panel mounting rails tapped #10-32 on E.I.A. universal spacing. (Use #7346 screws – order separately) Chassis type base, 20.87 x 26.00″, drilled for RC-7758 casters. Racks may be bolted together in Add-A-Rack fashion
  • Finish: Black Texture
  • Racks are shipped knocked down in two (2) cartons, with all necessary hardware included
Check Stock / Pricing Request Modifications Compare Sizes and ModelsSee Accessories
External Size H x W x D: 73.37" x 20.87" x 26.00"
Internal Size H x W x D: 70.13" x 17.94" x 8.00"
Weight: 77 lbs
Color: Black Textured Powder Coated
Panel Space Width: 19.00
Panel Space Height: 70.00
Assembly: Knockdown
Ships Knockdown: Yes

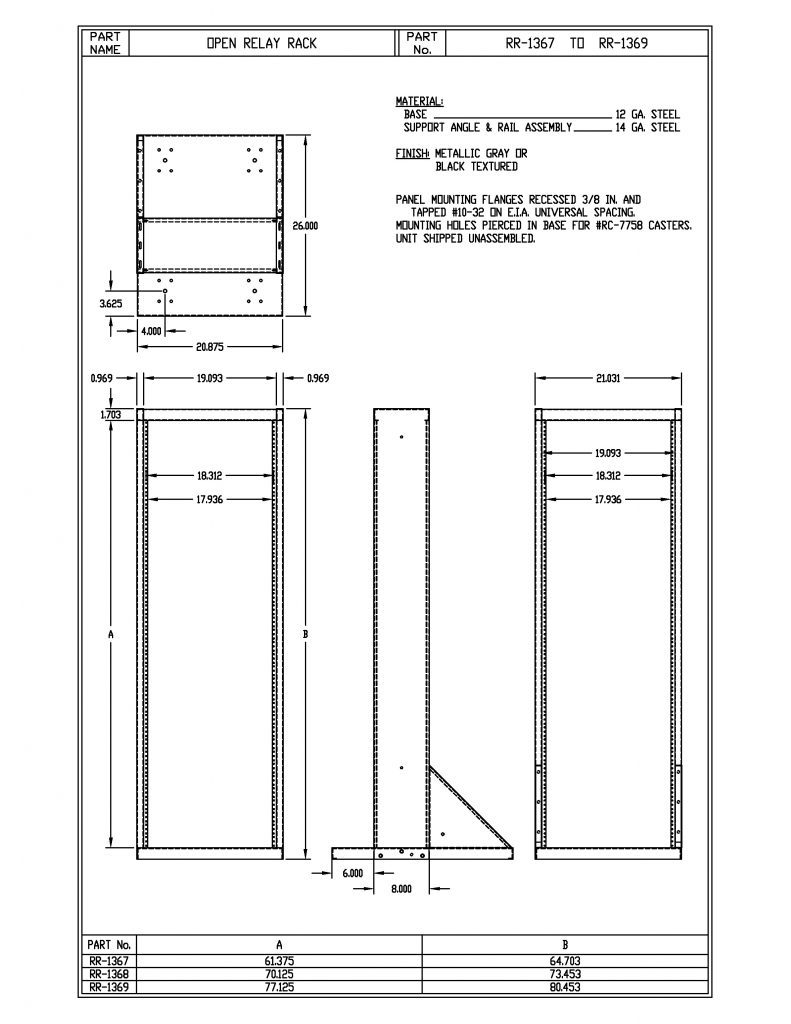

Drawing

Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
RR-1367-BT 64.62" x 20.87" x 26.00" 64.6220.8726.00 61.38" x 17.94" x 8.00"
RR-1367-MG 64.62" x 20.87" x 26.00" 64.6220.8726.00 61.38" x 17.94" x 8.00"
RR-1368-BT 73.37" x 20.87" x 26.00" 73.3720.8726.00 70.13" x 17.94" x 8.00"
RR-1368-MG 73.37" x 20.87" x 26.00" 73.3720.8726.00 70.13" x 17.94" x 8.00"
RR-1369-BT 80.37" x 20.87" x 26.00" 80.3720.8726.00 77.13" x 17.94" x 8.00"
RR-1369-MG 80.37" x 20.87" x 26.00" 80.3720.8726.00 77.13" x 17.94" x 8.00"
