SF-2194

Wall Mount Rack with Swing Out Frame SF-2194
  • Swing Frame Series Wall Mount Rack

Product Details

Model # SF-2194 Swing Frame Series Wall Mount Rack
  • Left or right side hinge
  • #12-24 panel mounting hardware (Use #9260 screws – order separately)
  • Velcro cable straps included
  • 16″ on center wall mounting (wall mounting hardware not included)
  • 75# equipment load capacity
  • Knockdown Assembly
  • Finish: Black Textured
 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size H x W x D: 38.28" x 21.25" x 18.00"
Internal Size H x W x D: 35.06" x 19.00" x 18.00"
Weight: 18 lbs
Color: Black Textured Powder Coated
RoHS Certified: Always Compliant
Mounting Style: Wall Mount
Panel Space Width: 19.00
Panel Space Height: 35.00
Assembly: Knockdown
Ships Knockdown: Yes

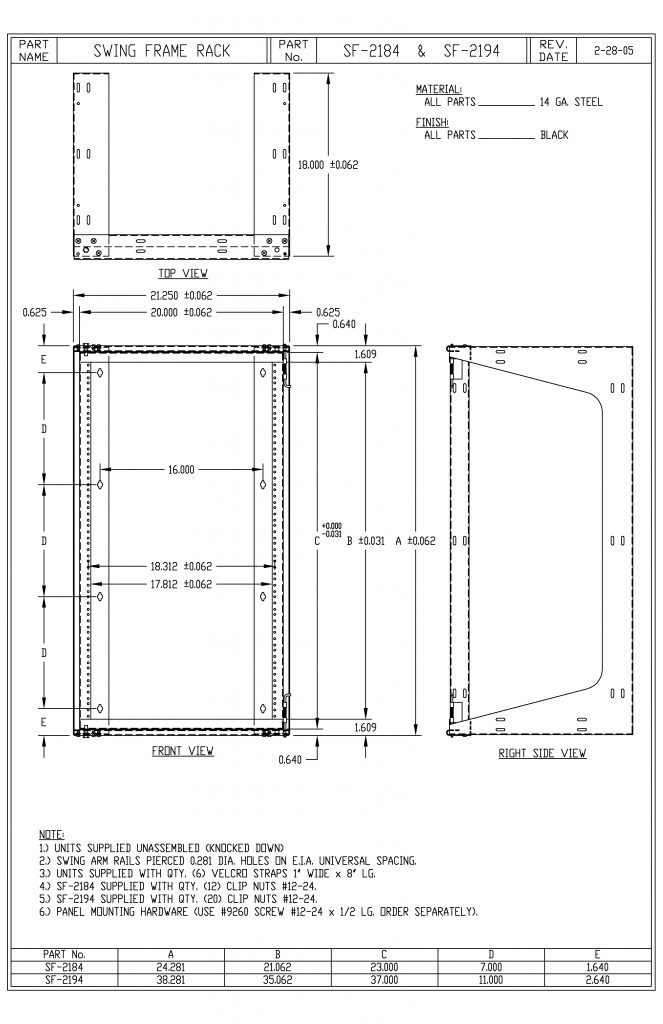

Drawing

SF-2194 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
SF-2184 24.28" x 21.25" x 18.00" 24.2821.2518.00 21.06" x 19.00" x 18.00"
SF-2194 38.28" x 21.25" x 18.00" 38.2821.2518.00 35.06" x 19.00" x 18.00"
