VR-8925

19 Inch Open Cabinet Rack VR-8925
  • ValuRack Series 19 inch Cabinet Rack

Product Details

Model # VR-8925 ValuRack Series 19 Inch Cabinet Rack
  • EIA-310 compliant for 19″ panel width equipment
  • Integral, full height, front panel mounting rails
  • Provisions for additional fully adjustable panel mounting rails
  • Large 10.00″ square cable access in bottom
  • Top accepts Bud #FN-1282 Exhaust Fan
  • Suggested 700# equipment load capacity (higher when used with adjustable panel mounting rails for 4-point equipment mounting)
 Check Stock / Pricing Request Modifications Compare Sizes and ModelsSee Accessories
External Size H x W x D: 75.31" x 22.00" x 26.00"
Internal Size H x W x D: 70.00" x 19.00" x 24.00"
Weight: 114 lbs
Color: Black Textured Powder Coated
EIA Width: 19 Inches
Panel Space Height: 70
Clear Inside Depth: 24
Ventilated: Yes
Assembly: Welded

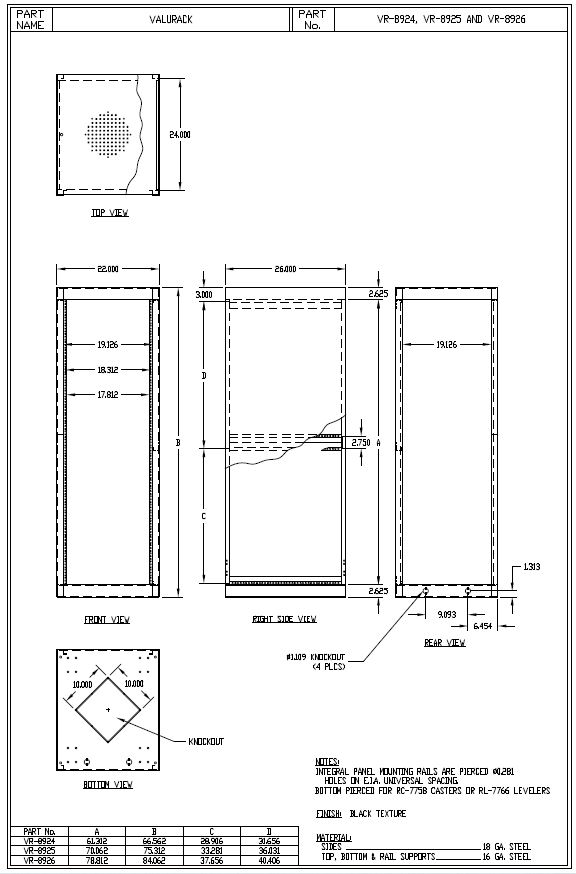

Drawing

VR-8925 Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
VR-8924 66.56" x 22.00" x 26.00" 66.5622.0026.00 61.50" x 19.00" x 24.00"
VR-8925 75.31" x 22.00" x 26.00" 75.3122.0026.00 70.00" x 19.00" x 24.00"
VR-8926 84.06" x 22.00" x 26.00" 84.0622.0026.00 78.75" x 19.00" x 24.00"
