WNC-5631

Wall Mount Network Electronics Cabinet WNC-5631

Product Details

Model # WNC-5631 Wall Mount Network Electronics Cabinet
  • Style A
  • Sturdy and durable 16-gauge steel construction
  • Furnished completely assembled with tempered glass front door with key lock and ventilation slots
  • Front door can be mounted hinged left or right
  • EIA 310D compliant for 19-inch rack-mount equipment
  • Readily removable gland plate in the top and bottom for easy cable installation
  • Supplied with one pair of fully adjustable panel mounting rails
  • Four mounting slots provided in rear for rapid wall mounting
  • Other sizes and modifications are available upon request
Compare Sizes and Models Check Stock / Pricing
External Size H x W x D: 23.62" x 23.62" x 5.93"
Internal Size H x W x D: 17.71" x 21.00" x 5.16"
Weight: 34 lbs
Color: Black
RoHS Certified: Always Compliant
Mounting Style: Wall Mount
Number of U: 12
Door Style: Glass Front Door
hbwnc5631.pdf hbwnc5631.dxf

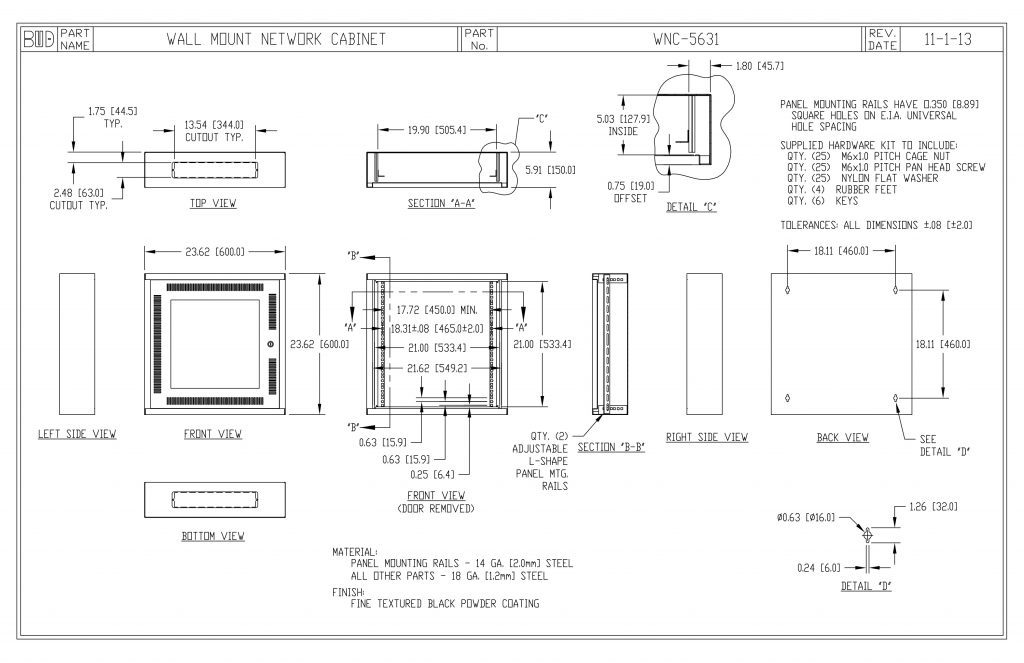

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
WNC-5641 23.62" x 23.62" x 11.86" 23.6223.6211.86 17.71" x 21.00" x 10.94"
WNC-5631 23.62" x 23.62" x 5.93" 23.6223.625.93 17.71" x 21.00" x 5.16"
