Sloping Panel Series

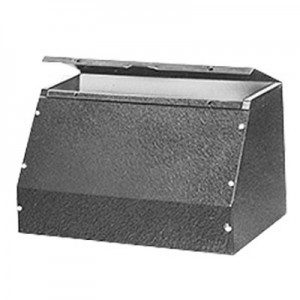

The Sloping Panel Series is designed to house electronic components in a steel table-top enclosure. The sloped front panel is an ideal surface for mounting switches and displays. The screw-down front panel is removable and the top cover is hinged for quick access to components mounted on chassis.

Filter Models

Sloping Panel Steel Enclosure C-1584

Sloping Panel Series
Model # C-1584
External Size L x W x D: 6.5" x 7.06" x 7.31"
Internal Size L x W x D: 6.38" x 6.31" x 7.25"

Sloping Panel Steel Enclosure C-1585

Sloping Panel Series
Model # C-1585
External Size L x W x D: 6.5" x 9.06" x 7.31"
Internal Size L x W x D: 6.38" x 8.31" x 7.25"

Sloping Panel Steel Enclosure C-1586

Sloping Panel Series
Model # C-1586
External Size L x W x D: 6.5" x 11.06" x 7.31"
Internal Size L x W x D: 6.38" x 10.31" x 7.25"

Sloping Panel Steel Enclosure C-1587

Sloping Panel Series
Model # C-1587
External Size L x W x D: 8" x 8.06" x 8"
Internal Size L x W x D: 7.88" x 7.06" x 7.94"

Sloping Panel Steel Enclosure C-1588

Sloping Panel Series
Model # C-1588
External Size L x W x D: 8" x 10.06" x 8"
Internal Size L x W x D: 7.88" x 9.06" x 7.94"

Sloping Panel Steel Enclosure C-1892

Sloping Panel Series
Model # C-1892
External Size L x W x D: 8" x 13.06" x 8.5"
Internal Size L x W x D: 7.88" x 12.06" x 8.44"

Sloping Panel Steel Enclosure C-1893

Sloping Panel Series
Model # C-1893
External Size L x W x D: 10" x 18.06" x 10.5"
Internal Size L x W x D: 9.81" x 17.09" x 10.41"

Sloping Panel Steel Enclosure C-1894

Sloping Panel Series
Model # C-1894
External Size L x W x D: 8" x 14.06" x 8"
Internal Size L x W x D: 7.88" x 13.06" x 7.94"

Sloping Panel Steel Enclosure C-1896

Sloping Panel Series
Model # C-1896
External Size L x W x D: 9" x 18.06" x 8.18"
Internal Size L x W x D: 8.81" x 17.09" x 8.09"
