C-1584

Sloping Panel Steel Enclosure C-1584
  • Sloping Panel Steel Enclosure

Product Details

Model # C-1584 Sloping Panel Series

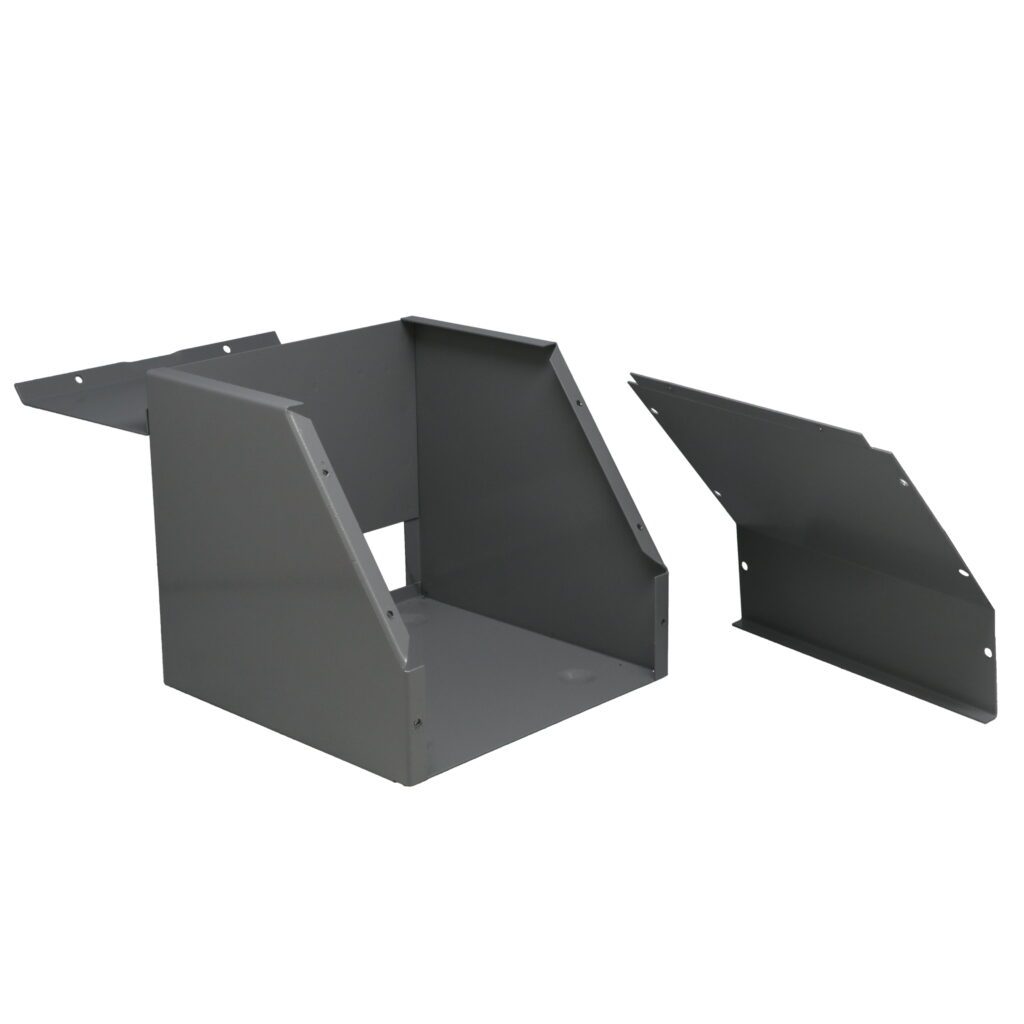

  • Removable front panel
  • Hinged top opens completely for access to components mounted on chassis
  • Optional Aluminum Chassis AC-402
Compare Sizes and Models Check Stock / Pricing
External Size L x W x D: 6.50" x 7.06" x 7.31"
Internal Size L x W x D: 6.38" x 6.31" x 7.25"
Weight: 2.75 lbs
Color: Metallic Gray
hb1584.pdf hb1584.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
C-1893 10.00" x 18.06" x 10.50" 10.0018.0610.50 9.81" x 17.09" x 10.41"
C-1586 6.50" x 11.06" x 7.31" 6.5011.067.31 6.38" x 10.31" x 7.25"
C-1584 6.50" x 7.06" x 7.31" 6.507.067.31 6.38" x 6.31" x 7.25"
C-1585 6.50" x 9.06" x 7.31" 6.509.067.31 6.38" x 8.31" x 7.25"
C-1588 8.00" x 10.06" x 8.00" 8.0010.068.00 7.88" x 9.06" x 7.94"
C-1892 8.00" x 13.06" x 8.50" 8.0013.068.50 7.88" x 12.06" x 8.44"
C-1894 8.00" x 14.06" x 8.00" 8.0014.068.00 7.88" x 13.06" x 7.94"
C-1587 8.00" x 8.06" x 8.00" 8.008.068.00 7.88" x 7.06" x 7.94"
C-1896 9.00" x 18.06" x 8.18" 9.0018.068.18 8.81" x 17.09" x 8.09"
