NEMA / IP Rated Boxes

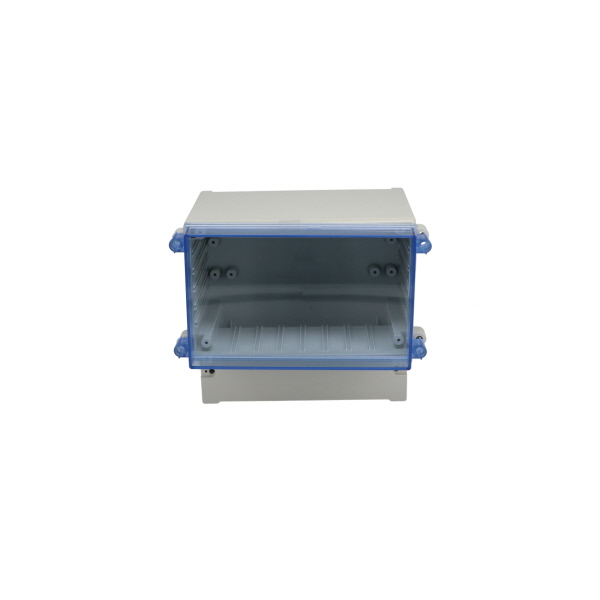

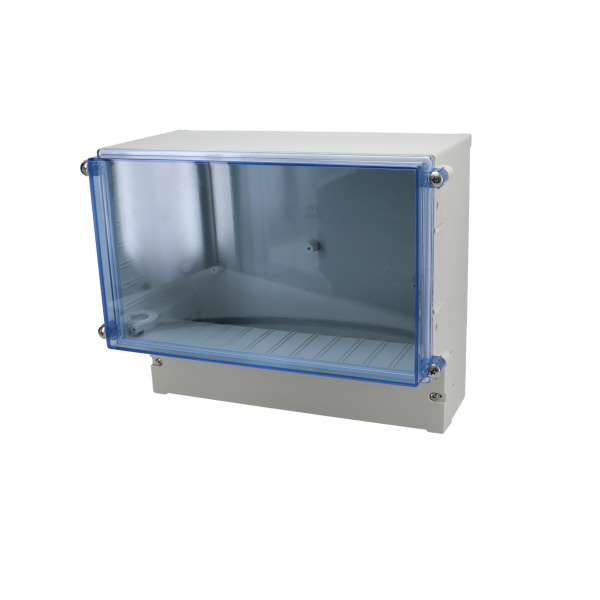

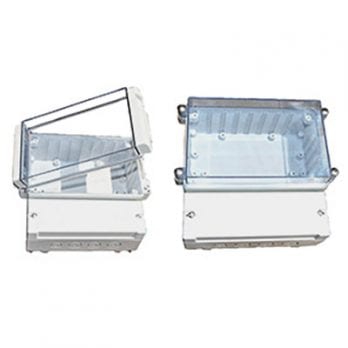

DCS Series Dual Compartment Enclosure

The DCS Series enclosure features two separate compartments. Top compartment has a clear, screw-down cover that allow for inspection without opening the seal. Bottom compartment with a opaque cover is ideal for housing terminals, power supplies, batteries and similar components.  The design includes built-in DIN rail mounting clips and knockouts on bottom to accommodate conduit fittings and cable glands. Made of impact-resistant ABS plastic, the dual enclosure meets IP 65 requirements.

Filter Models

Dual Compartment Enclosure Screw-down Cover DCS-11900

DCS Series Dual Compartment Enclosure
Model # DCS-11900
External Size: 6.54" x 6.34" x 3.66"
Internal Size: 6.14" x 3.79" x 3.47"

Dual Compartment Enclosure Screw-down Cover DCS-11901

DCS Series Dual Compartment Enclosure
Model # DCS-11901
External Size: 6.54" x 6.34" x 4.76"
Internal Size: 6.14" x 3.79" x 4.57"

Dual Compartment Enclosure Screw-down Cover DCS-11902

DCS Series Dual Compartment Enclosure
Model # DCS-11902
External Size: 8.39" x 7.28" x 4.11"
Internal Size: 7.99" x 4.54" x 3.91"

Dual Compartment Enclosure Screw-down Cover DCS-11903

DCS Series Dual Compartment Enclosure
Model # DCS-11903
External Size: 10.08" x 8.54" x 5.22"
Internal Size: 9.72" x 5.8" x 4.99"

Dual Compartment Enclosure Screw-down Cover DCS-11904

DCS Series Dual Compartment Enclosure
Model # DCS-11904
External Size: 11.65" x 11.06" x 6.22"
Internal Size: 11.26" x 7.34" x 5.98"

Dual Compartment Enclosure Screw-down Cover DCS-11920

DCS Series Dual Compartment Enclosure
Model # DCS-11920
External Size: 6.54" x 6.34" x 3.66"
Internal Size: 6.14" x 3.79" x 3.47"

Dual Compartment Enclosure Screw-down Cover DCS-11921

DCS Series Dual Compartment Enclosure
Model # DCS-11921
External Size: 6.34" x 6.54" x 4.76"
Internal Size: 3.79" x 6.14" x 4.57"

Dual Compartment Enclosure Screw-down Cover DCS-11922

DCS Series Dual Compartment Enclosure
Model # DCS-11922
External Size: 7.28" x 8.39" x 4.11"
Internal Size: 4.54" x 7.99" x 3.91"

Dual Compartment Enclosure Screw-down Cover DCS-11923

DCS Series Dual Compartment Enclosure
Model # DCS-11923
External Size: 8.54" x 10.08" x 5.22"
Internal Size: 5.8" x 9.72" x 4.99"

Dual Compartment Enclosure Screw-down Cover DCS-11924

DCS Series Dual Compartment Enclosure
Model # DCS-11924
External Size: 11.06" x 11.65" x 6.22"
Internal Size: 7.34" x 11.26" x 5.98"
