NEMA / IP Rated Boxes

SNB Series Electronics Enclosure

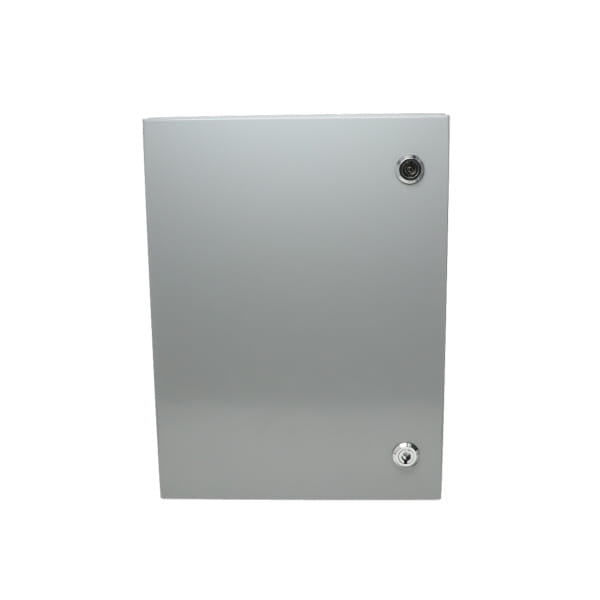

The SNB Series of steel sheet-metal boxes is designed to meet IP66 rating and NEMA 1, 2, 4, 4x, 12, 13. Closing with a quarter-turn latch, it protects installed components in harsh environments.

Filter Models

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3730

SNB Series Electronics Enclosure
Model # SNB-3730
External Size L x W x D: 9.84" x 7.87" x 5.91"
Internal Size L x W x D: 8.25" x 6.28" x 5.33"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3731

SNB Series Electronics Enclosure
Model # SNB-3731
External Size L x W x D: 11.81" x 9.84" x 5.91"
Internal Size L x W x D: 10.22" x 8.25" x 5.33"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3732

SNB Series Electronics Enclosure
Model # SNB-3732
External Size L x W x D: 11.81" x 9.84" x 7.87"
Internal Size L x W x D: 10.22" x 8.25" x 7.29"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3733

SNB Series Electronics Enclosure
Model # SNB-3733
External Size L x W x D: 11.81" x 11.81" x 5.91"
Internal Size L x W x D: 10.22" x 10.22" x 5.33"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3734

SNB Series Electronics Enclosure
Model # SNB-3734
External Size L x W x D: 11.81" x 11.81" x 7.87"
Internal Size L x W x D: 10.22" x 10.22" x 7.29"

Electronic Enclosure with Keyed Quarter Turn LatchSNB-3735

SNB Series Electronics Enclosure
Model # SNB-3735
External Size L x W x D: 15.75" x 11.81" x 5.91"
Internal Size L x W x D: 14.16" x 10.22" x 5.33"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3736

SNB Series Electronics Enclosure
Model # SNB-3736
External Size L x W x D: 15.75" x 11.81" x 7.87"
Internal Size L x W x D: 14.16" x 10.22" x 7.29"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3737

SNB Series Electronics Enclosure
Model # SNB-3737
External Size L x W x D: 15.75" x 15.75" x 7.87"
Internal Size L x W x D: 14.16" x 14.16" x 7.29"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3738

SNB Series Electronics Enclosure
Model # SNB-3738
External Size L x W x D: 7.87" x 5.91" x 5.91"
Internal Size L x W x D: 6.28" x 4.31" x 5.33"

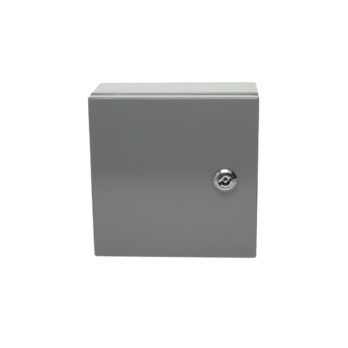

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3739

SNB Series Electronics Enclosure
Model # SNB-3739
External Size L x W x D: 7.87" x 7.87" x 3.98"
Internal Size L x W x D: 6.28" x 6.28" x 3.40"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3740

SNB Series Electronics Enclosure
Model # SNB-3740
External Size L x W x D: 9.84" x 9.84" x 5.91"
Internal Size L x W x D: 8.25" x 8.25" x 5.33"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3741

SNB Series Electronics Enclosure
Model # SNB-3741
External Size L x W x D: 9.84" x 7.87" x 3.98"
Internal Size L x W x D: 8.25" x 6.28" x 3.40"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3743

SNB Series Electronics Enclosure
Model # SNB-3743
External Size L x W x D: 15.75" x 13.98" x 7.87"
Internal Size L x W x D: 14.16" x 12.38" x 7.29"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3746

SNB Series Electronics Enclosure
Model # SNB-3746
External Size L x W x D: 20.00" x 16.00" x 8.00"
Internal Size L x W x D: 14.41" x 18.41" x 7.73"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3749

SNB Series Electronics Enclosure
Model # SNB-3749
External Size L x W x D: 20.00" x 20.00" x 12.00"
Internal Size L x W x D: 18.41" x 18.41" x 11.73"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3751

SNB Series Electronics Enclosure
Model # SNB-3751
External Size L x W x D: 24.00" x 16.00" x 8.00"
Internal Size L x W x D: 14.41" x 22.41" x 7.73"

Electronic Enclosure with Keyed Quarter Turn Latch SNB-3752

SNB Series Electronics Enclosure
Model # SNB-3752
External Size L x W x D: 24.00" x 20.00" x 8.00"
Internal Size L x W x D: 18.41" x 22.41" x 7.73"

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3754

SNB Series Electronics Enclosure
Model # SNB-3754
External Size L x W x D: 24.00" x 24.00" x 10.00"
Internal Size L x W x D: 22.41" x 22.41" x 9.73"
