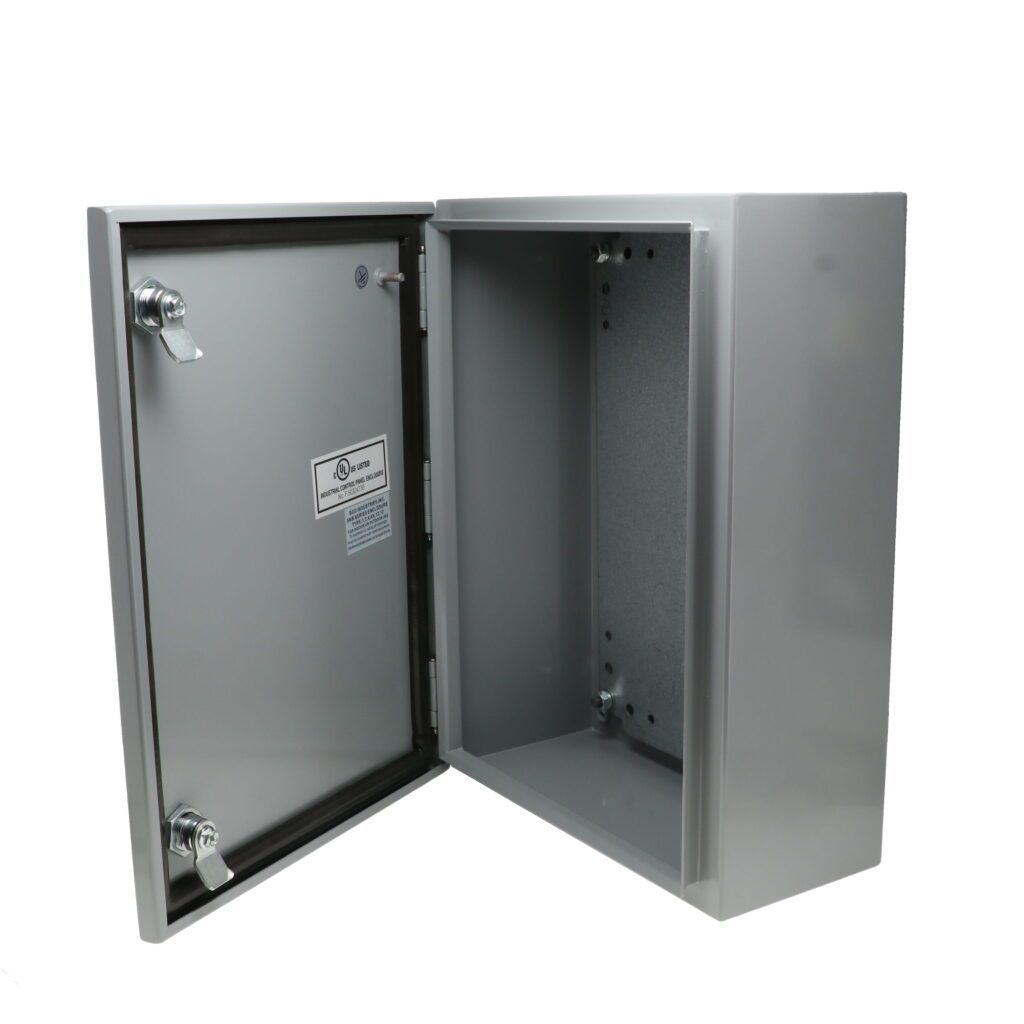

Electronic Enclosure with Keyed Quarter Turn Latch SNB-3735

Model # SNB-3735 SNB Series Steel Electronics Enclosure

Continuous seam welded 16 gauge steel
Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal
External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
Bonding studs for grounding are provided on base and door
Internal panel and hardware included
UL Listed Type 1, 2, 4, 4X and 12. IP65 and IP66 ratings
Easily machined and modified to your particular requirements
Finish: Smooth Gray powder coat, Internal Panel – Clear Zinc plate

New Design feature

Continuous gasket

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 15.75" x 11.81" x 5.91"

Internal Size L x W x D: 14.16" x 10.22" x 5.33"

Weight: 15 lbs

Color: Gray Powder Coat

RoHS Certified: Always Compliant

NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13

IP Rating: IP66

Cover Style: Opaque, Hinged Cover

Drawing

SNB-3735 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
SNB-3733	11.81" x 11.81" x 5.91" 11.8111.815.91	10.22" x 10.22" x 5.33"
SNB-3734	11.81" x 11.81" x 7.87" 11.8111.817.87	10.22" x 10.22" x 7.29"
SNB-3731	11.81" x 9.84" x 5.91" 11.819.845.91	10.22" x 8.25" x 5.33"
SNB-3732	11.81" x 9.84" x 7.87" 11.819.847.87	10.22" x 8.25" x 7.29"
SNB-3735	15.75" x 11.81" x 5.91" 15.7511.815.91	14.16" x 10.22" x 5.33"
SNB-3736	15.75" x 11.81" x 7.87" 15.7511.817.87	14.16" x 10.22" x 7.29"
SNB-3743	15.75" x 13.98" x 7.87" 15.7513.987.87	14.16" x 12.38" x 7.29"
SNB-3737	15.75" x 15.75" x 7.87" 15.7515.757.87	14.16" x 14.16" x 7.29"
SNB-3746	20.00" x 16.00" x 8.00" 20.0016.008.00	14.41" x 18.41" x 7.73"
SNB-3749	20.00" x 20.00" x 12.00" 20.0020.0012.00	18.41" x 18.41" x 11.73"
SNB-3751	24.00" x 16.00" x 8.00" 24.0016.008.00	14.41" x 22.41" x 7.73"
SNB-3752	24.00" x 20.00" x 8.00" 24.0020.008.00	18.41" x 22.41" x 7.73"
SNB-3754	24.00" x 24.00" x 10.00" 24.0024.0010.00	22.41" x 22.41" x 9.73"
SNB-3738	7.87" x 5.91" x 5.91" 7.875.915.91	6.28" x 4.31" x 5.33"
SNB-3739	7.87" x 7.87" x 3.98" 7.877.873.98	6.28" x 6.28" x 3.40"
SNB-3741	9.84" x 7.87" x 3.98" 9.847.873.98	8.25" x 6.28" x 3.40"
SNB-3730	9.84" x 7.87" x 5.91" 9.847.875.91	8.25" x 6.28" x 5.33"
SNB-3740	9.84" x 9.84" x 5.91" 9.849.845.91	8.25" x 8.25" x 5.33"
