DB-4703

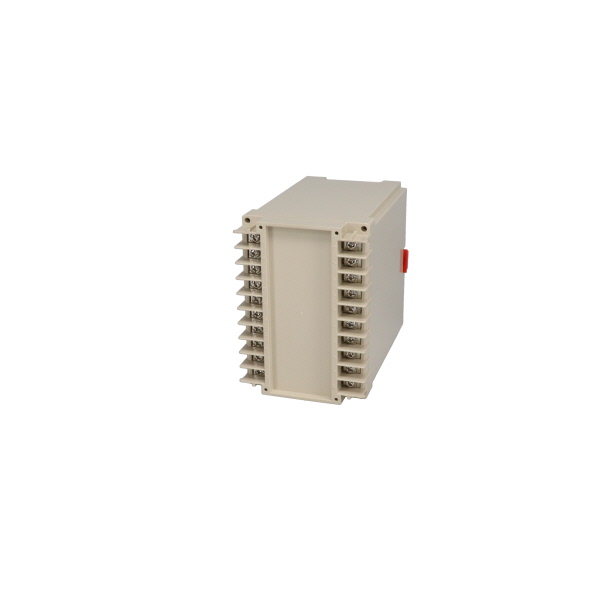

DIN Rail Mount Box 20-Contacts DB-4703
  • DIN Rail Mount Box

Product Details

Model # DB-4703 DIN Rail Mount Box Series
  • Durable UL94V-0 rated ABS plastic housing
  • External clamp type contacts have M3 screws and lock washers
  • Internal solder tab contacts
  • All contacts are tin plated brass and have 10amp rating
  • Internal horizontal and vertical PCB card guides
  • Screw attached front covers with recessed area for labels
  • Fits standard DIN rail
Compare Sizes and Models Check Stock / Pricing
External Size H x W x D: 2.76" x 3.94" x 4.42"
Internal Size H x W x D: 2.53" x 3.71" x 3.20"
Weight: 0.35 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-V0
Recessed Top: With Recessed Top
Number of Contacts: 20
Card Guides: Yes
hb4703.pdf hb4703.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
DB-4704 2.76" x 4.61" x 4.42" 2.53" x 4.33" x 3.20"
DB-4703 2.76" x 3.94" x 4.42" 2.53" x 3.71" x 3.20"
DB-4702 2.76" x 3.23" x 4.42" 2.53" x 3.00" x 3.20"
DB-4701 2.76" x 2.57" x 4.42" 2.53" x 2.34" x 3.20"
