DIN Rail Mount Box 24-Contacts DB-4704

Model # DB-4704 DIN Rail Mount Box Series

Durable UL94V-0 rated ABS plastic housing
External clamp type contacts have M3 screws and lock washers
Internal solder tab contacts
All contacts are tin plated brass and have 10amp rating
Internal horizontal and vertical PCB card guides
Screw attached front covers with recessed area for labels
Fits standard DIN rail

Check Stock / Pricing Estimate Modifications Compare Sizes and Models

External Size H x W x D: 2.76" x 4.61" x 4.42"

Internal Size H x W x D: 2.53" x 4.33" x 3.20"

Weight: 0.42 lbs

Color: Light Gray

RoHS Certified: Always Compliant

Type of Plastic: ABS

Flammability Rating: UL94-V0

Recessed Top: With Recessed Top

Number of Contacts: 24

Card Guides: Yes

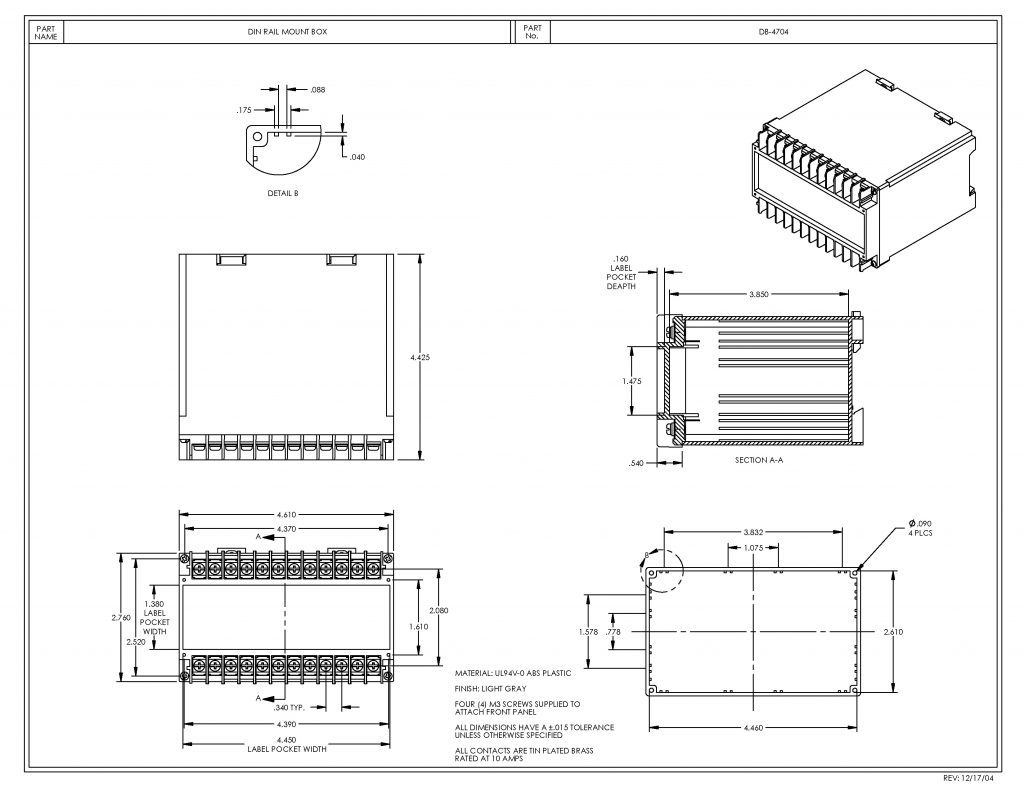

Drawing

DB-4704 Dimensions

Email me the STEP file

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
DB-4701	2.76" x 2.57" x 4.42" 2.762.574.42	2.53" x 2.34" x 3.20"
DB-4702	2.76" x 3.23" x 4.42" 2.763.234.42	2.53" x 3.00" x 3.20"
DB-4703	2.76" x 3.94" x 4.42" 2.763.944.42	2.53" x 3.71" x 3.20"
DB-4704	2.76" x 4.61" x 4.42" 2.764.614.42	2.53" x 4.33" x 3.20"
