DMB-4778

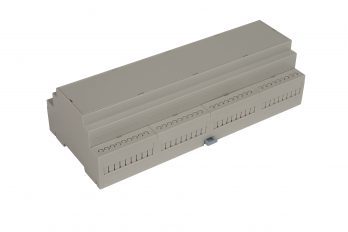

DIN Rail Mount Multi-Board 72-Terminals DMB-4778

Product Details

Model # DMB-4778 DIN Rail Mount Multi-Board Box Series
  • DMB is Durable UL94V-0 rated ABS/PC blend plastic housing
  • Suggested service temperature -20C to +70
  • Three levels of PC board mounting locations – PC boards not supplied
  • Bottom level accepts PC board with modular type terminals on 0.2″ centers
  • Removable terminal guards have snap-off tabs to match number of terminals used
  • Snap-fit design allows tool-less assembly of all parts including PC boards
  • Snap-fit front cover is easily removable for machining or silk-screening
  • Optional clear and infra red polycarbonate covers available
  • Fits standard 35mm DIN rail
  • Finish: Light Gray
Compare Sizes and Models See Accessories Check Stock / Pricing
External Size H x W x D: 2.25" x 3.55" x 8.35"
Weight: .37 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Type of Plastic: Poly / ABS Blend
Flammability Rating: UL94-V0
Service Temperature Low: -20
Service Temperature High: 70
Number of PCB Terminals: 72
Mounting Style: DIN Rail
hbdmb4778.pdf hbdmb4778.dxf

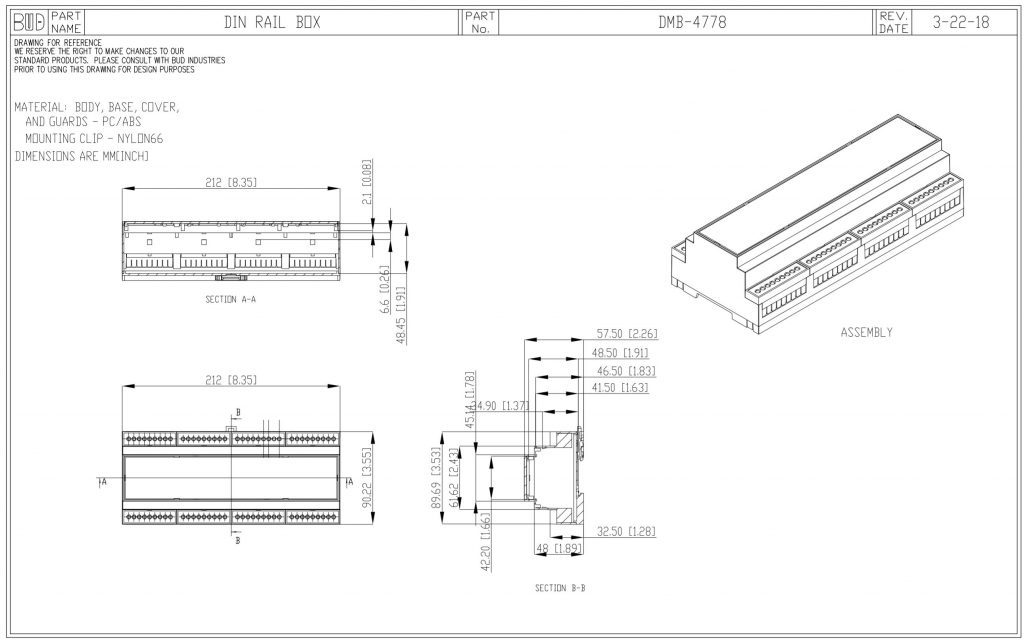

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
DMB-4769 2.25" x 3.55" x 0.67" " x " x "
DMB-4770 2.25" x 3.55" x 1.43" " x " x "
DMB-4771 2.25" x 3.55" x 2.10" " x " x "
DMB-4772 2.25" x 3.55" x 2.80" " x " x "
DMB-4773 2.25" x 3.55" x 4.18" " x " x "
DMB-4774 2.25" x 3.55" x 6.28" " x " x "
DMB-4775 2.25" x 3.55" x 3.29" " x " x "
DMB-4778 2.25" x 3.55" x 8.35" " x " x "
