MD-1960

Futura Steel Boxes MD-1960
  • Futura Series Steel Boxes

Product Details

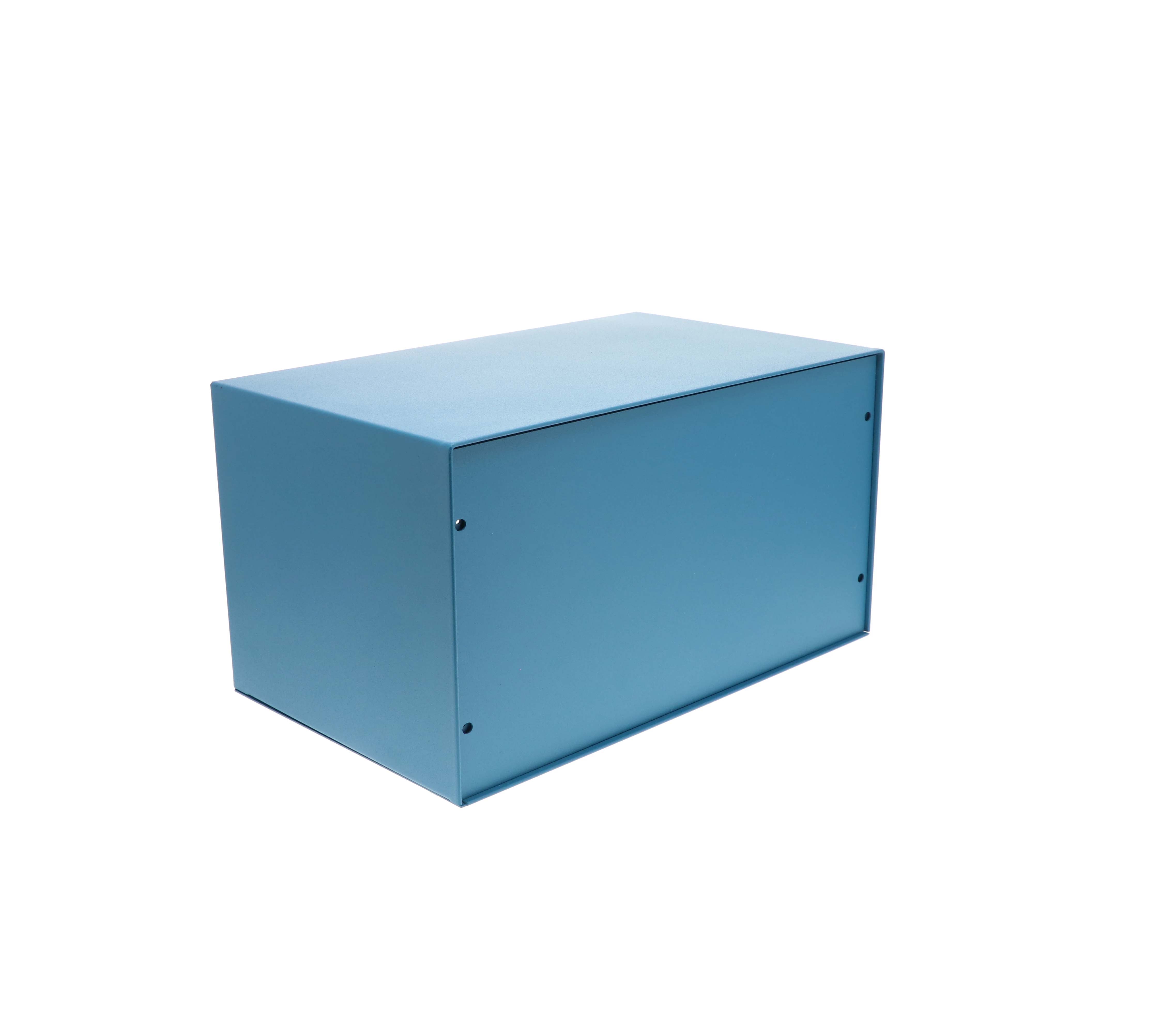

Model # MD-1960 Futura Series
  • Straight, 18 gauge steel front vertical panel
  • One-piece side and top
  • 20 gauge steel sides, top, base and rear panel
  • Sides fit into flanges on base
  • Chassis may be attached to base, front or rear panels

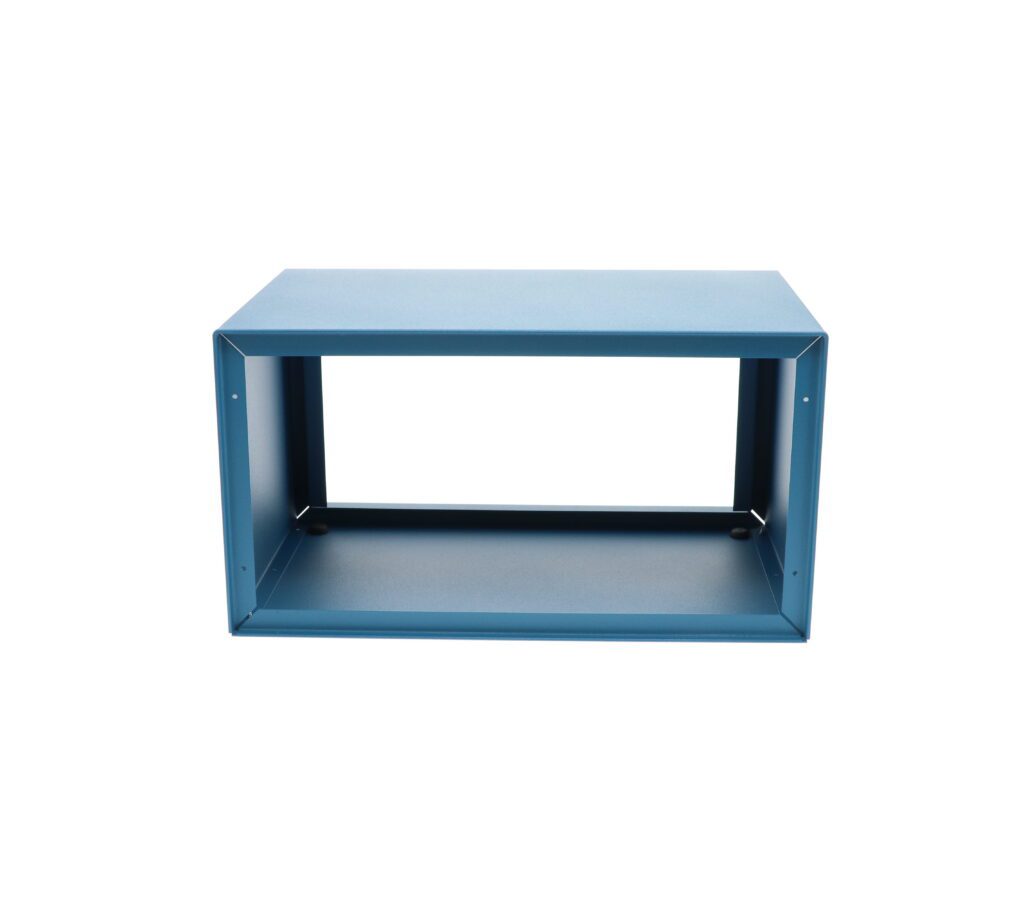

  • Sides and top can be removed from base for easy access to interiors
  • Rubber feet furnished
Compare Sizes and Models Check Stock / Pricing
External Size H x W x D: 7.00" x 13.00" x 8.00"
Internal Size H x W x D: 5.88" x 11.88" x 7.25"
Weight: 6.75 lbs
Color: Royal Blue Textured Body / White Textured Front Panel
hb1960.pdf hb1960.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
MD-1960 7.00" x 13.00" x 8.00" 7.0013.008.00 5.88" x 11.88" x 7.25"
MD-1961 8.00" x 14.00" x 9.00" 8.0014.009.00 6.88" x 12.88" x 8.25"
MD-1962 8.00" x 16.00" x 9.00" 8.0016.009.00 6.88" x 14.88" x 8.25"
