HH-3401-BC

Grabber Style A Plastic Box HH-3401-BC

Product Details

Model # HH-3401-BC Grabber Style A Series Plastic Box

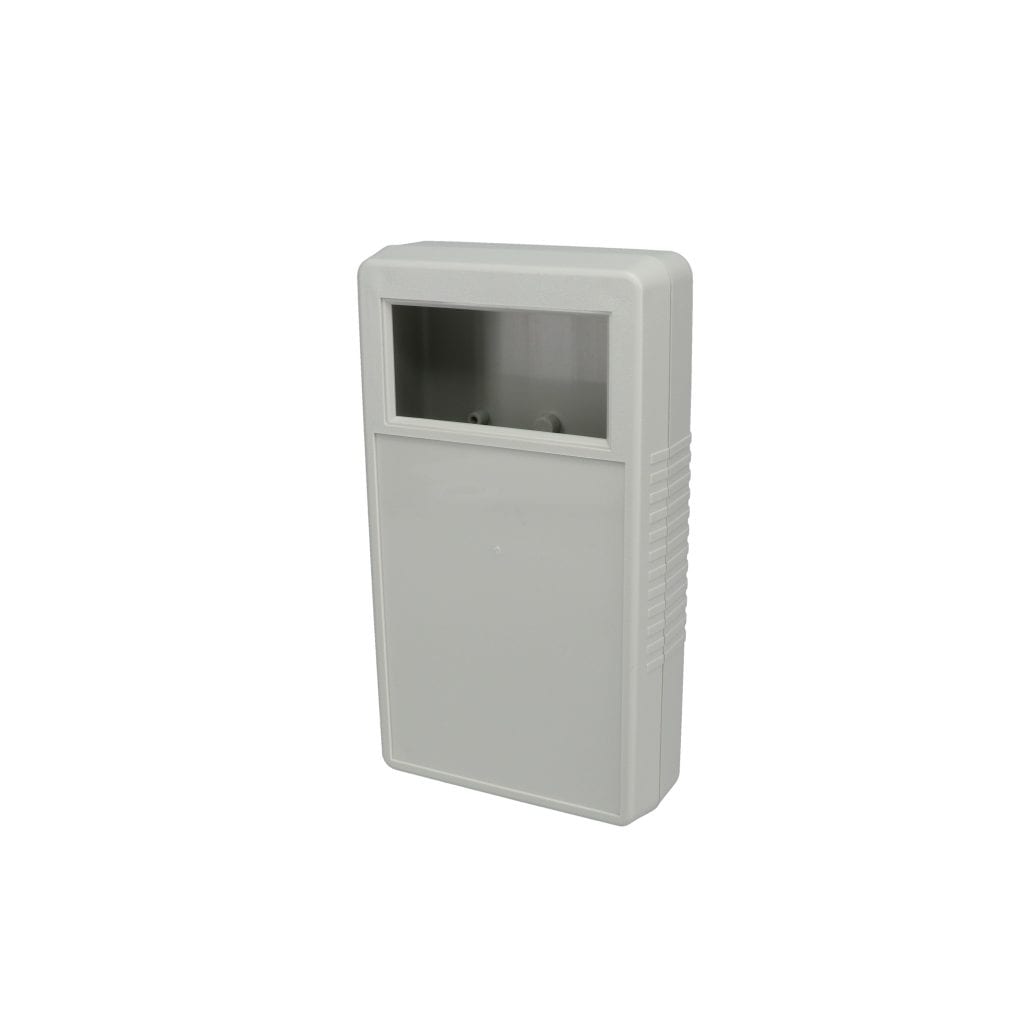

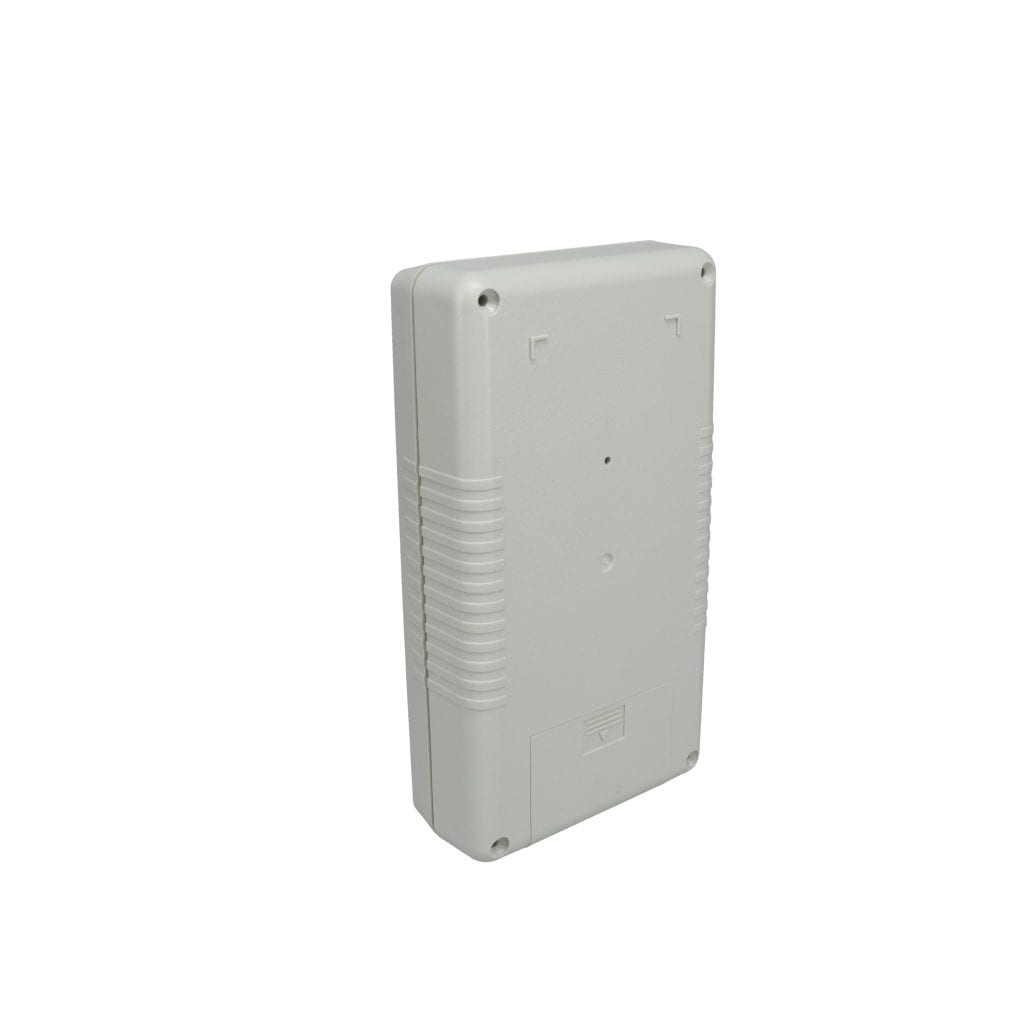

Style A is a rectangular enclosure that is available with 2,84″ x 1.38″ LCD cutout in the display area, and with a 9-volt/AA battery compartment. The hand-held plastic box is made out of ABS plastic in a light gray finish, with UL94-HB flammability rating. It is available with optional gasket, tilt stand, belt clip, and AA battery contact kit.

Compare Sizes and Models See Accessories Check Stock / Pricing
External Size L x W x D: 7.09" x 3.94" x 1.58"
Internal Size L x W x D: 5.83" x 2.68" x 1.36"
Weight: 0.41 lbs
Color: Light Gray
Type of Plastic: ABS
Flammability Rating: UL94-HB
Recessed Top: With Recessed Top
Battery Compartment: With Battery Compartment
Bosses: Yes
LCD Cutout: Yes
Options: Belt Clip, Tilt Stand
hb3401bc.pdf hb3401bc.dxf

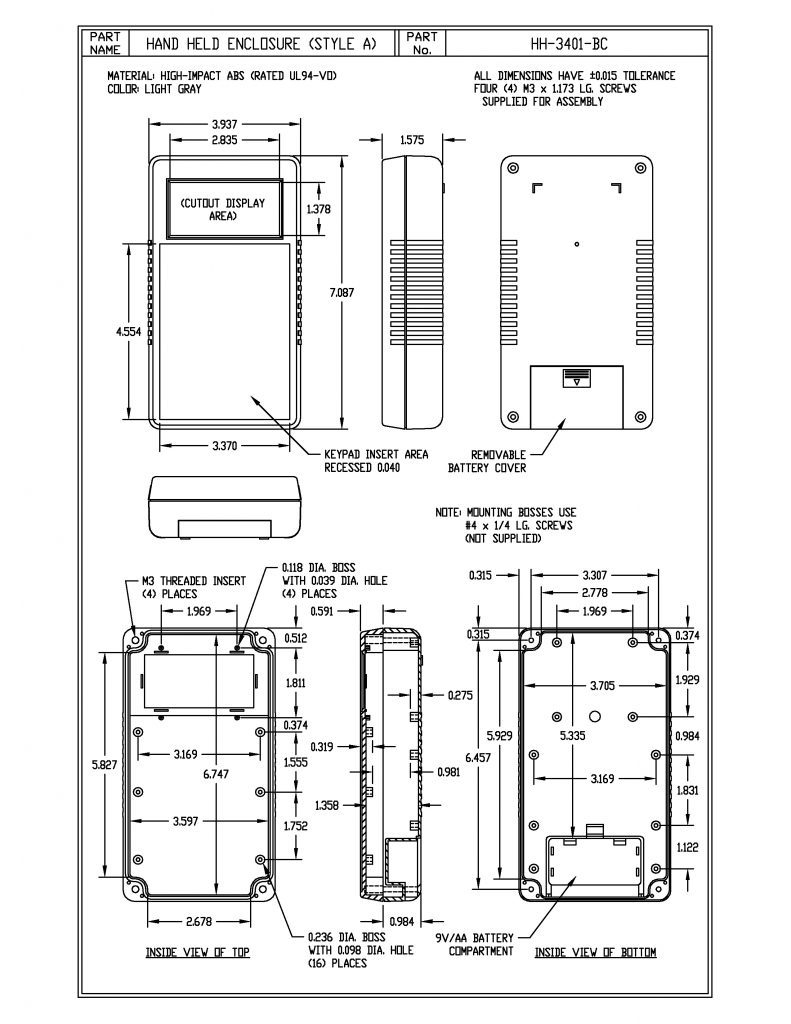

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
HH-3400-BC 7.09" x 3.94" x 1.58" 7.093.941.58 5.83" x 2.68" x 1.36"
HH-3401-BC 7.09" x 3.94" x 1.58" 7.093.941.58 5.83" x 2.68" x 1.36"
