Grabber Style L Plastic Box HH-3580-B
  • Grabber Style L Plastic Box

Product Details

Model # HH-3580-B Grabber Style L Plastic Box

Style L is a smaller ergonomically designed enclosure with ribbed and rounded sides which provide a comfortable and secure grasp. It features internal PCB mounting bosses and a recessed top surface suitable for keypad or label. Enclosure is made out of ABS plastic in a black finish with UL94-HB flammability rating. The hand-held plastic box is available with optional tilt stand, and belt clip.

Compare Sizes and Models See Accessories Check Stock / Pricing
External Size L x W x D: 5.71" x 3.54" x 1.26"
Internal Size L x W x D: 5.50" x 3.30" x 0.82"
Weight: 0.20 lbs
Color: Black Textured Powder Coated
Type of Plastic: ABS
Flammability Rating: UL94-HB
Recessed Top: With Recessed Top
Battery Compartment: Without Battery Compartment
Bosses: Yes
Options: Belt Clip, Tilt Stand
hb3580.pdf hb3580.dxf

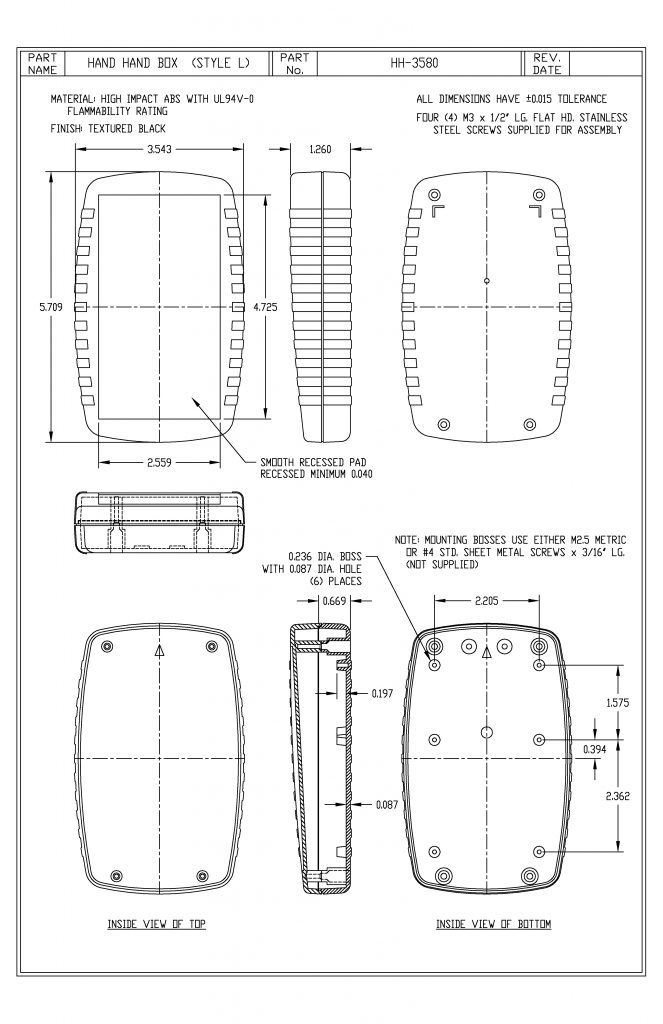

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Battery Compartment
HH-3580-B 5.71" x 3.54" x 1.26" 5.713.541.26 5.50" x 3.30" x 0.82" Without Battery Compartment
HH-3580-BCB 5.71" x 3.54" x 1.26" 5.713.541.26 5.50" x 3.30" x 0.82" With Battery Compartment
