HH-3510-BCG

Grabber Style O Plastic Box with Battery Compartment Gray HH-3510-BCG
  • Grabber Style O Plastic Box

Product Details

Model # HH-3510-BCG Grabber Style O Plastic Box
  • Blend of ‘T’ and rectangular shaped enclosures providing more room for internal components.
  • Ergonomically designed with soft ribbed rounded sides that provide secure and comfortable grasp.
  • Available with integral battery compartment designed to accept (2) or (4) AAA batteries. (Battery contact kits are included).
  • Made from high impact resistant ABS plastic with UL94-HB flammability rating.
  • Internal PCB mounting bosses.
  • Complete with top cover, bottom cover, front panel, battery door, and assembly hardware.
  • Recessed top suitable for label and keypad.
  • The hand-held plastic box is available with optional tilt stand, AA battery contact kit, and belt clip.
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 6.30" x 3.70" x 0.94"
Internal Size L x W x D: 6.04" x 2.32" x 0.80"
Weight: 0.23 lbs
Color: Light Gray
Type of Plastic: ABS
Flammability Rating: UL94-HB
Recessed Top: With Recessed Top
Battery Compartment: With Battery Compartment
Bosses: Yes
Options: Belt Clip, Tilt Stand, Battery Kit
hb3510bc.pdf hb3510bc.dxf

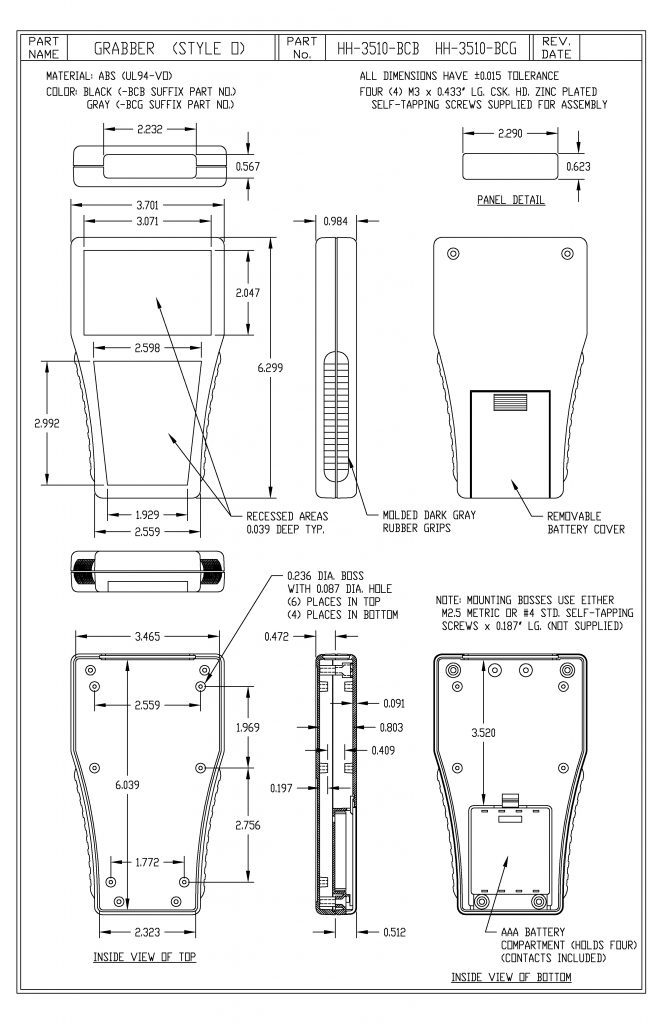

Drawing
