PS-11292-B

Plastibox Style B Series Plastic Electronic Enclosure with Smooth Insert Black PS-11292-B

Product Details

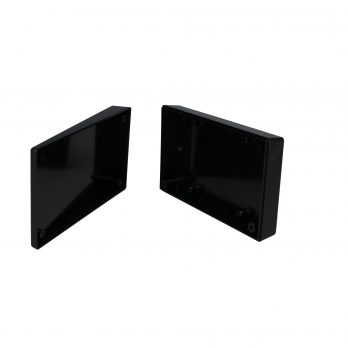

Model # PS-11292-B Plastibox Style B Series Plastic Electronic Enclosure
  • Plastic enclosure with squared corners
  • Provisions for mounting horizontal and vertical PCBs
  • Four non-skid feet
  • ABS plastic UL940HB flammability rating
  • Suggested service temperature -40C to +60C
  • Textured body with smooth insert
Compare Sizes and ModelsSee Accessories Request ModificationsCheck Stock / Pricing
External Size H x W x D: 1.50" x 3.25" x 5.62"
Internal Size H x W x D: 0.78" x 2.94" x 5.32"
Weight: 0.22 lbs
Color: Black
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-HB
Service Temperature Low: -40
Service Temperature High: 60
Bosses: Yes
hb11290.pdf hb11290.dxffile/d/1zaqjlgO_-PNonn5cOoKA5qOCuxj_kpC5/view?usp=drivesdk

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PS-11292-B 1.50" x 3.25" x 5.62" 1.503.255.620.78" x 2.94" x 5.32"
PS-11292-G 1.50" x 3.25" x 5.62" 1.503.255.620.78" x 2.94" x 5.32"
PSS-11350-B 2.45" x 4.88" x 6.88" 2.454.886.881.34" x 4.48" x 6.48"
PSS-11350-G 2.45" x 4.88" x 6.88" 2.454.886.881.34" x 4.48" x 6.48"
PBS-11294-B 5.63" x 3.25" x 1.50" 5.633.251.505.32" x 2.94" x 0.78"
PBS-11294-G 5.63" x 3.25" x 1.50" 5.633.251.505.32" x 2.94" x 0.78"
