PBS-11294-B

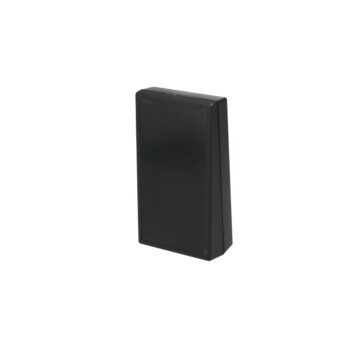

Plastibox Style B Series Plastic Electronic Enclosure with Battery Compartment Black PBS-11294-B
  • Plastibox B

Product Details

Model # PBS-11294-B Plastibox Style B Series Plastic Electronic Enclosure
  • Plastic enclosure with squared corners
  • Provisions for mounting horizontal and vertical PCBs
  • Four non-skid feet
  • ABS plastic UL940HB flammability rating
  • Suggested service temperature -40C to +60C

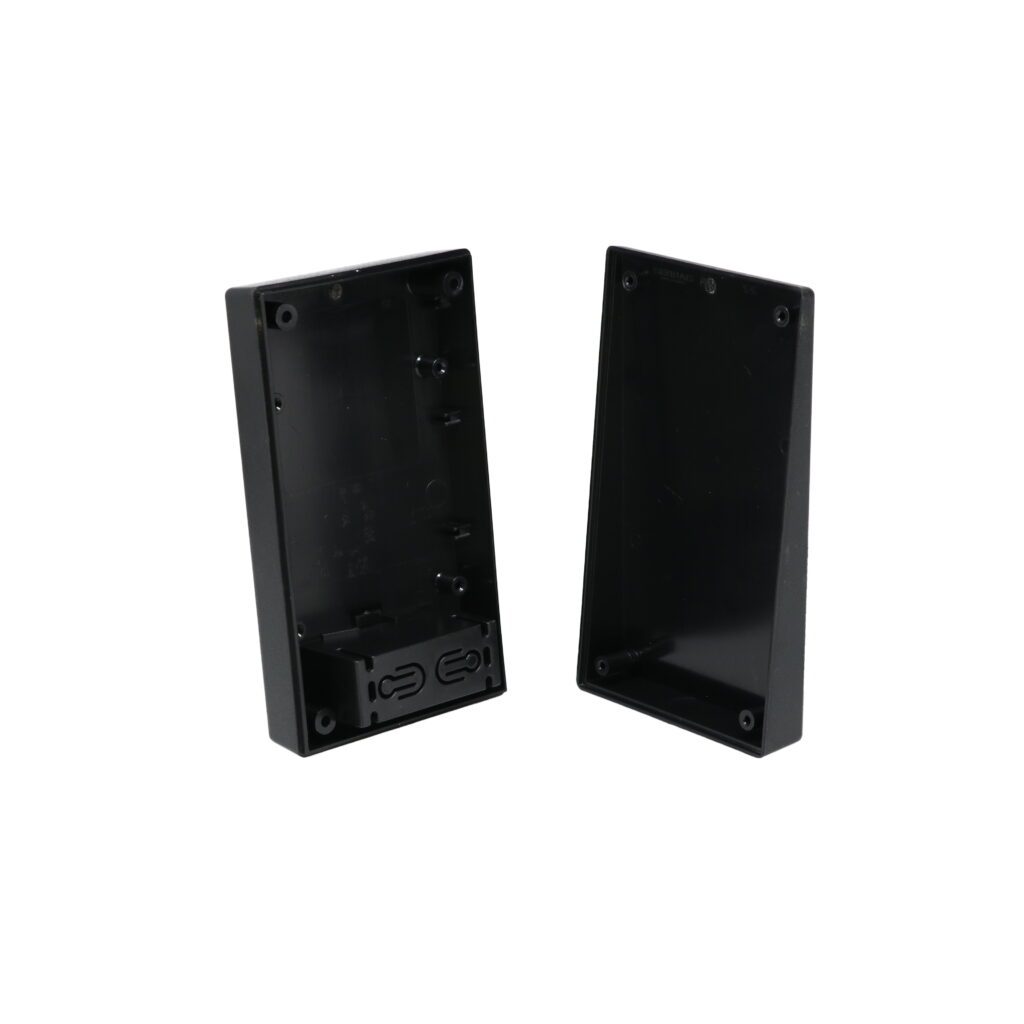

  • Textured body with smooth top insert and 9-volt battery compartment
 Compare Sizes and ModelsSee Accessories Request ModificationsCheck Stock / Pricing
External Size H x W x D: 5.63" x 3.25" x 1.50"
Internal Size H x W x D: 5.32" x 2.94" x 0.78"
Weight: 0.25 lbs
Color: Black
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-HB
Service Temperature Low: -30
Service Temperature High: 60
Battery Compartment: With Battery Compartment
Bosses: Yes
hb11291.pdf hb11291.dxffile/d/1cr2rzxSEG2GxNSyvTDovnIDPUTNbuNEm/view?usp=drivesdk

Drawing

PBS-11294-B Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PS-11292-B 1.50" x 3.25" x 5.62" 1.503.255.62 0.78" x 2.94" x 5.32"
PS-11292-G 1.50" x 3.25" x 5.62" 1.503.255.62 0.78" x 2.94" x 5.32"
PSS-11350-B 2.45" x 4.88" x 6.88" 2.454.886.88 1.34" x 4.48" x 6.48"
PSS-11350-G 2.45" x 4.88" x 6.88" 2.454.886.88 1.34" x 4.48" x 6.48"
PBS-11294-B 5.63" x 3.25" x 1.50" 5.633.251.50 5.32" x 2.94" x 0.78"
PBS-11294-G 5.63" x 3.25" x 1.50" 5.633.251.50 5.32" x 2.94" x 0.78"
