PS-11276

Plastibox Style C Series Plastic Electronic Enclosure PS-11276
  • Plastibox Style C

Product Details

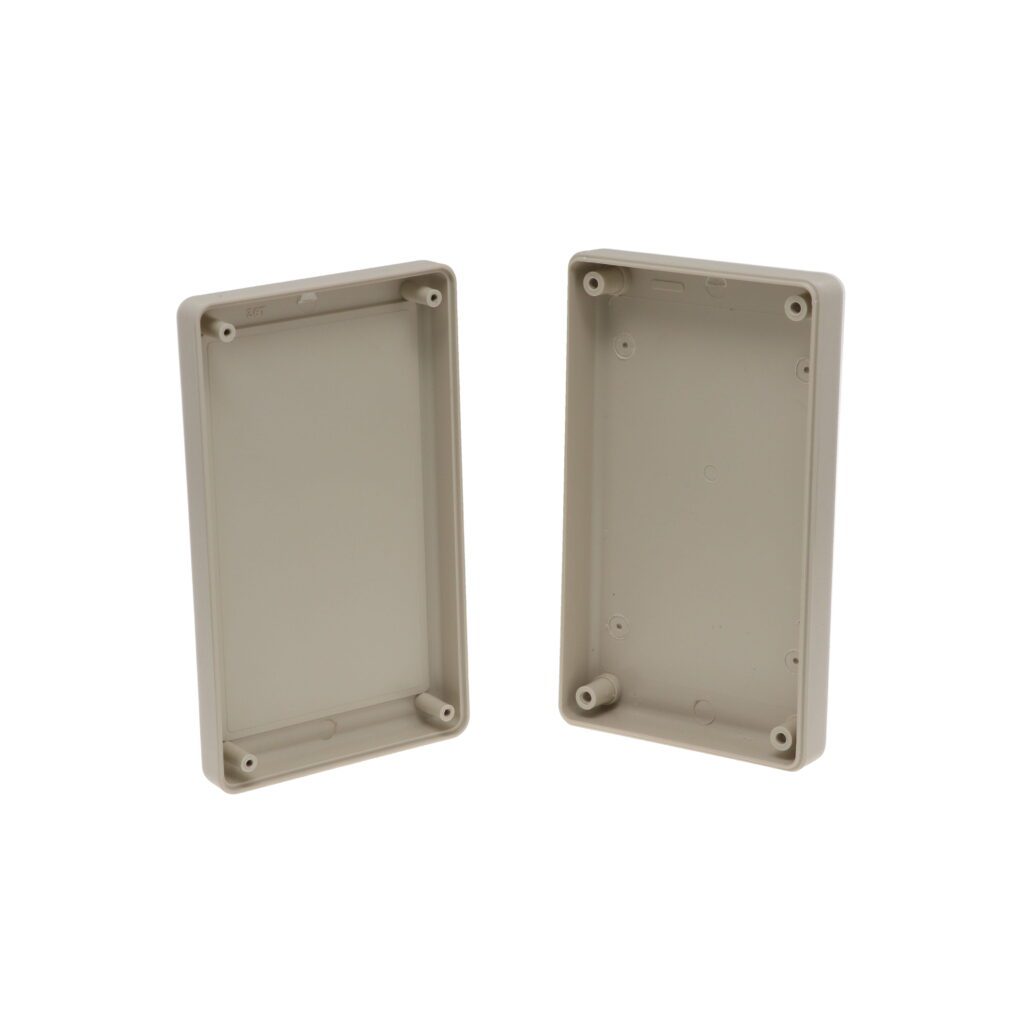

Model # PS-11276 Plastibox Style C Series Plastic Electronic Enclosure
  • Rounded  corners and edges for attractive appearance
  • Plain interior with no molded-in PCB mounting bosses allows more usable space
  • Optional universal mounting boss kit available
  • PC Gray ABS plastic
  • UL94-HB flammability rating
  • Four non-skid feet included
  • Textured body with smooth insert
Compare Sizes and Models See Accessories Check Stock / Pricing
External Size H x W x D: 1.41" x 3.75" x 6.30"
Internal Size H x W x D: 1.14" x 3.53" x 6.08"
Weight: 0.31 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Type of Plastic: Polystyrene
Flammability Rating: UL94-HB
hb11276.pdf hb11276.dxf

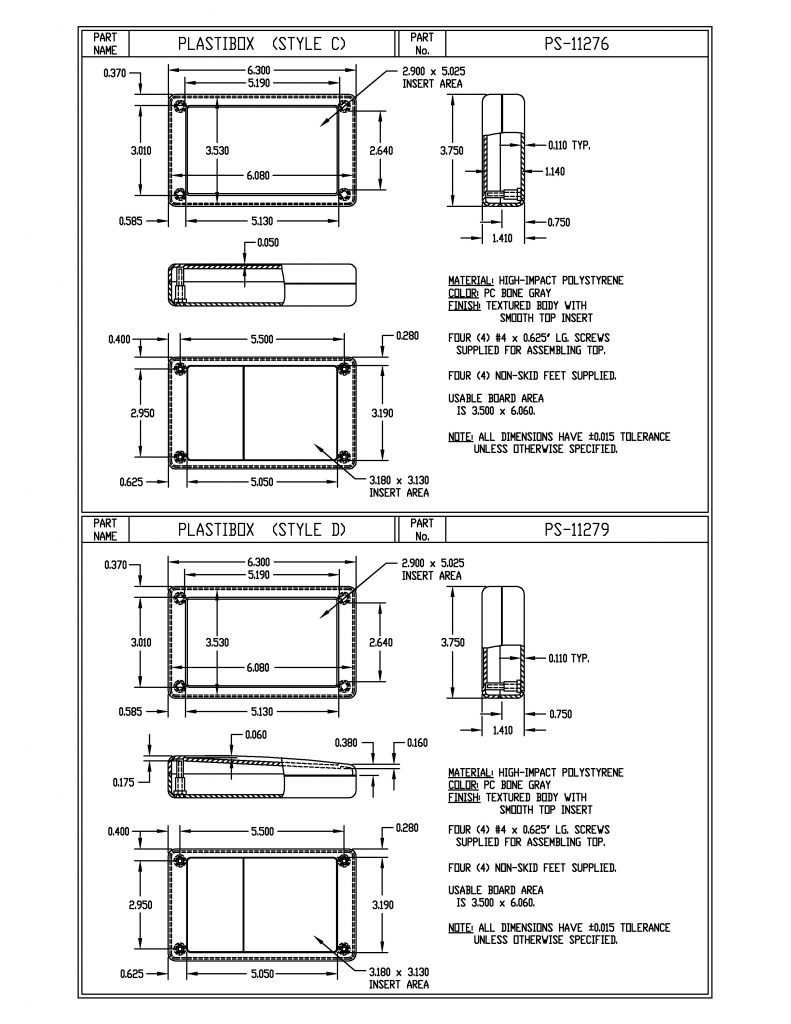

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PS-11276 1.41" x 3.75" x 6.30" 1.413.756.30 1.14" x 3.53" x 6.08"
PBS-11273 6.30" x 3.75" x 1.41" 6.303.751.41 6.08" x 3.53" x 1.14"
