PS-11502-G

Plastibox Style E Plastic Electronic Enclosure Gray PS-11502-G
  • Plastibox Style E

Product Details

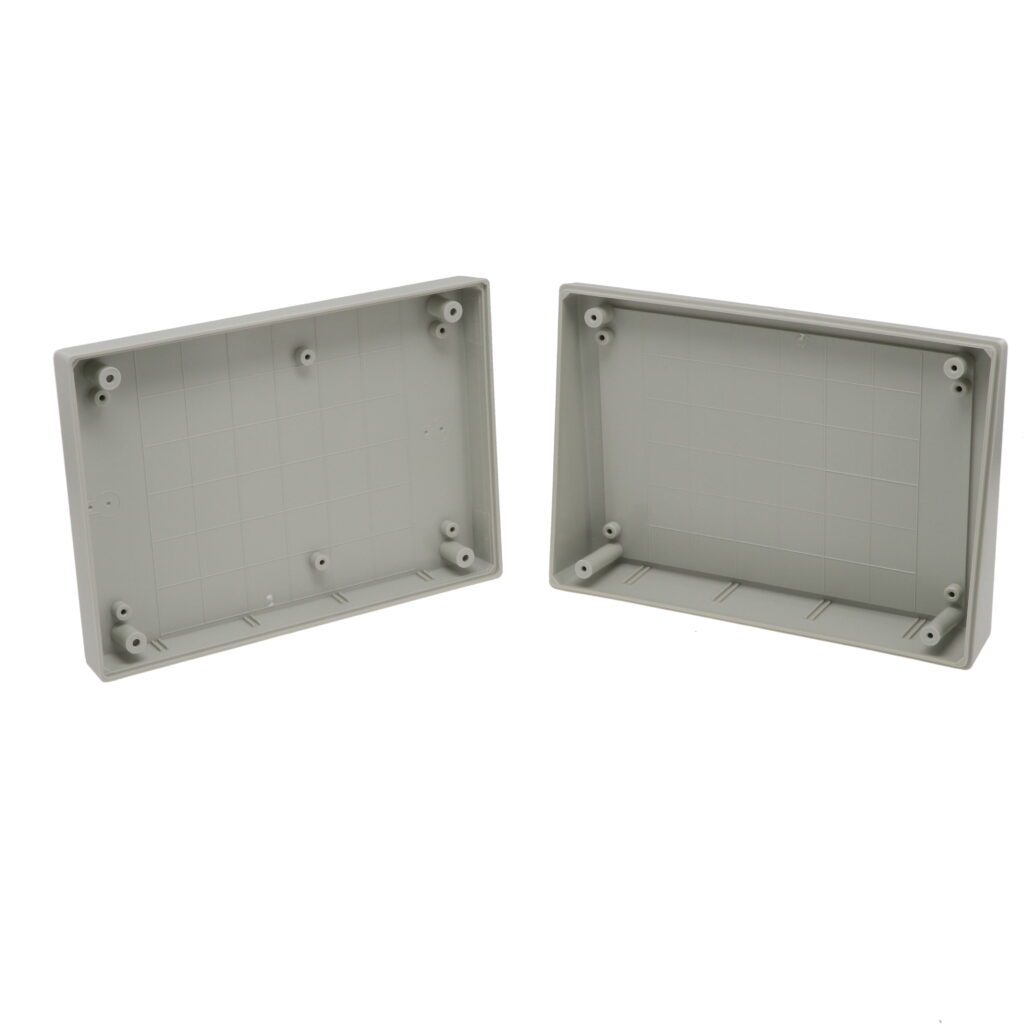

Model # PS-11502-G Plastibox Style E Series Plastic Electronic Enclosure
  • Square corners and provisions for mounting horizontal and vertical PCBs
  • ABS plastic
  • UL94-HB flammability rating
  • Suggested service temperature -40C to 80C
  • Textured body with smooth insert
  • PS-11502 models have a width of 7.44 inches and depth of 5.28 inches; PS-11505 models have the opposite dimensions
Compare Sizes and Models Check Stock / Pricing
External Size H x W x D: 2.15" x 5.28" x 7.44"
Internal Size H x W x D: 2.11" x 4.94" x 7.10"
Weight: 0.49 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-HB
Service Temperature Low: -40
Service Temperature High: 80
Bosses: Yes
hb11502.pdf hb11502.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PS-11502-B 2.15" x 5.28" x 7.44" 2.155.287.44 2.11" x 4.94" x 7.10"
PS-11502-G 2.15" x 5.28" x 7.44" 2.155.287.44 2.11" x 4.94" x 7.10"
PS-11505-B 2.15" x 7.44" x 5.28" 2.157.445.28 2.11" x 7.10" x 4.94"
PS-11505-G 2.15" x 7.44" x 5.28" 2.157.445.28 2.11" x 7.10" x 4.94"
