Plastibox Style H Plastic Electronic Enclosure PT-11664

Model # PT-11664 Plastibox Style H Series Plastic Electronic Enclosure

Rounded corners and edges
Provisions for mounting horizontal PCBs
ABS plastic UL94-5VA flammability rating
Suggested service temperature -20C to +70C
Black with textured body and textured top

Check Stock / Pricing Request Modifications Compare Sizes and Models

External Size H x W x D: 6.02" x 4.01" x 1.14"

Internal Size H x W x D: 5.52" x 3.51" x 0.92"

Weight: 0.27 lbs

Color: Black

RoHS Certified: Always Compliant

Type of Plastic: ABS

Flammability Rating: UL94-5VA

Service Temperature Low: -20

Service Temperature High: 70

Bosses: Yes

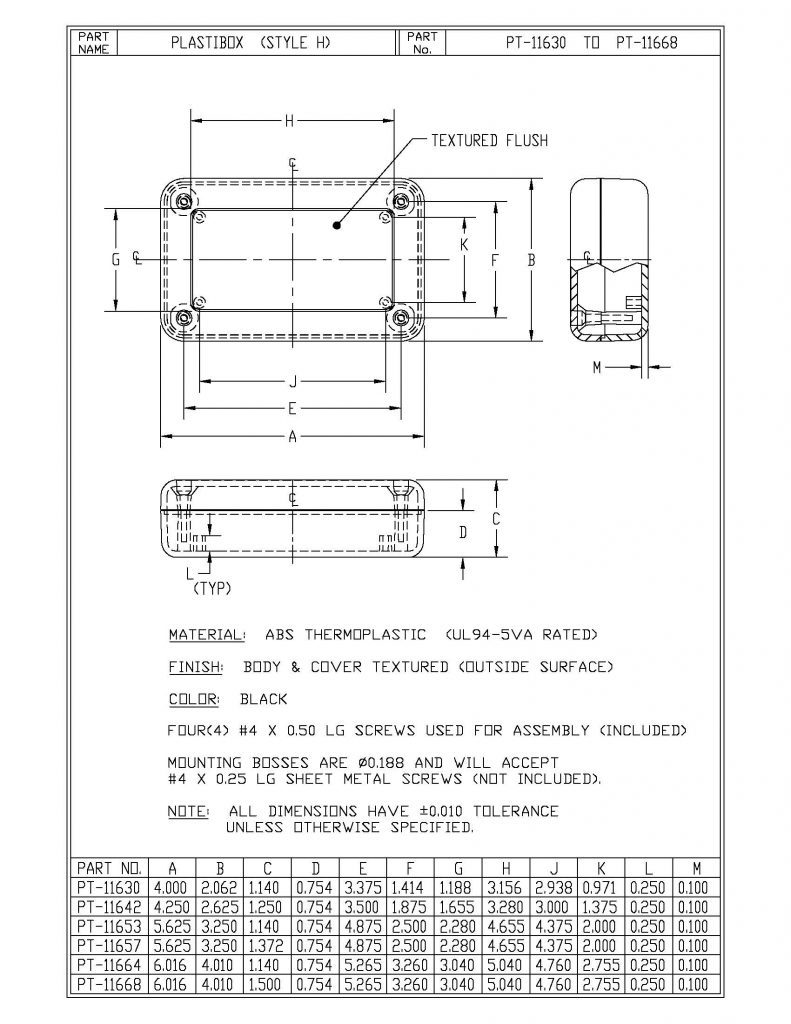

Drawing

PT-11664 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
PT-11630	4.00" x 2.03" x 1.14" 4.002.031.14	3.60" x 1.64" x 0.90"
PT-11630-MB	4.00" x 2.03" x 1.14" 4.002.031.14	3.60" x 1.64" x 0.90"
PT-11642	4.25" x 2.63" x 1.26" 4.252.631.26	3.71" x 2.09" x 1.05"
PT-11642-MB	4.25" x 2.63" x 1.26" 4.252.631.26	3.71" x 2.09" x 1.05"
PT-11653	5.63" x 3.25" x 1.15" 5.633.251.15	5.09" x 2.72" x 0.93"
PT-11653-MB	5.63" x 3.25" x 1.15" 5.633.251.15	5.09" x 2.75" x 0.93"
PT-11657	5.63" x 3.25" x 1.37" 5.633.251.37	5.09" x 2.72" x 1.16"
PT-11657-MB	5.63" x 3.25" x 1.37" 5.633.251.37	5.09" x 2.72" x 1.16"
PT-11664	6.02" x 4.01" x 1.14" 6.024.011.14	5.52" x 3.51" x 0.92"
PT-11664-MB	6.02" x 4.01" x 1.14" 6.024.011.14	5.52" x 3.51" x 0.92"
PT-11668	6.02" x 4.01" x 1.50" 6.024.011.50	5.52" x 3.51" x 1.29"
PT-11668-MB	6.02" x 4.01" x 1.50" 6.024.011.50	5.52" x 3.51" x 1.29"
PT-11670	6.50" x 2.88" x 1.13" 6.502.881.13	5.97" x 2.35" x 0.90"
PT-11670-MB	6.50" x 2.88" x 1.13" 6.502.881.13	5.97" x 2.35" x 0.90"
