Plastibox Style I Plastic Electronic Enclosure PT-11785

Model # PT-11785 Plastibox Style I Series Plastic Electronic Enclosure

Unique, contemporary styling with rounded corners and edges
Durable, self-extinguishing, ABS plastic material
UL94-5VA flammability rating
Mar resistant textured surface
Internal PCB mounting bosses
Base is securely attached to the cover with four color matched screws

Compare Sizes and Models Request Modifications Check Stock / Pricing

External Size H x W x D: 1.76" x 7.51" x 5.01"

Internal Size H x W x D: 1.55" x 6.51" x 4.77"

Weight: 0.46 lbs

Color: Black

RoHS Certified: Always Compliant

Type of Plastic: ABS

Flammability Rating: UL94-5VA

Bosses: Yes

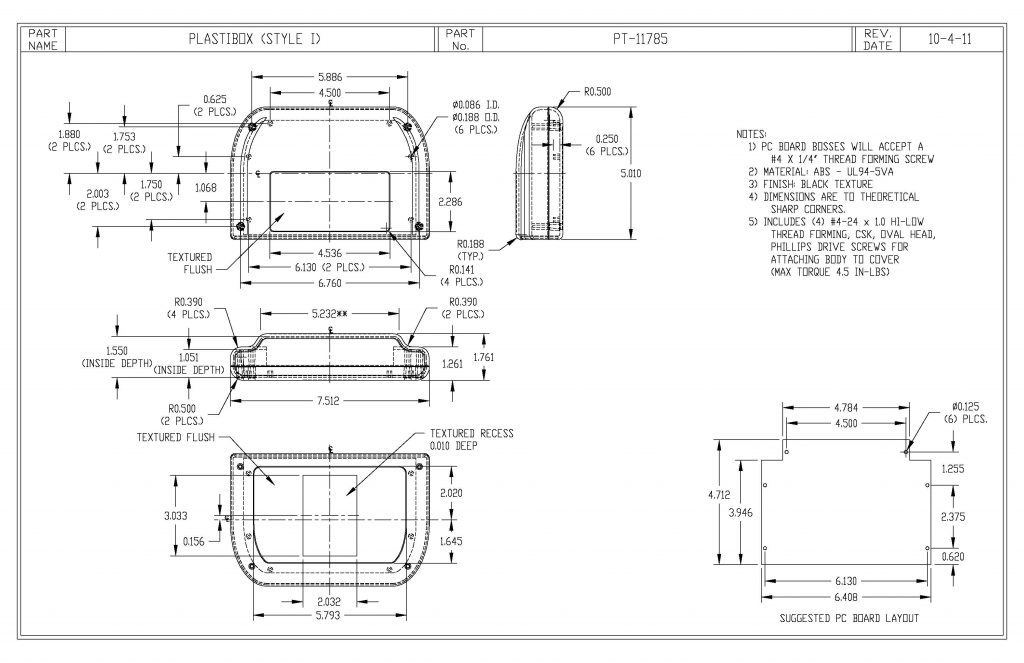

Drawing

PT-11785 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
PT-11754	1.37" x 5.51" x 4.00" 1.375.514.00	1.16" x 4.75" x 3.49"
PT-11754-DW	1.37" x 5.51" x 4.00" 1.375.514.00	1.16" x 5.29" x 3.53"
PT-11743	1.38" x 4.00" x 3.00" 1.384.003.00	1.17" x 3.25" x 2.49"
PT-11785	1.76" x 7.51" x 5.01" 1.767.515.01	1.55" x 6.51" x 4.77"
PT-11785-MP	1.76" x 7.51" x 5.01" 1.767.515.01	1.55" x 6.51" x 4.77"
