PB-1576-BF

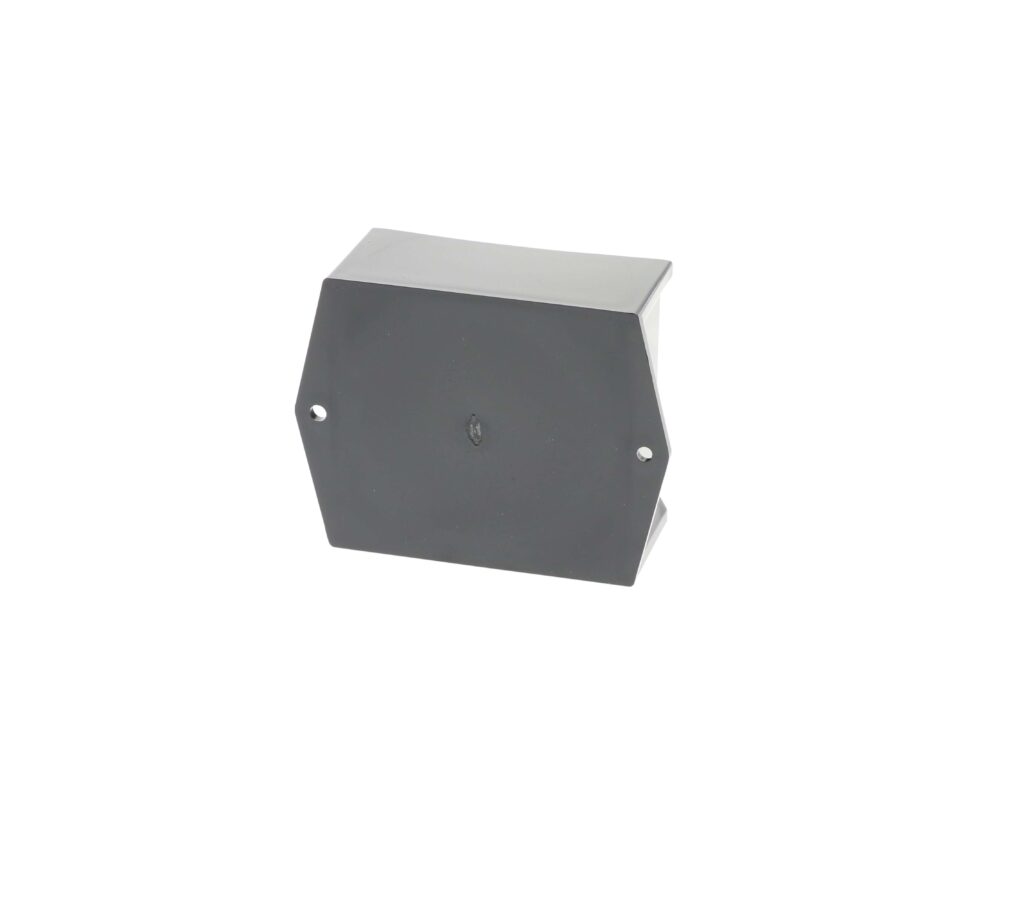

Potting Box Style C Plastic Box with Mounting Flanges PB-1576-BF
  • Potting Box Style C

Product Details

Model # PB-1576-BF Potting Box Style C Series
  • These low cost enclosures are made of tough, lightweight, ABS thermoplastic
  • Flammability rating: UL94V-0 at .07 inches
  • Suggested service temperature -20C to +70
  • Mounting flanges are at the base
  • Optional close-fitting covers are available in all sizes
  • Finish:  Smooth, Black
  • Shipped in packages of 10 pieces per catalog number



Compare Sizes and Models See Accessories Check Stock / Pricing
External Size L x W x D: 3.00" x 3.00" x 1.50"
Internal Size L x W x D: 2.89" x 2.89" x 1.41"
Weight: 0.94 lbs
Color: Black
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-V0
Service Temperature Low: -20
Service Temperature High: 70
Bosses: Yes
Mounting Style: Mounting Flanges
hb1558.pdf hb1558.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PB-1549-BF 3.32" x 3.08" x 0.88" 3.05" x 2.88" x 0.79"
PB-1576-BF 3.00" x 3.00" x 1.50" 2.89" x 2.89" x 1.41"
PB-1553-BF 3.00" x 2.00" x 0.50" 2.84" x 1.84" x 0.43"
PB-1554-BF 3.00" x 2.00" x 1.00" 2.84" x 1.83" x 0.93"
PB-1559-BF 3.00" x 2.00" x 1.50" 2.86" x 1.86" x 1.43"
PB-1574-BF 2.00" x 2.00" x 1.50" 1.88" x 1.88" x 1.43"
PB-1558-BF 2.00" x 1.50" x 1.00" 1.86" x 1.36" x 0.93"
PB-1577-BF 1.00" x 1.00" x 0.75" 0.89" x 0.89" x 0.69"
