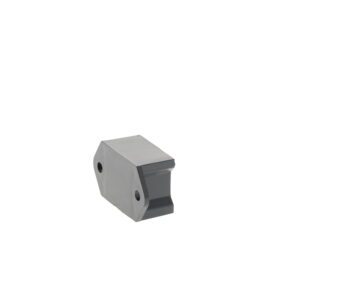

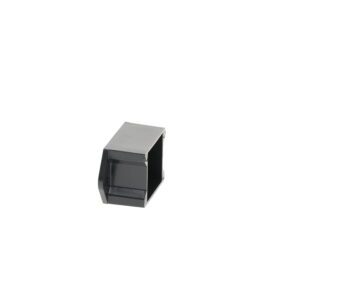

Potting Box Style C Plastic Box with Mounting Flanges PB-1577-BF

Model # PB-1577-BF Potting Box Style C Series

These low cost enclosures are made of tough, lightweight, ABS thermoplastic
Flammability rating: UL94V-0 at .07 inches
Suggested service temperature -20C to +70
Mounting flanges are at the base
Optional close-fitting covers are available in all sizes
Finish: Smooth, Black
Shipped in packages of 10 pieces per catalog number

Compare Sizes and Models See Accessories Request Modifications Check Stock / Pricing

External Size L x W x D: 1.00" x 1.00" x 0.75"

Internal Size L x W x D: 0.89" x 0.89" x 0.69"

Weight: 0.19 lbs

Color: Black

RoHS Certified: Always Compliant

Type of Plastic: ABS

Flammability Rating: UL94-V0

Service Temperature Low: -20

Service Temperature High: 70

Bosses: Yes

Mounting Style: Mounting Flanges

Drawing

PB-1577-BF Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
PB-1577-BF	1.00" x 1.00" x 0.75" 1.001.000.75	0.89" x 0.89" x 0.69"
PB-1558-BF	2.00" x 1.50" x 1.00" 2.001.501.00	1.86" x 1.36" x 0.93"
PB-1574-BF	2.00" x 2.00" x 1.50" 2.002.001.50	1.88" x 1.88" x 1.43"
PB-1553-BF	3.00" x 2.00" x 0.50" 3.002.000.50	2.84" x 1.84" x 0.43"
PB-1554-BF	3.00" x 2.00" x 1.00" 3.002.001.00	2.84" x 1.83" x 0.93"
PB-1559-BF	3.00" x 2.00" x 1.50" 3.002.001.50	2.86" x 1.86" x 1.43"
PB-1576-BF	3.00" x 3.00" x 1.50" 3.003.001.50	2.89" x 2.89" x 1.41"
PB-1549-BF	3.32" x 3.08" x 0.88" 3.323.080.88	3.05" x 2.88" x 0.79"
