PW-12847-TMB

PW Series UL94-5VA ABS Enclosure PW-12847-TMB

Product Details

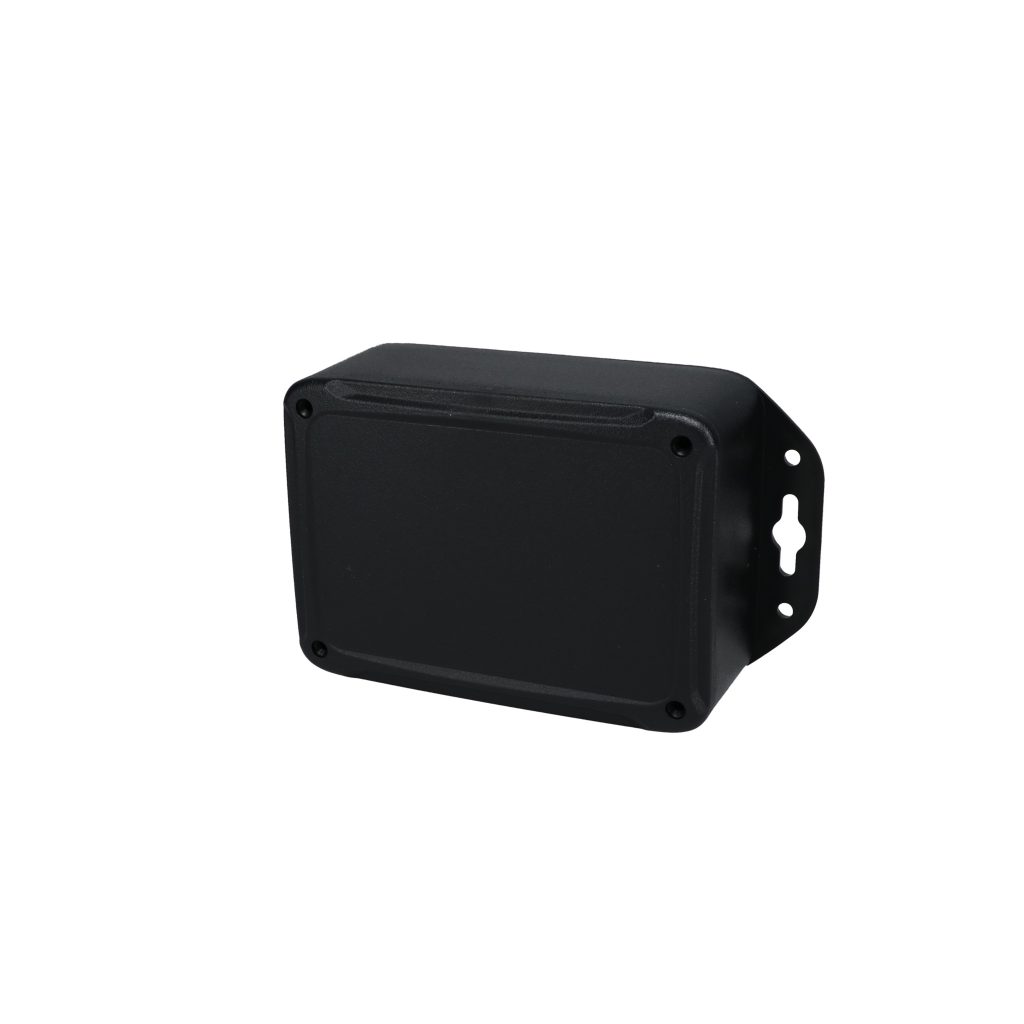

Model # PW-12847-TMB PW Series UL94-5VA ABS Plastic Enclosure
  • Made from black ABS plastic
  • Meets both UL94-5VA and UL94-V0 flammability ratings
  • Designed for indoor use
  • Stylish rounded design
  • PCB mounting bosses in base
  • Thread-forming cover screws
  • Textured area on cover for mar-resistant finish
  • With molded mounting flanges
Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 5.25" x 3.75" x 1.97"
Internal Size L x W x D: 5.05" x 3.55" x 1.77"
Weight: 0.36 lbs
Color: Black
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-5A
Bosses: Yes

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PW-12848-TMB 4.00" x 4.00" x 1.85" 4.004.001.85 3.80" x 3.80" x 1.65"
PW-12848 4.00" x 4.00" x 1.85" 4.004.001.85 3.80" x 3.80" x 1.65"
PW-12848-T 4.00" x 4.00" x 1.85" 4.004.001.85 3.80" x 3.80" x 1.65"
PW-12848-MB 4.00" x 4.00" x 1.85" 4.004.001.85 3.80" x 3.80" x 1.65"
PW-12846-T 4.50" x 3.38" x 1.85" 4.503.381.85 4.30" x 3.18" x 1.65"
PW-12846-MB 4.50" x 3.38" x 1.85" 4.503.381.85 4.30" x 3.18" x 1.65"
PW-12846-TMB 4.50" x 3.38" x 1.85" 4.503.381.85 4.30" x 3.18" x 1.65"
PW-12846 4.50" x 3.38" x 1.85" 4.503.381.85 4.30" x 3.18" x 1.65"
PW-12847-MB 5.25" x 3.75" x 1.97" 5.253.751.97 5.05" x 3.55" x 1.77"
PW-12847 5.25" x 3.75" x 1.97" 5.253.751.97 5.05" x 3.55" x 1.77"
PW-12847-TMB 5.25" x 3.75" x 1.97" 5.253.751.97 5.05" x 3.55" x 1.77"
PW-12847-T 5.25" x 3.75" x 1.97" 5.253.751.97 5.05" x 3.55" x 1.77"
PW-12849-T 6.00" x 4.38" x 1.97" 6.004.381.97 5.80" x 4.18" x 1.77"
PW-12849-MB 6.00" x 4.38" x 1.97" 6.004.381.97 5.80" x 4.18" x 1.77"
PW-12849-TMB 6.00" x 4.38" x 1.97" 6.004.381.97 5.80" x 4.18" x 1.77"
PW-12849 6.00" x 4.38" x 1.97" 6.004.381.97 5.80" x 4.18" x 1.77"
PW-12850-T 7.25" x 5.00" x 2.22" 7.255.002.22 7.05" x 4.80" x 2.02"
PW-12850 7.25" x 5.00" x 2.22" 7.255.002.22 7.05" x 4.80" x 2.02"
PW-12850-MB 7.25" x 5.00" x 2.22" 7.255.002.22 7.05" x 4.80" x 2.02"
PW-12850-TMB 7.25" x 5.00" x 2.22" 7.255.002.22 7.05" x 4.80" x 2.02"
