TBG-32614-W

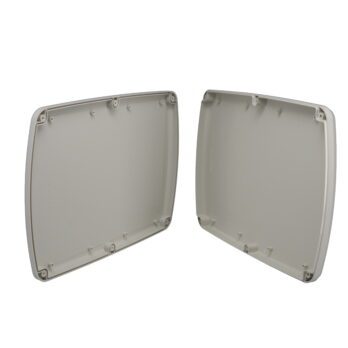

Tablet Enclosure for 10.4-Inch Display with Gasket White TBG-32614-W
  • Tablet Enclosure

Product Details

Model # TBG-32614-W TB and TBG Series Tablet Enclosures
  • Enclosure may be used for tablet, LCD display, or touch-screen use in portable, desktop or wall-mount applications
  • Designed for a 10.4 inch LCD or touch screen display
  • Molded of high-impact ABS plastic, flame retardant to UL94-V0
  • Lid and base incorporate a tongue-and-groove sealing design
  • Silicon sponge gasket seals enclosure to IP65 for water and dust protection
  • Add-on rubber feet are included
Compare Sizes and Models Check Stock / Pricing
External Size L x W x D: 12.68" x 9.13" x 1.18"
Weight: 1.4 lbs
Color: White
Type of Plastic: ABS
Flammability Rating: UL94-V0
Service Temperature Low: -20
Service Temperature High: 80
Gasketed: Yes
hb32614.pdf hb32614.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Gasketed
TB-32613-B 10.98" x 8.11" x 1.18" 10.988.111.18 " x " x " No
TB-32613-W 10.98" x 8.11" x 1.18" 10.988.111.18 " x " x " No
TBG-32613-W 10.98" x 8.11" x 1.18" 10.988.111.18 " x " x " Yes
TBG-32613-B 10.98" x 8.11" x 1.18" 10.988.111.18 " x " x " Yes
TB-32614-W 12.68" x 9.13" x 1.18" 12.689.131.18 " x " x " No
TB-32614-B 12.68" x 9.13" x 1.18" 12.689.131.18 " x " x " No
TBG-32614-W 12.68" x 9.13" x 1.18" 12.689.131.18 " x " x " Yes
TBG-32614-B 12.68" x 9.13" x 1.18" 12.689.131.18 " x " x " Yes
TB-32610-B 3.97" x 5.51" x 1.18" 3.975.511.18 " x " x " No
TB-32610-W 3.97" x 5.51" x 1.18" 3.975.5121.181 " x " x " No
TBG-32610-W 3.97" x 5.51" x 1.18" 3.975.5121.181 " x " x " Yes
TBG-32610-B 3.97" x 5.51" x 1.18" 3.975.5121.181 " x " x " Yes
TB-32611-B 7.48" x 5.91" x 1.18" 7.485.911.18 " x " x " No
TB-32611-W 7.48" x 5.91" x 1.18" 7.485.911.18 " x " x " No
TBG-32611-W 7.48" x 5.91" x 1.18" 7.485.911.18 " x " x " Yes
TBG-32611-B 7.48" x 5.91" x 1.18" 7.485.911.18 " x " x " Yes
TB-32612-B 8.70" x 6.34" x 1.18" 8.706.341.18 " x " x " No
TB-32612-W 8.70" x 6.34" x 1.18" 8.706.341.18 " x " x " No
TBG-32612-W 8.70" x 6.34" x 1.18" 8.706.341.18 " x " x " Yes
TBG-32612-B 8.70" x 6.34" x 1.18" 8.706.341.18 " x " x " Yes
