TB-32611-B

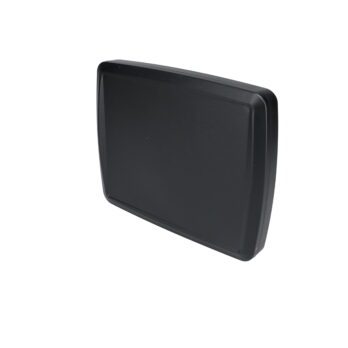

Tablet Enclosure for 5.7-Inch Display Black TB-32611-B
5 Day Modifications
  • Tablet Enclosure

Product Details

Model # TB-32611-B TB and TBG Series Tablet Enclosures
  • Enclosure may be used for tablet, LCD display, or touch-screen use in portable, desktop or wall-mount applications
  • Designed for a 5.7 inch LCD or touch screen display
  • Molded of high-impact ABS plastic, flame retardant to UL94-HB
  • Lid and base incorporate a tongue-and-groove sealing design
  • Optional silicon sponge gasket can be ordered separately and installed to upgrade to an IP65 sealed enclosure
  • Or order model TBG-32611-B that includes the silicon sponge gasket
  • Add-on rubber feet are included
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 7.48" x 5.91" x 1.18"
Weight: 0.03 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-HB
Service Temperature Low: -20
Service Temperature High: 80
Gasketed: No

Drawing

TB-32611-B Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Gasketed
TBG-32613-B 10.98" x 8.11" x 1.18" 10.988.111.18 Yes
TBG-32613-W 10.98" x 8.11" x 1.18" 10.988.111.18 Yes
TB-32613-W 10.98" x 8.11" x 1.18" 10.988.111.18 No
TB-32613-B 10.98" x 8.11" x 1.18" 10.988.111.18 No
TBG-32614-B 12.68" x 9.13" x 1.18" 12.689.131.18 Yes
TBG-32614-W 12.68" x 9.13" x 1.18" 12.689.131.18 Yes
TB-32614-B 12.68" x 9.13" x 1.18" 12.689.131.18 No
TB-32614-W 12.68" x 9.13" x 1.18" 12.689.131.18 No
TB-32610-B 3.97" x 5.51" x 1.18" 3.975.511.18 No
TBG-32610-B 3.97" x 5.51" x 1.18" 3.975.5121.181 Yes
TBG-32610-W 3.97" x 5.51" x 1.18" 3.975.5121.181 Yes
TB-32610-W 3.97" x 5.51" x 1.18" 3.975.5121.181 No
TB-32611-W 7.48" x 5.91" x 1.18" 7.485.911.18 No
TB-32611-B 7.48" x 5.91" x 1.18" 7.485.911.18 No
TBG-32611-W 7.48" x 5.91" x 1.18" 7.485.911.18 Yes
TBG-32611-B 7.48" x 5.91" x 1.18" 7.485.911.18 Yes
TB-32612-W 8.70" x 6.34" x 1.18" 8.706.341.18 No
TB-32612-B 8.70" x 6.34" x 1.18" 8.706.341.18 No
TBG-32612-W 8.70" x 6.34" x 1.18" 8.706.341.18 Yes
TBG-32612-B 8.70" x 6.34" x 1.18" 8.706.341.18 Yes
