TR-6102

Small Metal Case TR-6102

Product Details

Model # TR-6102 TR Series Small Metal Cases
  • Top and bottom, 0.05 inch aluminum; front panel, 0.09 inch aluminum
  • Extruded aluminum frame
  • Corner gussets for added support
  • Carrying handle may be used as tilting bail
  • Front panel, self-adhesive rubber feet and handle/bail included
  • Since chassis is reversible, two configurations are possible with one unit
  • Top and bottom easily removed for access to dust-free interior
  • Will accommodate an accessory chassis or 0.06 inch thick P.C. boards.
Compare Sizes and Models Check Stock / Pricing
External Size H x W x D: 7.00" x 11.06" x 13.25"
Internal Size H x W x D: 6.50" x 10.58" x 12.50"
Weight: 7.0 lbs
Color: Royal Blue Textured Body / White Frame & Bail
hb6100.pdf hb6100.dxf

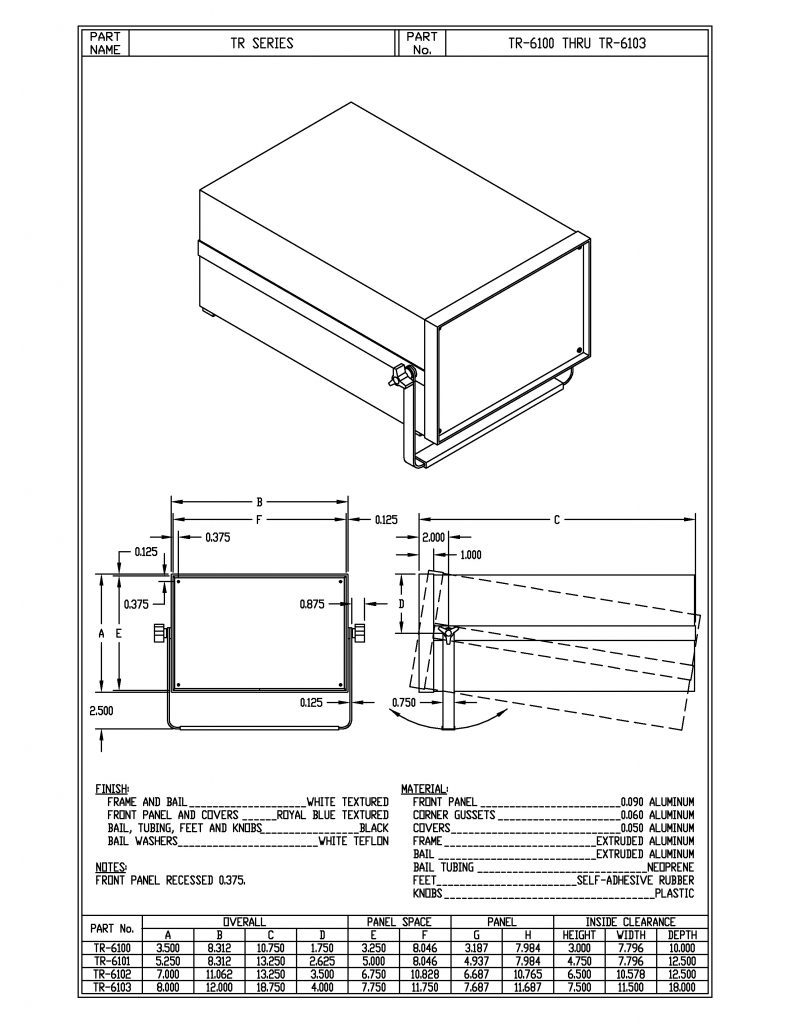

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
TR-6100 3.50" x 8.31" x 10.75" 3.508.3110.75 3.00" x 7.80" x 10.00"
TR-6101 5.25" x 8.31" x 13.25" 5.258.3113.25 4.75" x 7.80" x 12.50"
TR-6102 7.00" x 11.06" x 13.25" 7.0011.0613.25 6.50" x 10.58" x 12.50"
TR-6103 8.00" x 12.00" x 18.75" 8.0012.0018.75 7.50" x 11.50" x 18.00"
