CUR-3296

Utilibox Style B Plastic Utility Box with Recessed Cover CUR-3296

Product Details

Model # CUR-3296 Utilibox Style B Series Utility Boxes
  • 0.10 inch deep recessed area in cover
  • ABS Plastic
  • Flammability rating of UL94-5VA
  • Suggested service temperature of -20 degrees C to +70 degrees C
  • Comes with close fitting interlocking lid and assembly hardware
  • Textured finish
Compare Sizes and Models Check Stock / Pricing
External Size L x W x D: 8.32" x 5.07" x 1.50"
Internal Size L x W x D: 7.99" x 4.97" x 1.47"
Weight: 0.35 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-5VA
Service Temperature Low: -20
Service Temperature High: 70
Recessed Top: With Recessed Top
hbcur3296.pdf hbcur3296.dxf

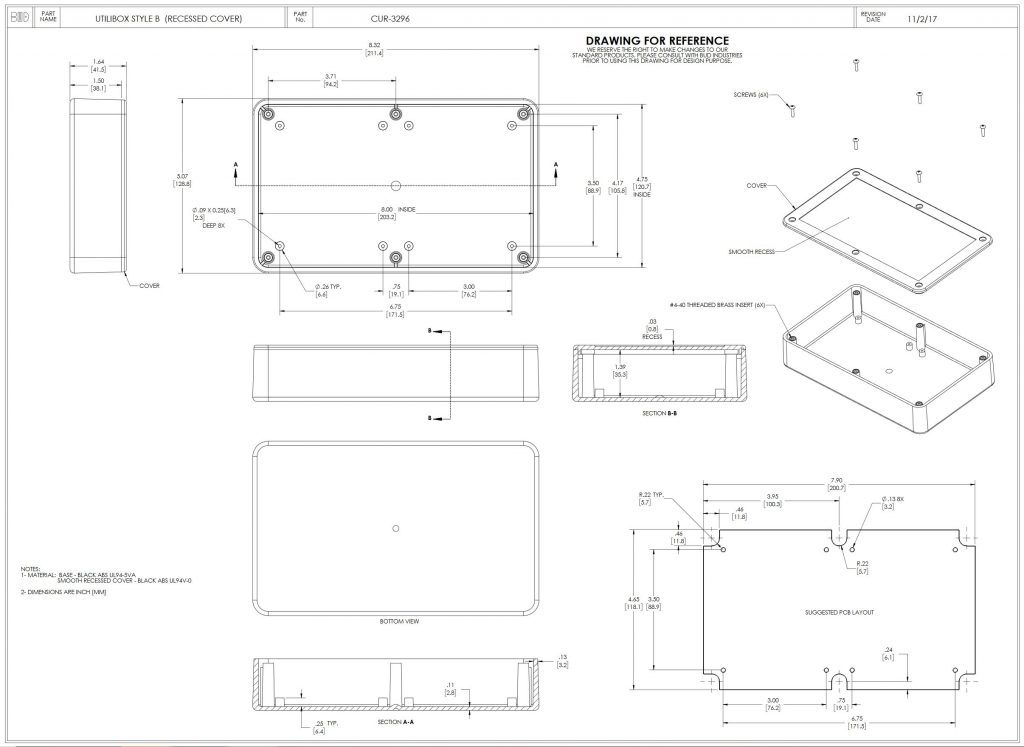

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Mounting Style
CU-3295 8.32" x 5.07" x 1.50" 8.325.071.50 7.99" x 4.97" x 1.47"
CU-3295-MB 8.32" x 5.07" x 1.50" 8.325.071.50 7.99" x 4.97" x 1.47" Mounting Flanges
CUR-3296 8.32" x 5.07" x 1.50" 8.325.071.50 7.99" x 4.97" x 1.47"
CUR-3296-MB 8.32" x 5.07" x 1.50" 8.325.071.50 7.99" x 4.97" x 1.47" Mounting Flanges
CU-3297 8.32" x 5.07" x 1.50" 8.325.071.50 7.99" x 4.97" x 1.47"
CUR-3298 8.32" x 5.07" x 1.50" 8.325.071.50 7.99" x 4.97" x 1.47"
