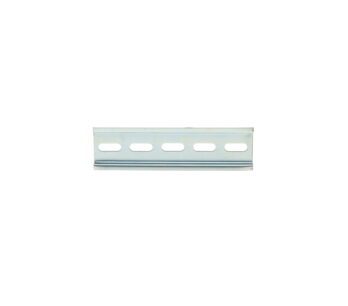

• Standard 35 mm DIN rail
• 1 mm (0.040″) thick galvanized steel
• All DRX DIN rails include 2 (#8-16 X 5/16) galvanized steel screws and 2 stainless steel washers (#8 ,0.050″)
• Standard 18 mm slots spaced 25 mm on center (starting about 4 mm from the edge)
• Multiple pre-cut sizes can be used with many Bud products
• Can be mounted parallel to the long or short inner side of enclosure
• Dimensions (inches) 3.9 x 1.3 x 0.3
• Weight (pounds) 0.06
