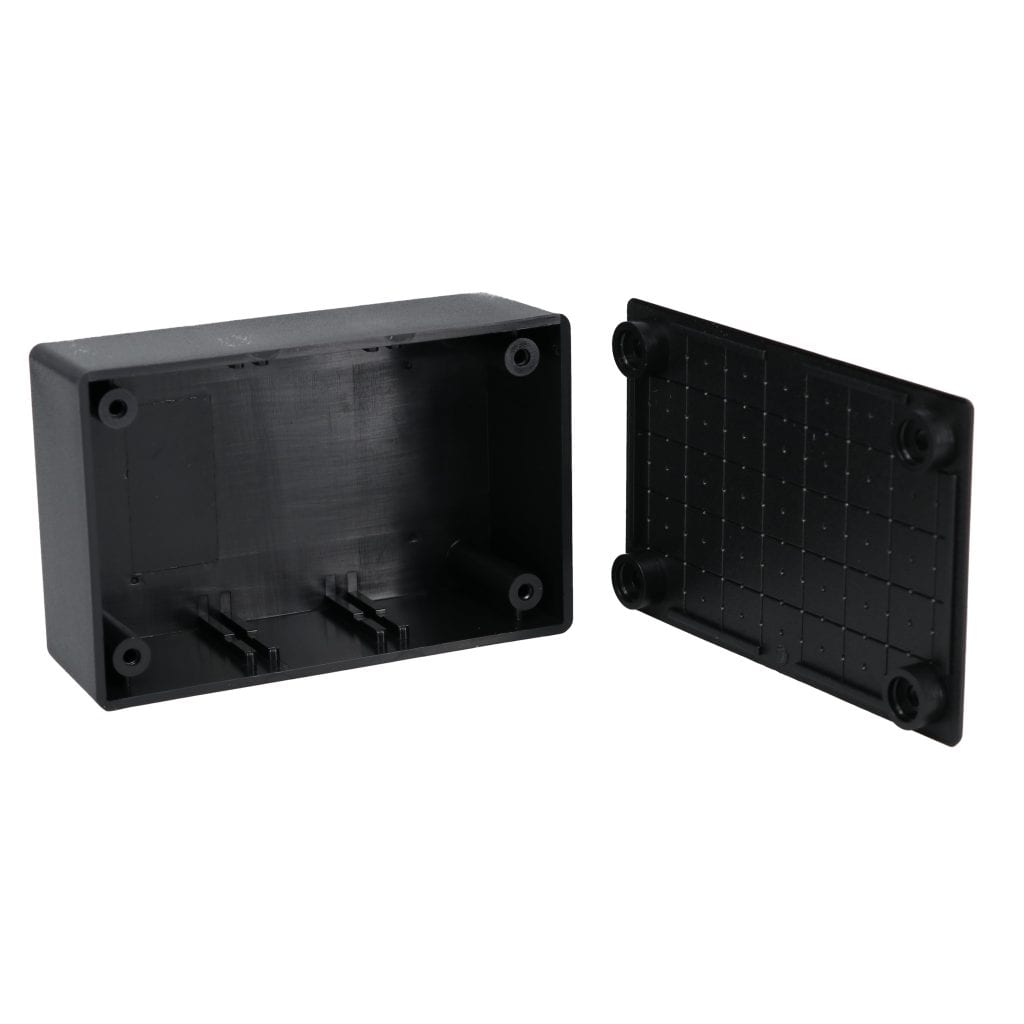

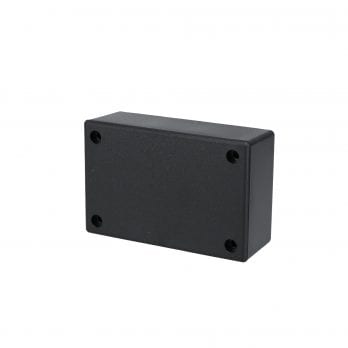

Name: Utilibox Style J Plastic Utility Box CU-1941
Brand: Bud Industries
Availability: InStock

Utilibox Style J Plastic Utility Box CU-1941

External Size L x W x D: 3.27" x 2.13" x 1.20"

Internal Size L x W x D: 3.10" x 1.96" x 1.06"

Weight: 0.08 lbs

Color: Black

Type of Plastic: ABS

Flammability Rating: UL94-HB

Service Temperature Low: -40

Service Temperature High: 80

Drawing

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions	Mounting Style
CU-1941	3.27" x 2.13" x 1.20" 3.272.131.20	3.10" x 1.96" x 1.06"
CU-1941-MB	3.27" x 2.13" x 1.20" 3.272.131.20	3.10" x 1.96" x 1.06"	Mounting Flanges
CU-1943	5.12" x 2.68" x 1.71" 5.122.681.71	4.88" x 2.43" x 1.54"
CU-1943-MB	5.12" x 2.68" x 1.71" 5.122.681.71	4.88" x 2.43" x 1.54"	Mounting Flanges
CU-1945	6.21" x 3.76" x 2.09" 6.213.762.09	5.93" x 3.47" x 1.87"
CU-1945-MB	6.21" x 3.76" x 2.09" 6.213.762.09	5.93" x 3.47" x 1.87"	Mounting Flanges
CU-1947	7.77" x 4.45" x 2.48" 7.774.452.48	7.44" x 4.12" x 2.26"
CU-1947-MB	7.77" x 4.45" x 2.48" 7.774.452.48	7.44" x 4.12" x 2.26"	Mounting Flanges
