CU-1947

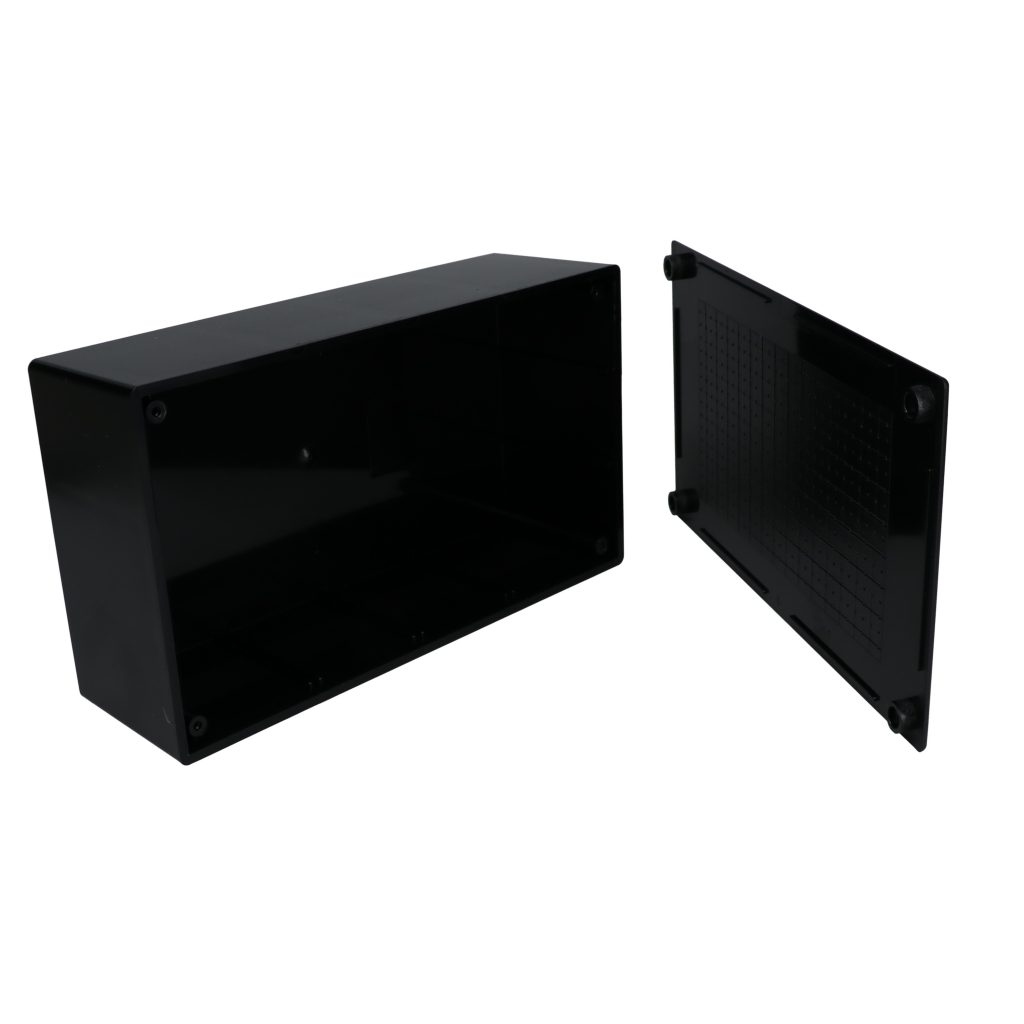

Utilibox Style J Plastic Utility Box CU-1947

Product Details

Model # CU-1947 Utilibox Style J Series Utility Boxes
  • ABS plastic, UL94-HB flammability rating
  •  Internal PCB card guides accept both horizontal and vertical boards
  •  Grid pattern on underside of cover for modification reference points
  • Textured finish
Compare Sizes and Models Check Stock / Pricing
External Size L x W x D: 7.77" x 4.45" x 2.48"
Internal Size L x W x D: 7.44" x 4.12" x 2.26"
Weight: 0.57 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-HB
Service Temperature Low: -40
Service Temperature High: 80
hbcu1941mb.pdf hbcu1941.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Mounting Style
CU-1941 3.27" x 2.13" x 1.20" 3.272.131.20 3.10" x 1.96" x 1.06"
CU-1941-MB 3.27" x 2.13" x 1.20" 3.272.131.20 3.10" x 1.96" x 1.06" Mounting Flanges
CU-1943 5.12" x 2.68" x 1.71" 5.122.681.71 4.88" x 2.43" x 1.54"
CU-1943-MB 5.12" x 2.68" x 1.71" 5.122.681.71 4.88" x 2.43" x 1.54" Mounting Flanges
CU-1945 6.21" x 3.76" x 2.09" 6.213.762.09 5.93" x 3.47" x 1.87"
CU-1945-MB 6.21" x 3.76" x 2.09" 6.213.762.09 5.93" x 3.47" x 1.87" Mounting Flanges
CU-1947 7.77" x 4.45" x 2.48" 7.774.452.48 7.44" x 4.12" x 2.26"
CU-1947-MB 7.77" x 4.45" x 2.48" 7.774.452.48 7.44" x 4.12" x 2.26" Mounting Flanges
