CU-1951

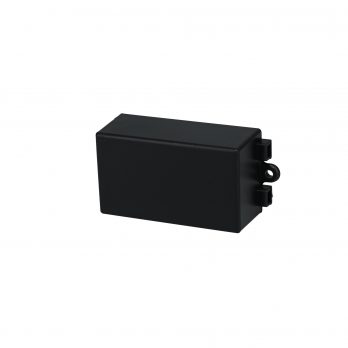

Utilibox Style K Plastic Utility Box CU-1951

Product Details

Model # CU-1951 Utilibox Style K Series Utility Boxes
  •   ABS plastic, UL94-HB flammability rating
  •   Press-fit cover, and molded-in wire entry points
  •   Molded-in external wall/panel mounting tabs
Compare Sizes and Models Request Modifications Check Stock / Pricing
External Size L x W x D: 2.56" x 1.50" x 1.05"
Internal Size L x W x D: 2.38" x 1.32" x 0.91"
Weight: 0.05 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-HB
Service Temperature Low: -40
Service Temperature High: 80
Number of Cable Entry Ways: 3
Mounting Style: Mounting Flanges
hb1951.pdf hb1951.dxf file/d/1Syk6BYwqUsCm-KpAFN_qqfaMnWU1H1Ay/view?usp=drivesdk

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CU-1950 2.56" x 1.50" x 0.85" 2.561.500.85 2.38" x 1.32" x 0.72"
CU-1951 2.56" x 1.50" x 1.05" 2.561.501.05 2.38" x 1.32" x 0.91"
CU-1952 2.83" x 1.73" x 0.85" 2.831.730.85 2.66" x 1.56" x 0.72"
CU-1953 2.83" x 1.73" x 1.05" 2.831.731.05 2.66" x 1.56" x 0.91"
CU-1954 3.23" x 2.24" x 1.33" 3.232.241.33 3.03" x 2.04" x 1.14"
CU-1955 3.48" x 2.69" x 1.37" 3.482.691.37 3.28" x 2.49" x 1.16"
