Utility Cabinet AU-1029

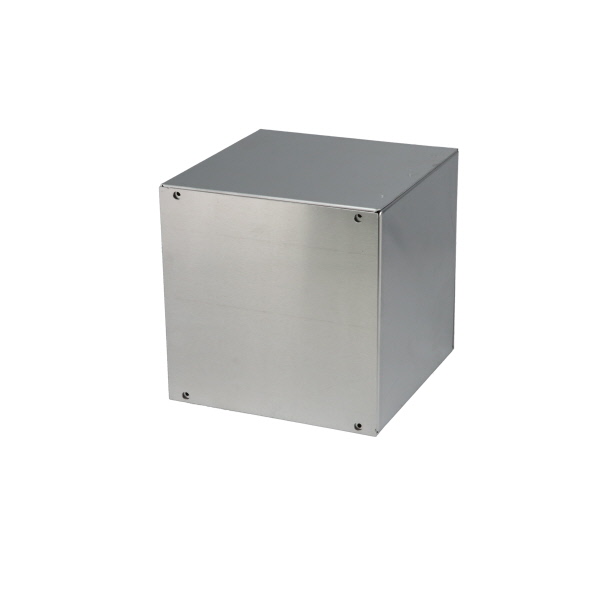

Model # AU-1029 Utility Cabinet AU Series Enclosure

0.04 inch aluminum
Sturdy, all-welded body
Economical cabinets have removable front and back panels
For the same cabinet in 20 gauge steel, see CU-729

Compare Sizes and Models Request Modifications Check Stock / Pricing

External Size L x W x D: 6.00" x 5.00" x 4.00"

Internal Size L x W x D: 5.25" x 4.25" x 3.92"

Weight: 0.75 lbs

Color: Natural

Drawing

AU-1029 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
AU-1083	4.00" x 4.00" x 2.00" 4.004.002.00	3.25" x 3.25" x 1.92"
AU-1083-MG	4.00" x 4.00" x 2.00" 4.004.002.00	3.25" x 3.25" x 1.92"
AU-1028	5.00" x 4.00" x 3.00" 5.004.003.00	4.25" x 3.25" x 2.92"
AU-1028-MG	5.00" x 4.00" x 3.00" 5.004.003.00	4.25" x 3.25" x 2.92"
AU-1029	6.00" x 5.00" x 4.00" 6.005.004.00	5.25" x 4.25" x 3.92"
AU-1029-MG	6.00" x 5.00" x 4.00" 6.005.004.00	5.25" x 4.25" x 3.92"
AU-1039	6.00" x 6.00" x 6.00" 6.006.006.00	5.00" x 5.00" x 5.92"
AU-1039-MG	6.00" x 6.00" x 6.00" 6.006.006.00	5.00" x 5.00" x 5.92"
AU-1040	9.00" x 6.00" x 5.00" 9.006.005.00	8.00" x 5.00" x 4.92"
AU-1040-MG	9.00" x 6.00" x 5.00" 9.006.005.00	8.00" x 5.00" x 4.92"
